Dimensions: Main Unit with Wall-Direct Mounting Kit
Neosensor
Notes:
1 For wiring, secure more than 15 mm clearance inside the mounting surface when installing Neosensor with Wall-direct mounting kit.
2 Models HY7043D (humidity sensor model) and TY7043D (temperature sensor model) has two wires as shown in the above figure.
Model HTY7043D (temperature/humidity sensor model) has four lead wires.

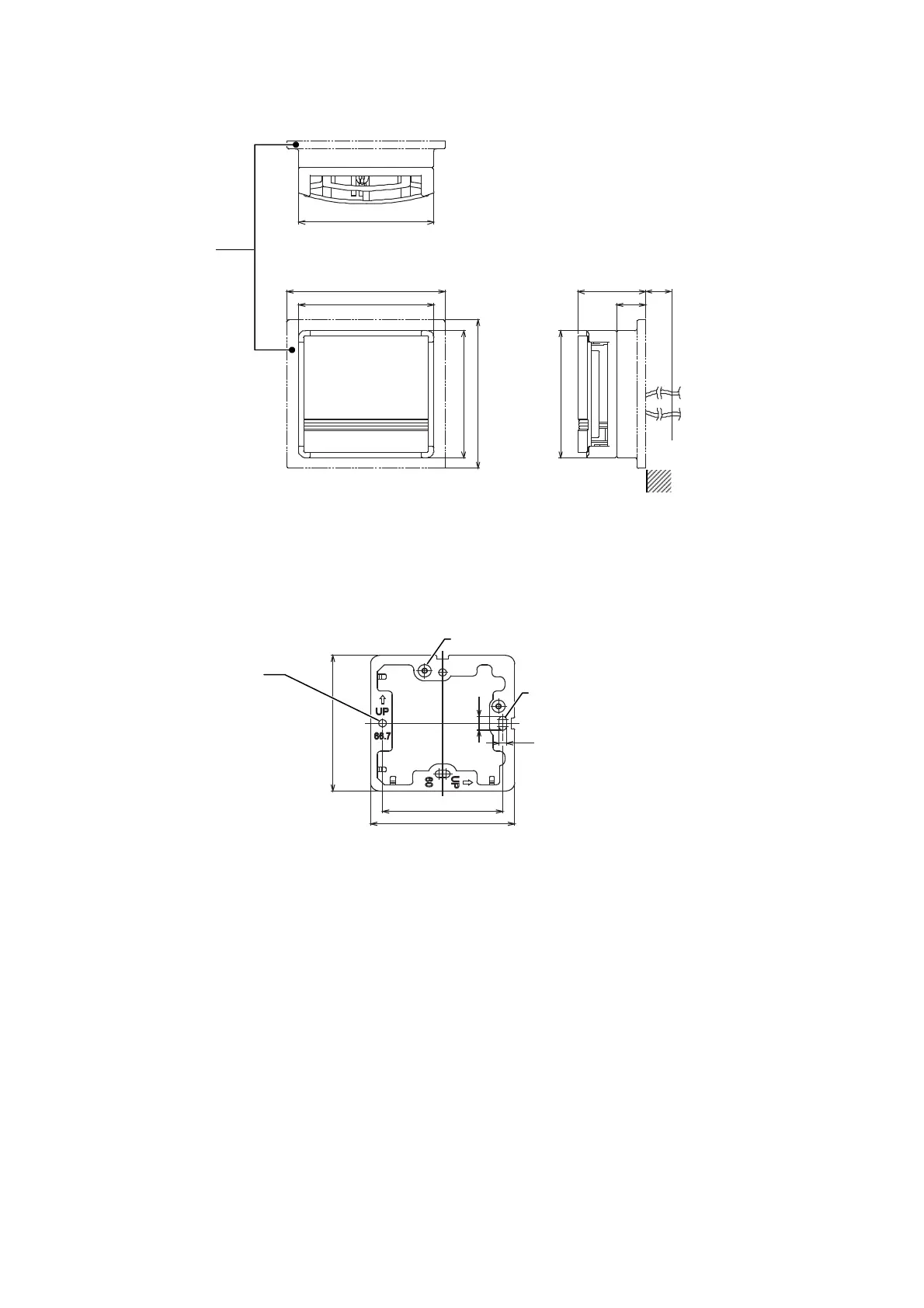

Figure 1. Mounting dimensions (mm): Neosensor with Wall-direct mounting kit
Mounting plate
Note:
1 Use JIS outlet box/box cover (JIS C8340:1999) with 66.7 mm mounting dimension.
Figure 2. Dimensions (mm): Mounting plate of Wall-direct mounting kit
80
8.2
4.2
66.7*
1
80
4.2 mounting hole
Mounting screw (M3)
Mounting hole
Wall-direct mounting kit
77
90
77
77 90 77
38.5 15*
1
16.5
Mounting
surface
Lead wires*
2
