Installation steps: Neosensor directly on a wall with Wall-direct mounting kit

1) Attach the mounting plate of the Wall-direct mounting kit to the outlet box cover (JIS C8340:1999 Boxes and box covers for

rigid metal conduits (mounting dimension: 66.7 mm)) on the mounting surface.

2) Attach the main unit of the Wall-direct mounting kit to the mounting plate. (See Fig. 7.)

3) Connect the lead wires of the Neosensor to the external wires (from the load). (See Fig. 15.)

Note: The number of the lead wires differs depending on the models.

Models HY7043D (humidity sensor model) and TY7043D (temperature sensor model): 2 lead wires,

Model HTY7043D (temperature/humidity sensor model): 4 lead wires

4) Remove the cover of Neosensor as shown in Fig. 9, and check that the depth change levers on the bilateral sides of the

Neosensor main unit are set at the upper position (indicated with "L" shown in Fig. 12). Then, mount the main unit of

Neosensor on the main unit of the Wall-direct mounting kit with the 4 mounting screws (M3  16) supplied with Neosensor.

5) Attach the cover back to the Neosensor main unit and complete the installation. (See Fig. 9.)

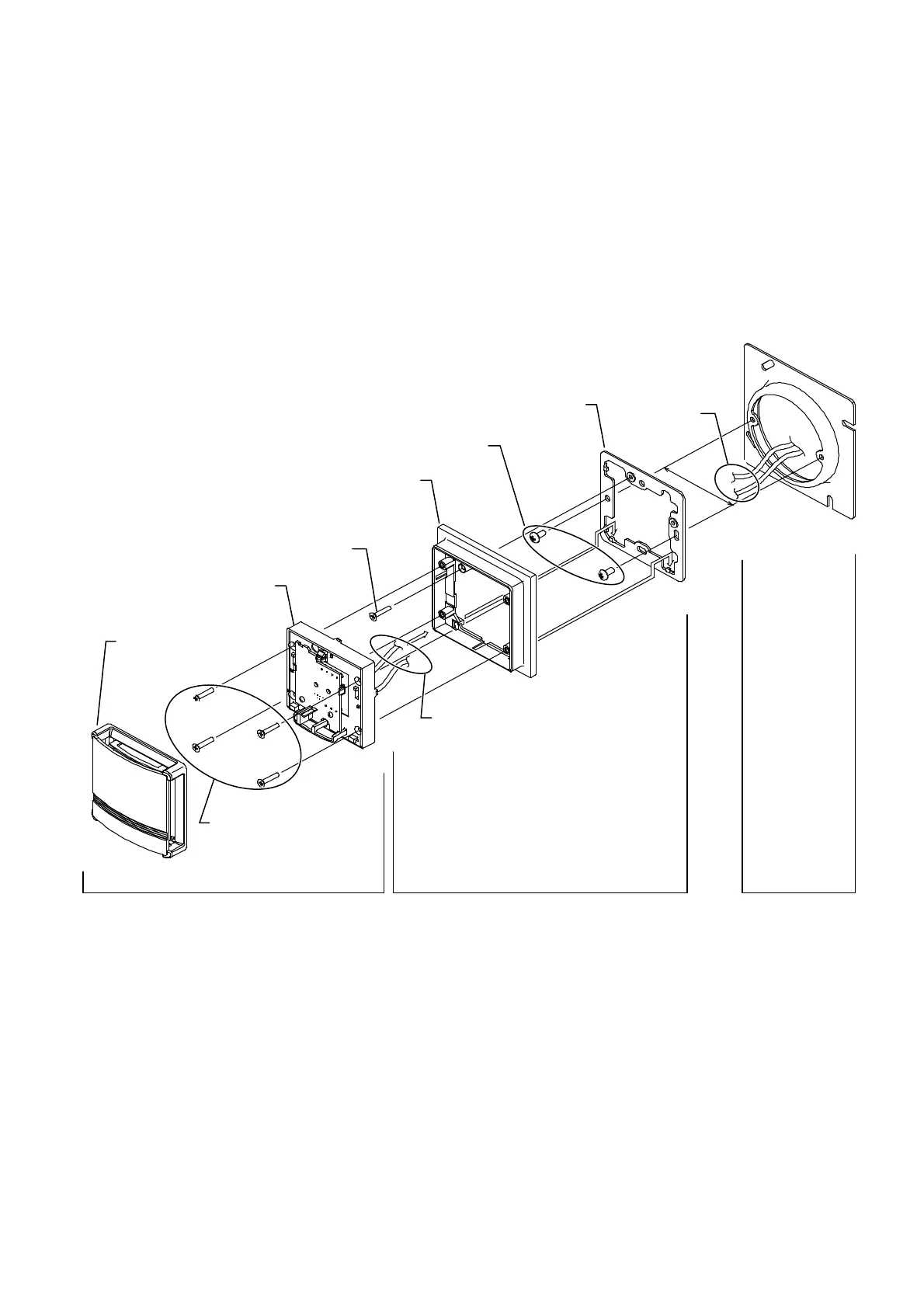

Figure 5. Installation: Neosensor with Wall-direct mounting kit

66.7 mm

External wires

from the load

Mounting plate

of Wall-direct mounting kit

2 pan-head machine screws (M4



of Wall-direct mounting kit

Main unit

of Wall-direct mounting kit

Lead wires of Neosensor

1 flat-head machine screw (M3  16)

of Wall-direct mounting kit

Main unit of Neosensor

4 flat-head machine screws

(M3  16) of Neosensor

Cover of Neosensor

Neosensor

Wall-direct mounting kit

(optional)

Mounting box cover (JIS C8340

with 66.7 mm mounting dimension,

commercially available)

Azbil TY7043D User Manual
