AB-7051
10
Installation steps: Neosensor on the Thermoplate for open wiring with Wall-direct mounting kit
1) Attach the mounting plate of the Wall-direct mounting kit to the Thermoplate for open wiring on the mounting surface.
2) Attach the main unit of the Wall-direct mounting kit to the mounting plate. (See Fig. 7.)
3) Connect the lead wires of the Neosensor to the external wires (from the load). (See Fig. 15.)
Note: The number of the lead wires differs depending on the models.
Models HY7043D (humidity sensor model) and TY7043D (temperature sensor model): 2 lead wires,
Model HTY7043D (temperature/humidity sensor model): 4 lead wires
4) Remove the cover of Neosensor as shown in Fig. 9, and check that the depth change levers on the bilateral sides of the
Neosensor main unit are set at the upper position (indicated with "L" shown in Fig. 12). Then, mount the main unit of
Neosensor on the main unit of the Wall-direct mounting kit with the 4 mounting screws (M3 16) supplied with Neosensor.
5) Attach the cover back to the Neosensor main unit and complete the installation. (See Fig. 9.)

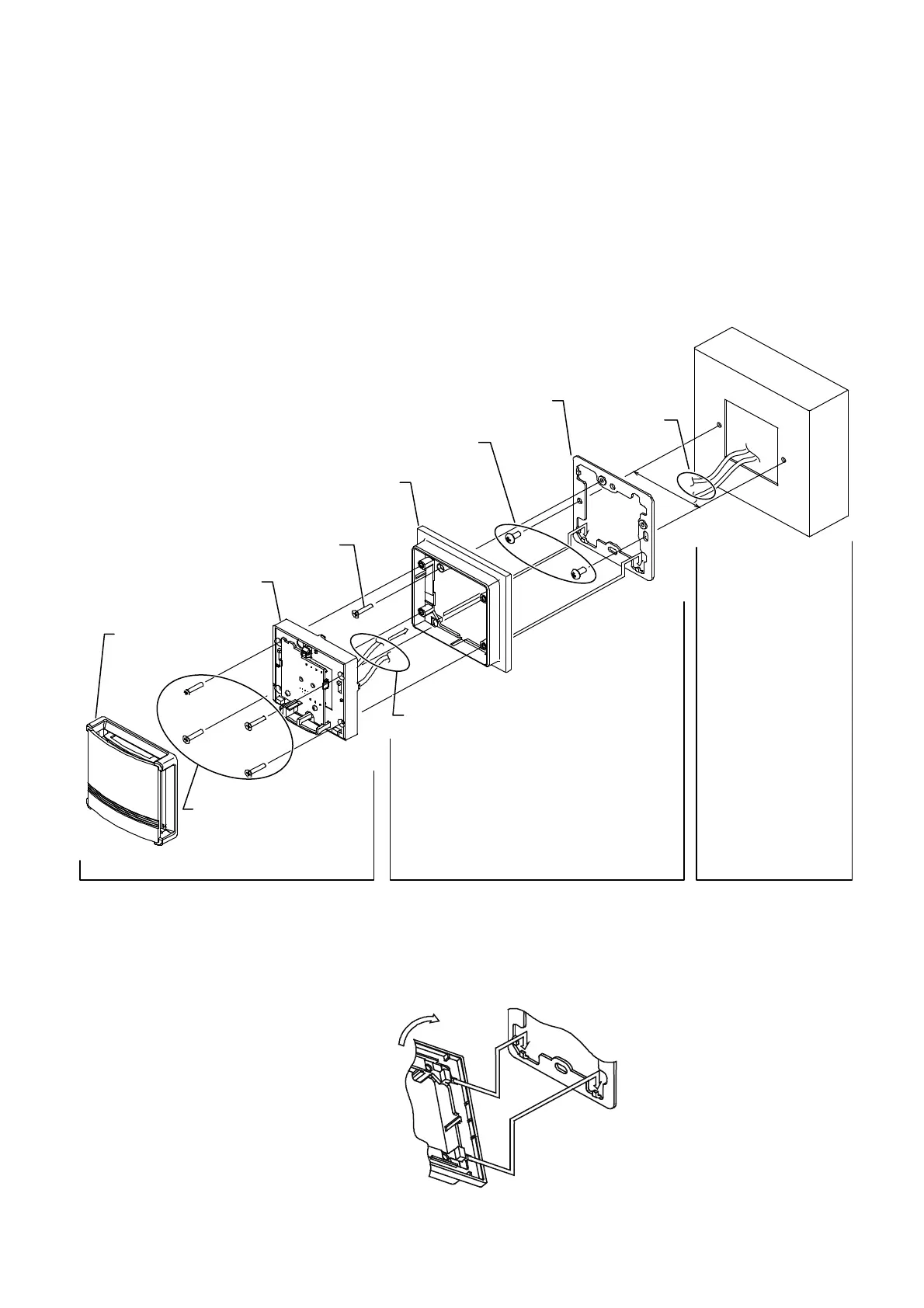

Figure 6. Installation: Neosensor with Wall-direct mounting kit (on Thermoplate for open wiring)
Assembling the Wall-direct mounting kit (the main unit to the mounting plate)
Figure 7. Assembling the Wall-direct mounting kit
Engage.
Mounting plate
Rear side of the main unit
ttach.
Neosensor
Wall-direct mounting kit
(optional)
Thermoplate for open wiring
(optional)
66.7 mm
External wires
from the load
Mounting plate
of Wall-direct mounting kit
2 pan-head machine screws (M4
8)
of Wall-direct mounting kit
Main unit
of Wall-direct mounting kit
Lead wires of Neosensor
1 flat-head machine screw (M3 16)
of Wall-direct mounting kit
Main unit of Neosenso
4 flat-head machine screws
(M3 16) of Neosensor
Cover of Neosensor
