AZEK 150W - Displayed Error Codes; OVER LOAD Error; SHORT CIRCUIT Error; BAD POWER SUPPLY Error

Troubleshooting and Testing Procedures (cont.)
The 7 segment clock display is also used to aid with error codes that can occur. It will shut off after
3 minutes of no button activity. To wake up the display, simply press any button.

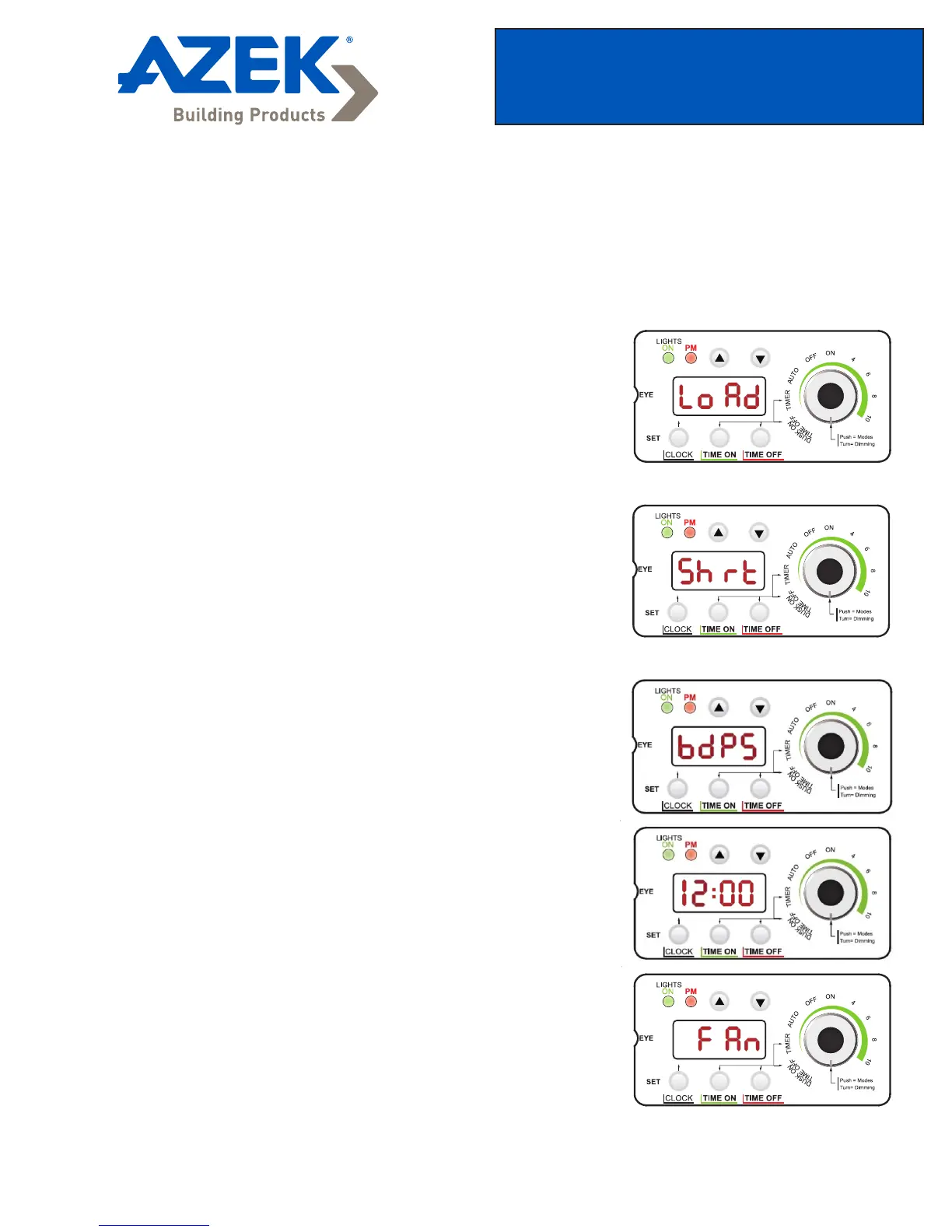

5. Displayed Error Codes are as Follows:
OVER LOAD:
 Willbedisplayedbyashing“LoAd”ontheclockdisplay.If
this condition occurs, the Power Pack will Auto reset 3 times
 andifOverLoadconditionstillexists,itwillshutoffand
 continueashing“LoAd”.Toresolvethis,tryandndthe
defective light or remove some of the lights to lower the load.
Shorted underground wiring, usually at a distance away, can
also cause this, but it will generally trip the Over Load condition
faster than too many lights on one circuit will.
SHORT CIRCUIT:
Will shut down the Power Pack within a few seconds upon
 poweringonanditwillash“Shrt”onthedisplay.Check
for faulty wiring, frayed wires near the +/- terminal block
or defective LED bulb. Isolate short. Reset by unplugging
the AC cord, wait 5 seconds and reconnect. Power on unit.
 IfShortcircuitdoesnotexist,continue.Iffaultreturns
again, isolate the bad wiring or faulty LED bulb.
BAD POWER SUPPLY:
 Willbedisplayedbyashing“dbPS”ontheclockdisplayonly
upon power on and when 0 volts output detected. If this condition
occurs, remove all landscape wiring from output terminal block,
remove AC power cord, wait 5 seconds to reset and if message
 stillexistthenwillrequireservice.
FLASHING 12:00:
Will be displayed when system has not been programed, or
when battery level is too low. Press and hold the clock button
While selecting up/dn arrow to adjust to local time setting. After
1 hour plugged into AC power, the battery will be charged.
FAN MONITOR:
If fan is obstructed, there will be 3 attempts to unjam the fan
from insects or possible plant growth entering the rear vents.
 ThePowerPackwillshutoffandash“FAn”.UnplugtheAC
cord and inspect rear vents. Plug in the AC power cord and try again.
6. ElectricalSpecications:
1-1: USAInputvoltage:120VAC+/-10%50-60Hz•EuroInputvoltage:220-240VAC+/-10%50-60Hz.
1-2: OutputDCvoltage:(MAX)13.3VDC+/-5%variabledimerto8.5VDC+/-2%(MIN)
1-3:  MaximumDCAMPS12.5continuous
1-4: Overload trip @ 17-19 amps from 3-15 minutes
Operating Instructions
150W Power Pack
