INSTALLING RAILING WITH GLASS INFILL
FOR CLASSIC COMPOSITE SERIES AND RESERVE RAIL
4
TRIM RAILS, EXTRUSIONS, AND GASKETS

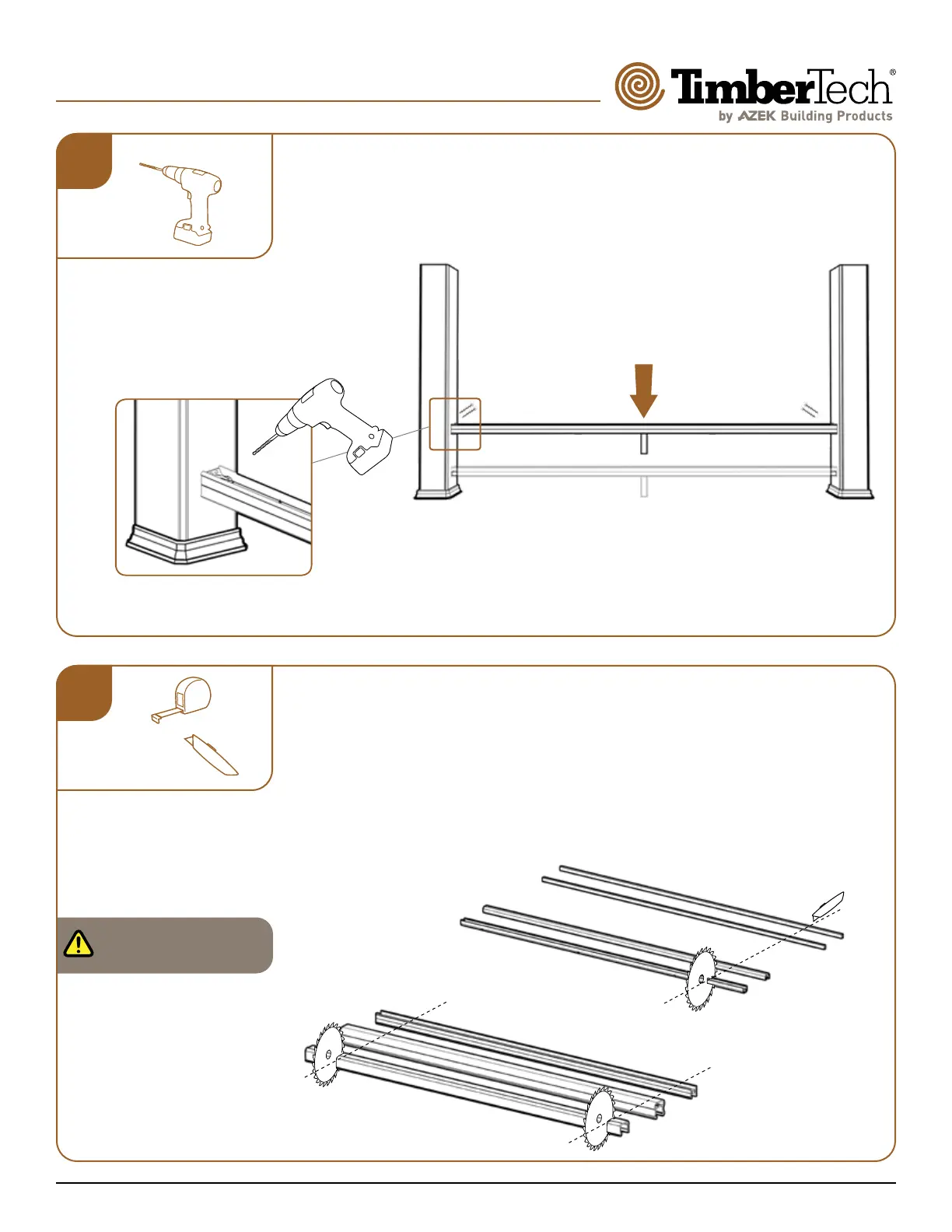

INSTALL BOTTOM SUPPORT RAIL
• Measure distance between the posts at the Bottom Support Rail.
• Transfer measurement to Top & Universal Bottom Rails, Top Support Rail and cut
to length.
• Measure and cut Top and Bottom Glass Channels, and Rubber Gaskets to
appropriate lengths.
• Position Bottom Support Rail assembly onto Support Blocks.
• Pre-drill holes into post sleeves only.
• Attach brackets with green coated screws.
7/64" Pre-drill
#8 x 3"
Semi-threaded
Screws
#8 x 3"
Semi-threaded
Screws
Cut Rubber Gaskets with
utility knife
5
Glass Channels must be at
least 4" shorter than rail.
