INSTALLING RAILING WITH GLASS INFILL
FOR CLASSIC COMPOSITE SERIES AND RESERVE RAIL
7
6

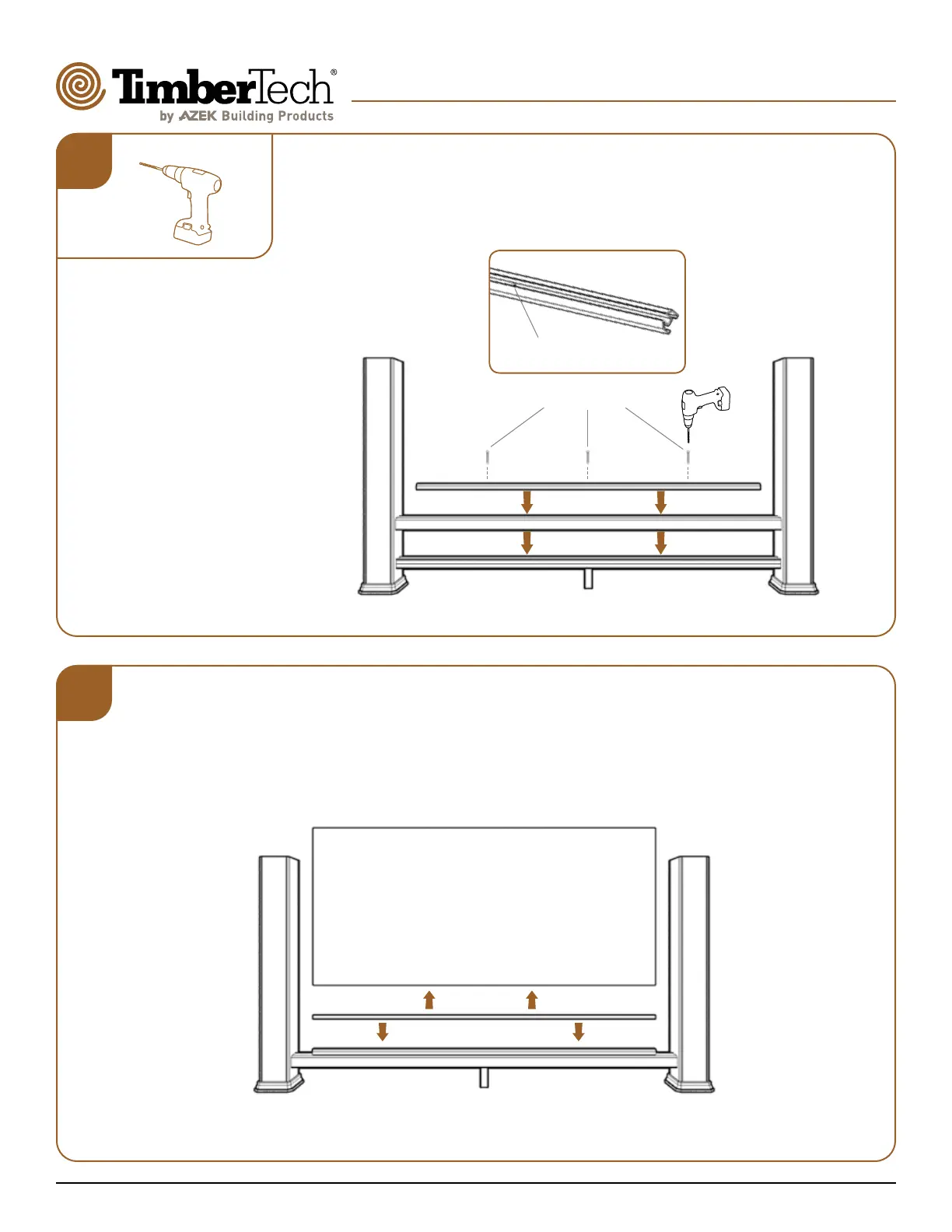

ATTACH LOWER GASKET AND INSTALL GLASS PANEL
ASSEMBLE LOWER RAIL SECTION
• Apply Rubber Gasket to bottom of Glass Panel first.
• Set panel/gasket assembly into Bottom Glass Channel.
• Place Universal Bottom Rail over Bottom Support Rail.
• Install Bottom Glass Channel utilizing pre-drilled holes.
Pre-drill 7/64"
#8 x 1" Coated Screws
Bottom Glass Channel:
Pre-drilled holes are in channel
