INSTALLING RAILING WITH GLASS INFILL
FOR CLASSIC COMPOSITE SERIES AND RESERVE RAIL
8
9

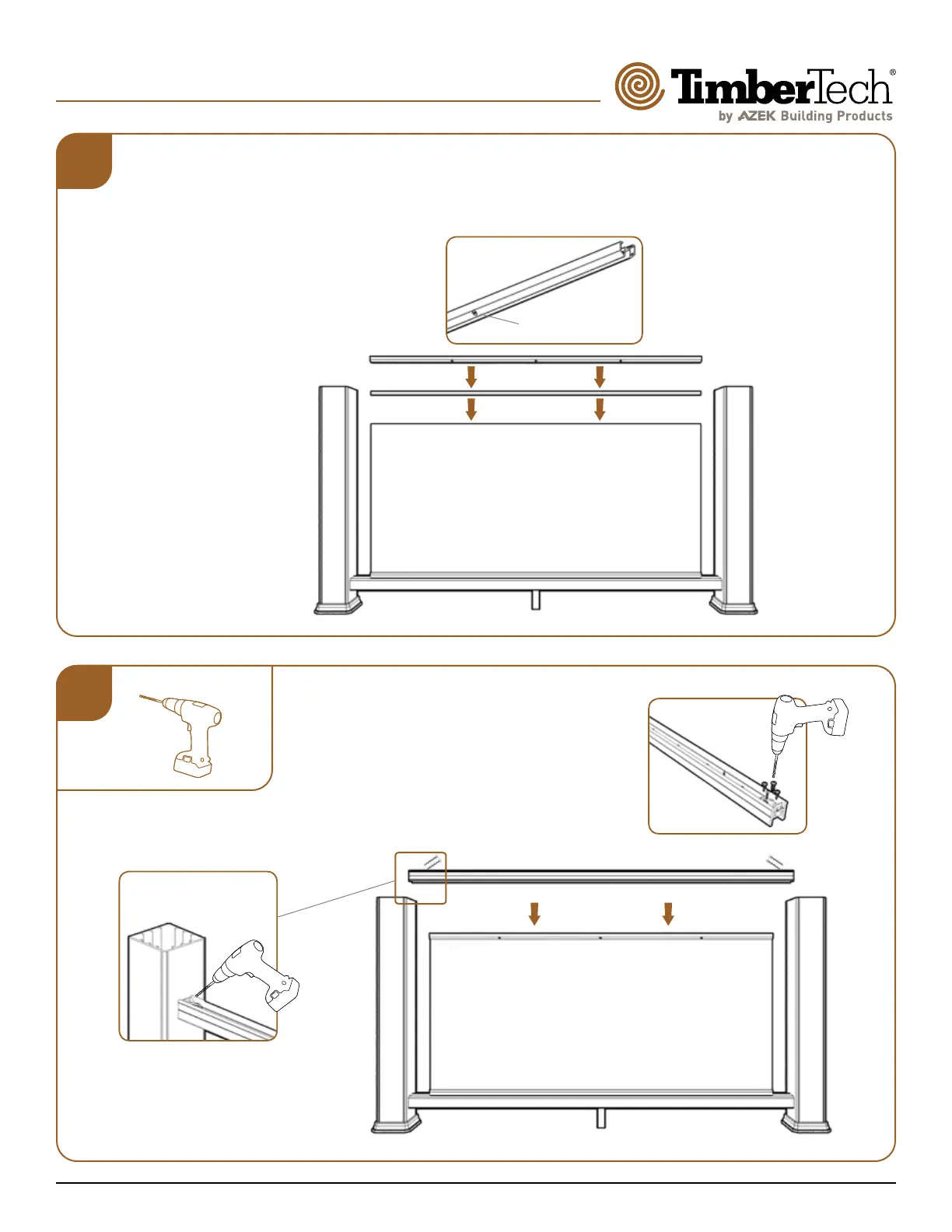

INSTALL TOP SUPPORT RAIL
INSTALL TOP GASKET AND TOP GLASS CHANNEL
• Align top Support Rail to center of Posts.
• Attach Brackets to Top Support Rail.
• Place Rubber Gasket on top of glass panel.
• Fit Top Glass Channel onto glass panel assembly.
Top Glass Channel:
Pre-drilled holes are on side
7/64" Pre-drill
#8 x 3"
Semi-threaded
Screws
7/64" Pre-drill
#8 x 3/4" Screws
To Next Page
