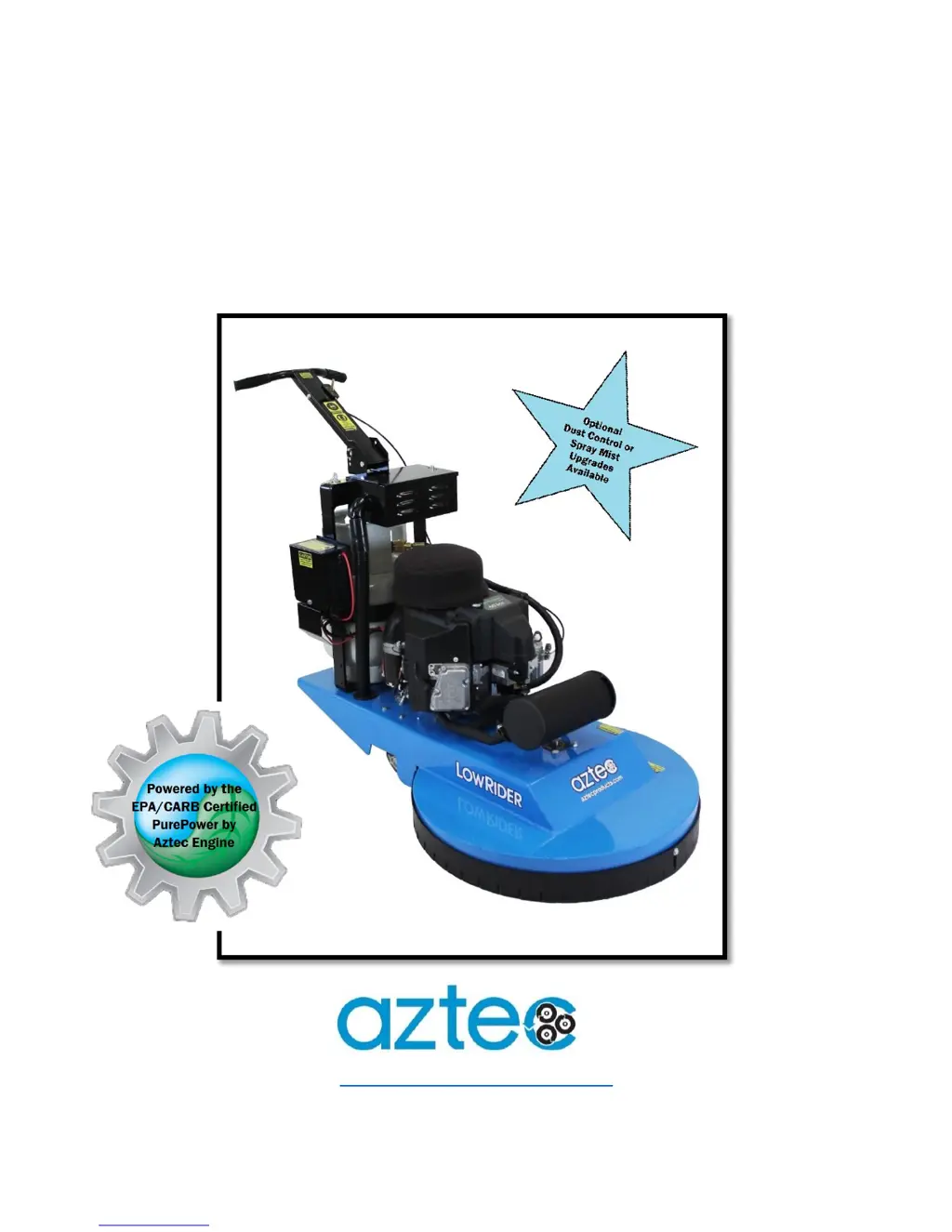

LOWRIDER OWNER’S MANUAL PAGE 1
01-2018
OWNER’S MANUAL
THE LOWRIDER
Propane Burnisher (21”, 24” and 27”)
WWW.AZTECPRODUCTS.COM
800-331-1423 * 201 COMMERCE DRIVE, MONTGOMERYVILLE, PA 18936

Questions and Answers

  • D
    Donna MitchellAug 8, 2025
    What to do if my Aztec Floor Machine engine cranks but won't start?
    • S
      Sharon EllisAug 8, 2025
      If your Aztec Floor Machine's engine cranks but won't start, there are several possible causes: * The propane tank may be empty, in which case you should refill it. * The shutoff valve might be closed; open it. * A fuel or vacuum line could be clogged, obstructed, kinked, or cut; remove the obstruction or replace the line. * The spark plug lead may be disconnected; connect it to the spark plug. * The ignition coil could be faulty; replace it. * A faulty kill switch may be the issue; replace the switch. * The regulator might be faulty; replace the regulator.
  • P
    Pamela ThomasAug 14, 2025
    Why does my Aztec Floor Machine have exhaust emissions or a propane odor?
    • K
      kylehallAug 14, 2025
      If you notice exhaust emissions or a propane odor from your Aztec Floor Machine, it could be due to several reasons. The carburetor or regulator setting might be incorrect, requiring service by a trained technician. Alternatively, the air filter may be dirty or clogged, in which case you should replace it. Also, check for loose fittings, clamps, cracked hoses, or leaks. Tighten or seal them, and use a soap and water solution to check for leaks. If bubbles appear, replace the leaking part.
  • D
    dsmithAug 20, 2025
    How to fix an Aztec Floor Machine that starts hard?
    • B
      Benjamin AndersonAug 20, 2025
      If your Aztec Floor Machine engine starts hard, consider these potential causes: the choke or throttle settings may be incorrect; set the controls to the correct position. There might be a clogged, obstructed, kinked, or cut fuel or vacuum line; remove the obstruction or replace the line. A faulty regulator could also be the problem; replace the regulator. Finally, low compression could be the reason, in which case you should have the engine serviced by a trained technician.
  • J
    Jeremy MahoneyAug 27, 2025
    Why is my Aztec Floor Machine engine overheating?
    • M
      Michael WilliamsAug 27, 2025
      If your Aztec Floor Machine engine overheats, it could be due to incorrect fuel settings, which requires service by a trained technician. Another cause could be a clogged air intake filter screen or cooling fins; clean and clear any debris or replace the filter. Also, check the oil level and add oil if it is low.
  • A
    Amanda NealSep 1, 2025
    What to do if my Aztec Floor Machine engine will not crank?
    • S
      Shirley MoranSep 1, 2025
      If the engine of your Aztec Floor Machine will not crank, it could be due to a discharged battery; charge or replace the battery. Also, check for loose or faulty connections or wires; tighten, repair, or replace them. A faulty ignition key switch or starter control switch could also be the cause; repair or replace the switch(es).

Summary

Introduction and Safety Messages

General Safety Message Information

Explains safety signal words (DANGER, WARNING, CAUTION, NOTICE).

Important Safety Instructions and Symbols

Guide to Graphical Symbols and Product Labels

Explains graphical symbols and product labels used in the manual.

General Operation Safety Information

Storage and Handling Safety

Maintenance Safety Information

Before Operation Checklist

Read and Understand Safety Messages

Carefully read and understand all safety instructions on pages 3-9.

Check General Machine Condition

Inspect for oil leaks, dirt, damage, and loose fasteners.

Check Engine

Check engine oil level, filters, and air filter element.

Check Maintenance Schedule

Review and perform any necessary maintenance before proceeding.

Check Engine Oil

Check and maintain the engine oil level using the dipstick.

Check Propane Tank and Lines

Inspect propane tank and lines for leaks and proper connection.

LowRider Operation

LowRider - Getting Started

Starting the Engine

Stopping the Engine

Transporting the LowRider

Storing the Machine and Propane Tanks

Engine Maintenance Safety

Engine Oil and Maintenance

Recommended Oil

Specifies recommended API Service Classification for engine oil.

Oil Changes

Instructions for performing engine oil changes at specified intervals.

Oil Filter Change

Instructions for changing the engine oil filter.

PurePower Engine Maintenance Schedule

Troubleshooting - Engine

Troubleshooting - Electrical System

Aztec LowRider Quick Start Guide

Aztec LowRider Warranty

Aztec LOWRIDER 27 Specifications

General IconGeneral
ModelLOWRIDER 27
CategoryFloor Machine
Pad Size27 inches
Fuel TypePropane
Cleaning Path27 inches
