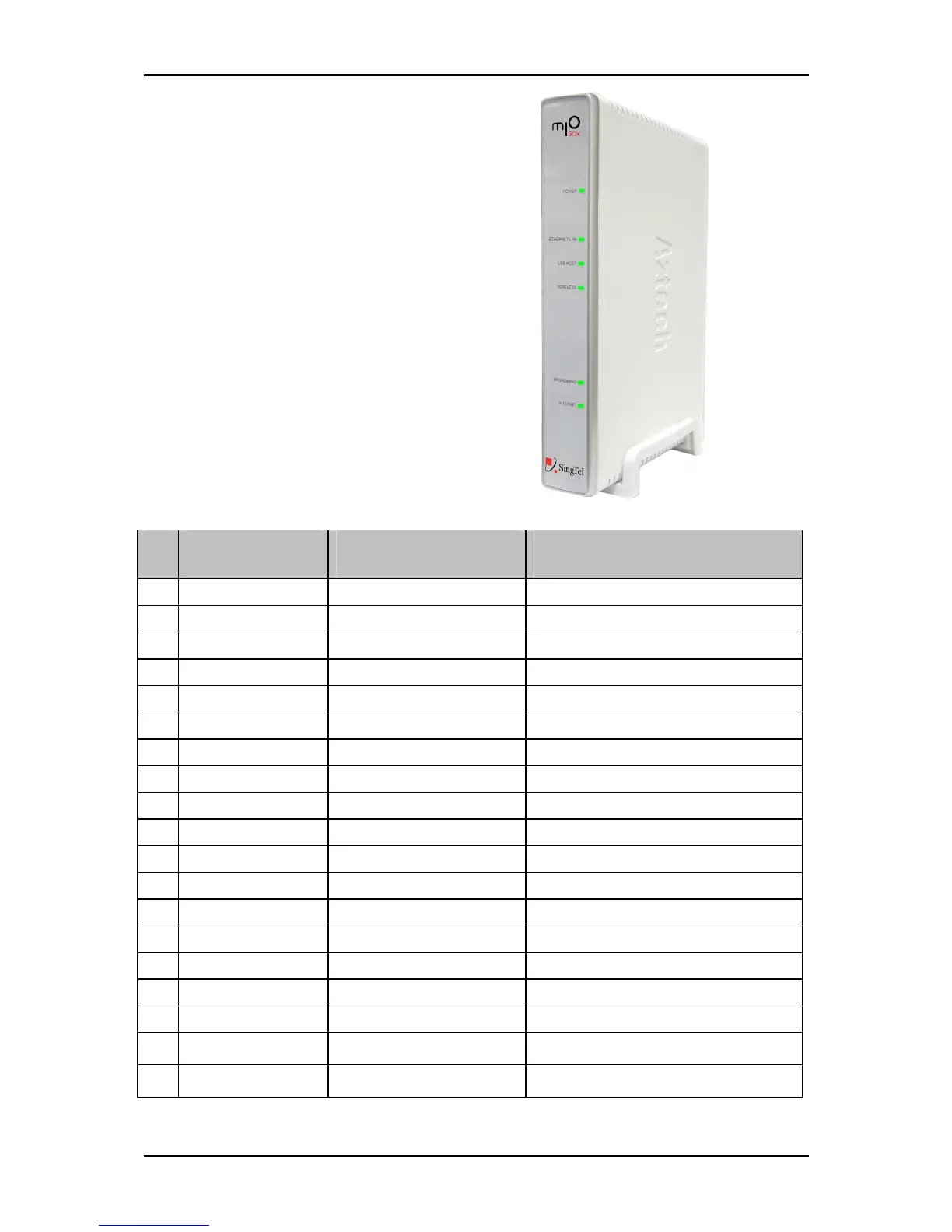

Device Design
Front Panel
Label
LabelLabel
Label Action
ActionAction
Action Description
DescriptionDescription
Description
1
11
1 POW
POWPOW
POWER
ERER
ER Off No power is supplied to the device
Steady green light Connected to an AC power supply
Steady red light Error on the device
2
22
2 ETHERNET LAN
ETHERNET LANETHERNET LAN
ETHERNET LAN Off No Ethernet connection
Steady green light Connected to an Ethernet port
Blinking green light Transmitting/Receiving data
3
33
3 USB Host
USB HostUSB Host
USB Host OFF No USB device connected
Steady green light USB device connected
Blinking green light Transmitting/Receiving data
4
44
4 WIRELESS
WIRELESSWIRELESS
WIRELESS OFF Wireless interface disabled
Steady green light Wireless Interface enabled
Blinking green light Transmitting/Receiving data
5
55
5 BROADBAND
BROADBANDBROADBAND
BROADBAND Blinking green light (slow) No DSL signal
Blinking green light (fast) Establishing DSL signal
Steady green light DSL signal is established
6
66
6 INTERNET
INTERNETINTERNET
INTERNET Off No connection to the Internet
Steady green light Internet connection established
Blinking green light Transmitting/Receiving data
Steady red light PPP authentication failed
