3.INSTALLATION
AND CONNEC
I I()N

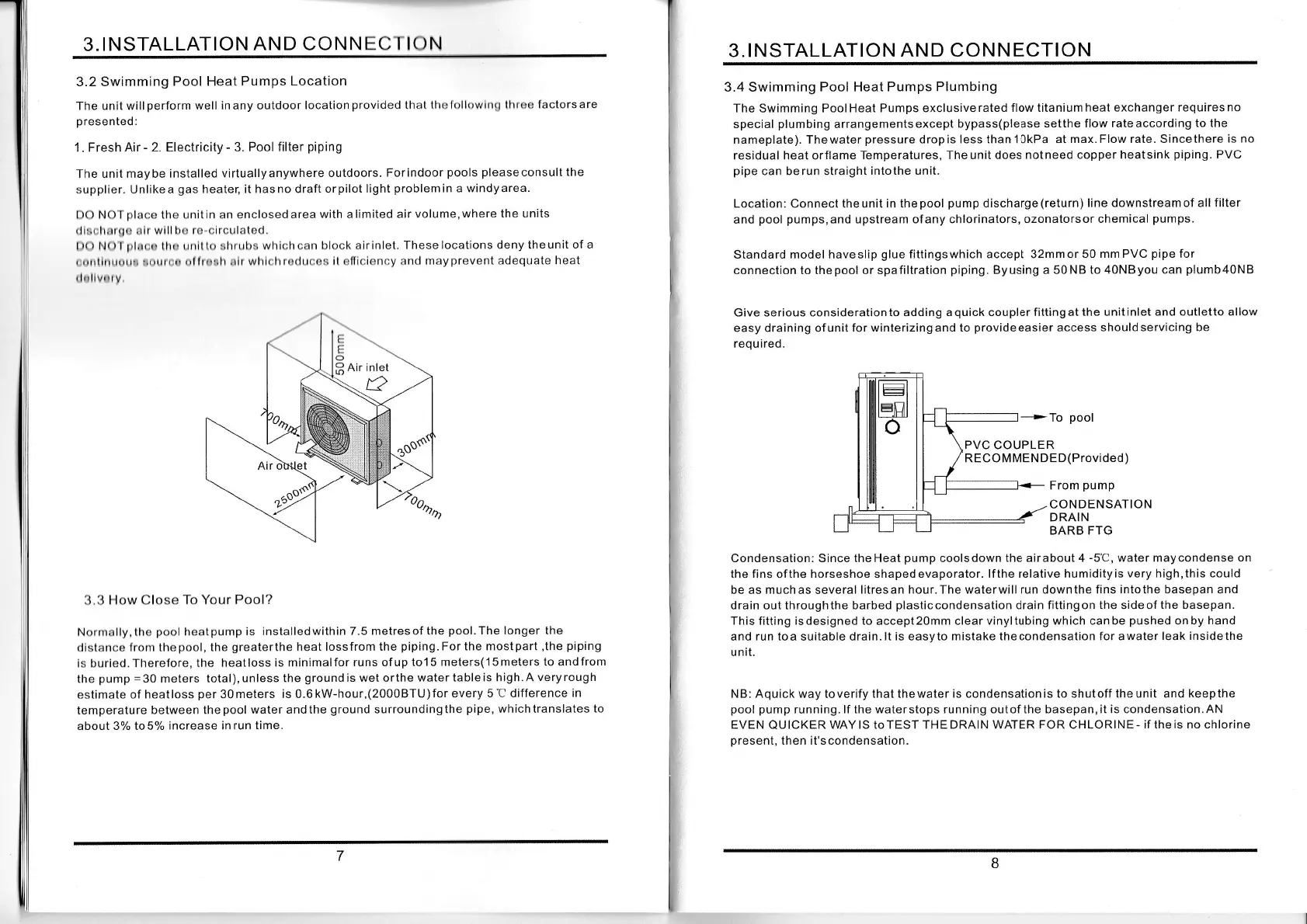

3.2 Swimming
Pool Heat Pumps
Location
The unit willperform
well inany outdoor
locationprovided that thofollowlng threo
factorsare
presented:
1. Fresh Air
- 2, Electricity
-
3.
Pool filter
piping
The unit maybe installed
virtuallyanywhere
outdoors.
Forindoor
pools pleaseconsult
the
supplier. Unlikea
gas
heater,
it hasno.draft orpilot
light
problemin
a windyarea.
DO NOTplace
the unitin an
enclosedarea
with alimited
air volume,where
the uniis
cilachargo alr wlll be
ro-circulated.
DO NOTplscs
th6 unltto
shrubs whlchcan
block airinlet.
These
locations deny theunit
of a
0ontlnuour
rourco olfrosh
alr whlch reducss
it efliclency
and mayprevent
adequate
heat
dlllvrry,
.l
ll
llow Olost: Io Your Pool?
Norrrirlly, tl)o
l)ool
hr::rtputnp is installedwithin
7.5 metresof the
pool.The
longer the
rlisl;rrrr:c
lrorrr ilrr:pool,
the
greaterthe
heat lossfrom the
piping.Forthe
mostpart,the
piping
i:; lruriC<1. Therefore, the
heatloss is minimalfor
runs of up to15
meters('l 5meters
to
andfrom
thcpump=30meters total),unlessthegroundiswetorthewatertableishigh.Averyrough
estimate of
heat loss
per
30
meters is 0.6
kW-hour,(2000BTU)for
every 5
C
difference
in
temperature
between thepool
water andthe
ground
surroundingthe
pipe,
whichtranslates
to
about 3% to5%
increase inrun
time.
3. I
NSTALLATION AN
D
CON
N ECTION
3.4 Swimming Pool
Heat Pumps Plumbing
The Swimming
PoolHeat Pumps exclusive
rated flow titanium heat exchanger
requires no
special
plumbing
arrangementsexcept
bypass(please setthe
flow rateaccording to the
nameplate). The water
pressure
drop
is less than 10kPa at max.
Flow rate. Sincethere is
no
residual heat orflame Temperatures,
The unit does notneed copper
heatsink
piping.
PVC
pipe
can berun straight
intothe unit.
Location: Connect the unit in the
pool pump
discharge
(return)
line
downstream of all filter
and
pool pumps,and
upstream
ofany chlorinators, ozonatorsor
chemical
pumps.
Standard model haveslip
glue
fittingswhich accept 32mmor 50
mm PVC
pipe
for
connection
to thepool or spafiltration
piping.
Byusing a 50NB to 40NByou can
plumb40NB
Give serious considerationto adding aquick coupler
fittingat the unitinlet
and outletto allow
easy dralning of unit for
winterizingand to
provideeasier
access shouldservicing
be
required.
----->To
pool
PVC
COUPLER
RECOMMENDED(Provided)
From
pump
CONDENSATION
DRAIN
BARB FTG
Condensation: Since theHeat
pump
coolsdown the airabout
4
-5C,
water maycondense on
the
fins
ofthe horseshoe shapedevaporator.
lf the relative humidityis very high,this could
be as muchas several litresan hour.The
waterwill run downthe fins inioihe basepan and
drain out throughthe barbed
plasticcondensation
drain fittingon the sideof the basepan.
This fitting ls designed to accept
20mm
clear
vinyltubing which can be
pushed
on by hand
and run toa suitable drain.lt is easyto
mistake
thecondensation
for awater leak insidethe
unit.
NB: Aquick way toverify that thewater is condensation
is to shutoff the unit and keepthe
pool pump
running.lf the waterstops
running outof the basepan, it is condensation.AN
EVEN
QUICKER
WAYIS toTEST THEDRAIN WATER FOR CHLORINE. if theis no chlorine
present,
then it's condensation.
