The AZZA Blaze 231 is a mid-tower gaming case designed to house and protect your computer components while offering a range of features for an enhanced user experience. It supports ATX and Micro ATX motherboards, making it suitable for a variety of gaming and general-purpose builds.

Function Description

The primary function of the AZZA Blaze 231 is to serve as an enclosure for PC hardware, providing structural support, protection, and an organized layout for components. It is designed to facilitate efficient cooling, easy installation, and convenient access to ports and controls. The case incorporates RGB lighting on the front, which is controlled by the motherboard, allowing users to synchronize lighting effects with other RGB components for a cohesive aesthetic.

Usage Features

Design and Aesthetics:

The Blaze 231 features a sleek design with a black exterior and interior. Depending on the model (CSAZ-231 or CSAZ-231G), it comes with either a transparent acrylic side panel or a tempered glass side panel, both secured with rubber mounts. These side panels offer a clear view of the internal components, allowing users to showcase their build and RGB lighting. The front panel includes an RGB light strip, adding a dynamic visual element to the case.

Component Compatibility:

The case supports video cards up to 340mm in length, accommodating most high-performance graphics cards available on the market. It also allows for CPU coolers with a maximum height of 155mm. For storage, the Blaze 231 offers versatile options with up to three 2.5-inch drive bays and up to three 3.5-inch drive bays, providing ample space for SSDs and HDDs. There are seven expansion slots, allowing for multiple add-in cards such as graphics cards, sound cards, or network cards.

Front Panel Connectivity:

The top panel of the case provides convenient access to essential ports and controls. It includes one USB 3.0 port (blue), one USB 2.0 port (black), and HD Audio jacks for microphone and headphones. Additionally, there are dedicated buttons for power and reset, along with LED indicators for power and HDD activity.

Cooling System:

The Blaze 231 is engineered for effective cooling to maintain optimal temperatures for your components. It supports multiple fan configurations:

Front: Up to three 120mm fans or two 140mm fans. The case comes pre-installed with two 120mm AZZA PRISMA RGB fans in the front.
Top: Two 120mm fan ports.
Rear: One 120mm fan port. For liquid cooling enthusiasts, the case supports radiators up to 240mm in the front. The maximum height for water cooling in the front is 240mm, and in the rear, it is 120mm. The maximum length for water cooling on the top is 120mm.

Isolated Chamber Design:

A key feature for thermal management is the isolated chamber design for the power supply unit (PSU). The PSU is housed in its own compartment, preventing its heat from affecting other sensitive components like the CPU and GPU. This design helps in maintaining lower overall system temperatures and improves airflow within the main chamber.

Easy Installation Features:

The case includes a pre-cut hole for easy installation of CPU coolers. This cutout on the motherboard tray allows users to install or remove CPU coolers without having to remove the entire motherboard, saving time and effort during upgrades or maintenance.

AZZA PRISMA RGB Fan Integration:

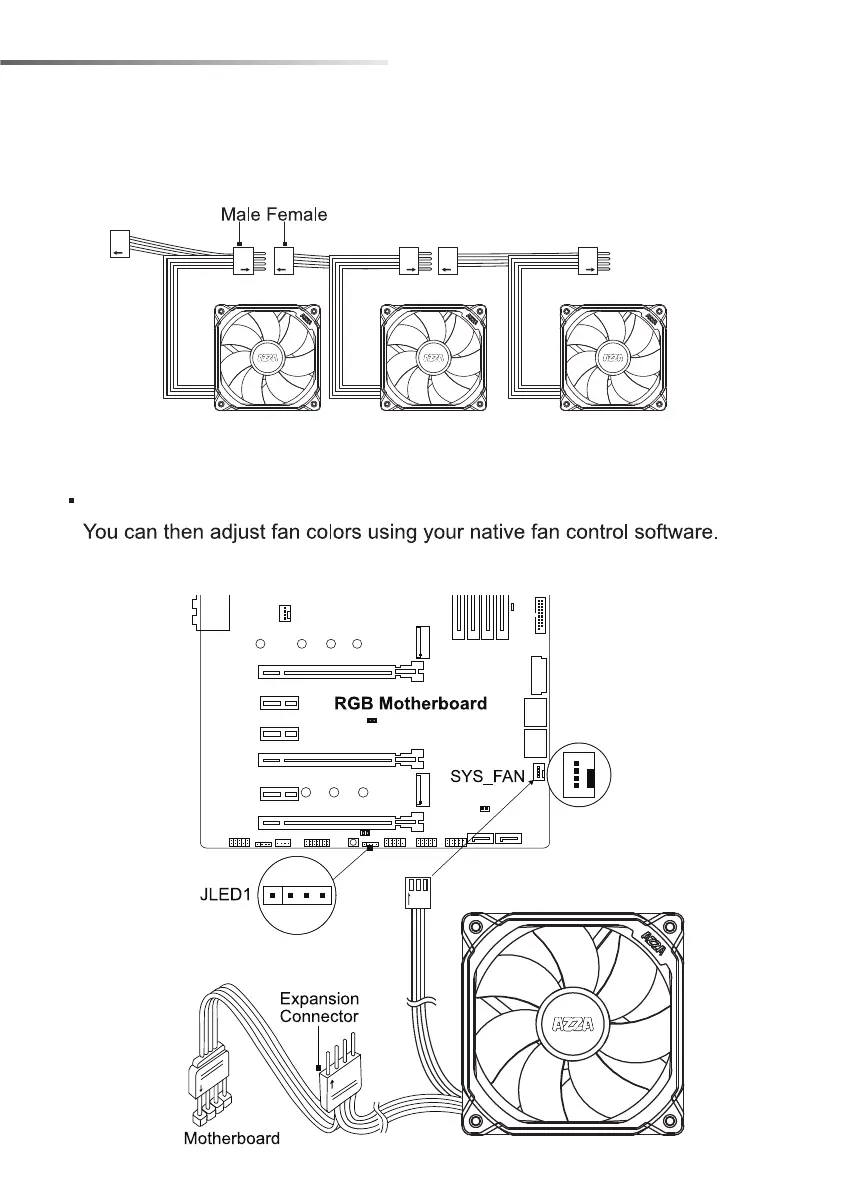

The included AZZA PRISMA RGB fans are designed for easy integration with your motherboard's RGB header. They feature a "daisy-chaining" parallel connection, simplifying cable management. By plugging the fan's 4-pin connector into the motherboard's RGB header, users can control and adjust fan colors using their motherboard's native fan control software, ensuring seamless synchronization with other RGB components.

Maintenance Features

Dust Filters:

To help keep the interior clean and free from dust, the Blaze 231 is equipped with dust filters. There is a removable magnetic dustproof net on the top panel and a dustproof PVC net on the bottom of the chassis. These filters are easy to remove and clean, contributing to better airflow and longevity of components by preventing dust buildup. Regular cleaning of these filters will help maintain optimal cooling performance.

Accessibility:

The side panels are designed for easy removal, providing quick access to internal components for installation, upgrades, or cleaning. The transparent or tempered glass side panel is secured with rubber mounts, making it simple to detach and reattach. The right side panel is also easily removable for access to cable management areas.
