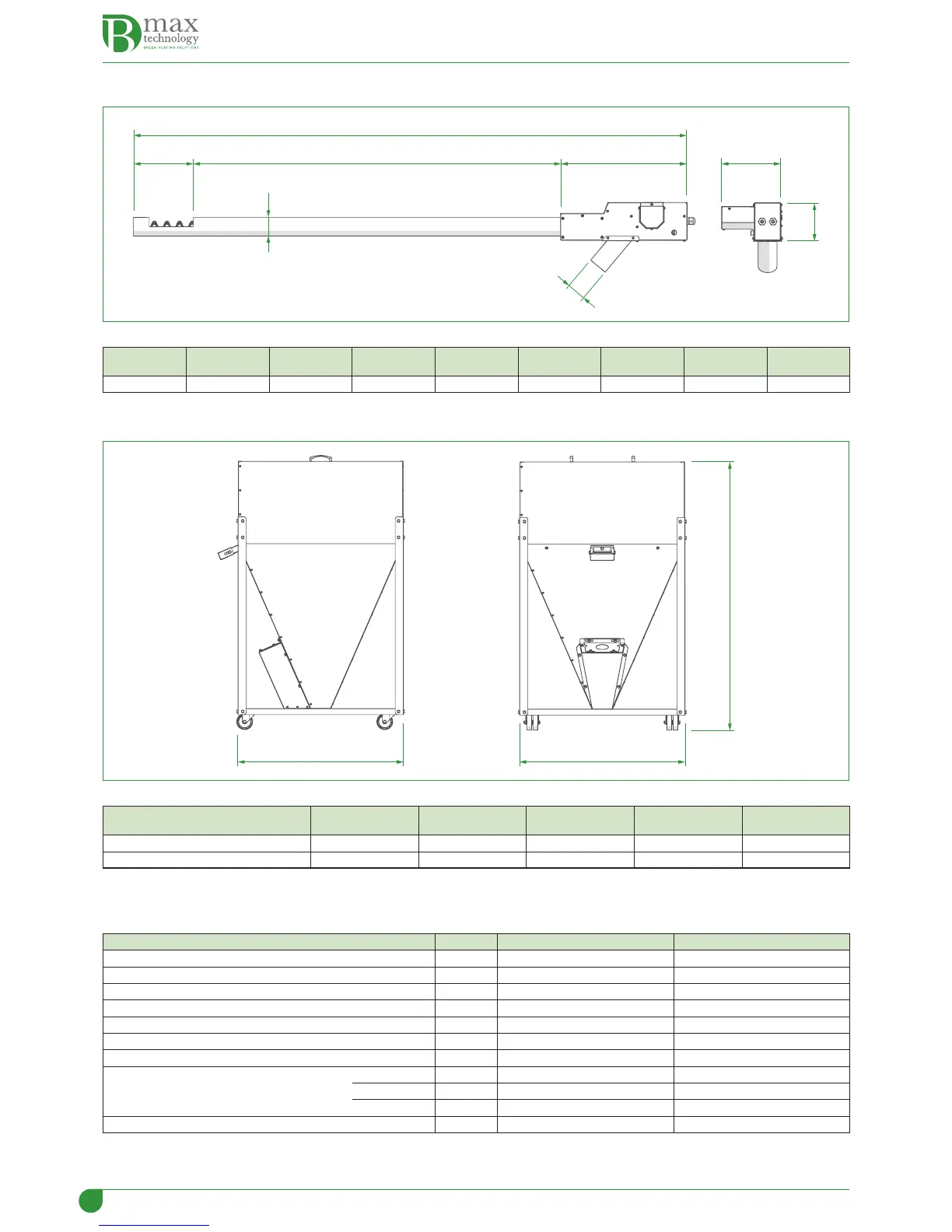

B-Max B-Home Round 25 User Manual

6
1.8.1 Supply feed cochlea: size and weight
G
B C D F
A
E
H
A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[Ø mm]
F
[mm]
G
[Ø mm]
H
[mm]
Weight
[Kg]
1760 190 1168 402 60 190 60 120 9
1.8.2 Pellet container: size and weight
A B
C
Description
Capacity
[Kg]
A
[mm]
B
[mm]
C
[mm]
Weight
[Kg]
Pellet container EBT0001-P01 280 750 650 1252 70
Pellet container EBT0002-P00 300 800 800 1300 57
1.9 Technical data
DESCRIPTION U/M B-Home Round 25 B-Essential Round 50
Burner power kW 12 ÷ 34 12 ÷ 50
Power supply V~Hz 230~50 230~50
Average power consumption W 60 60
Ignition W 230 230
Fuse (delayed) A 3.15 3.15
Noise level dBA 35 40
Length of flame mm 200 300
Boiler combustion chamber minimum size
Height mm 300 400
Width mm 300 350
Depth mm 350 450
Flue draw Pa 20 20
