B52 GEMINIS X - Page 7

DUAL ZONE SHOCK
1. BLACK NUT TURN CLOCKWISE.
BOTH STAGE (STAGE 1 & STAGE 2) BECOME SENSITIVE (+).
2. BLACK NUT TURN COUNTER-CLOCKWISE.
BOTH STAGE BECOME LESS SENSITIVE (-).

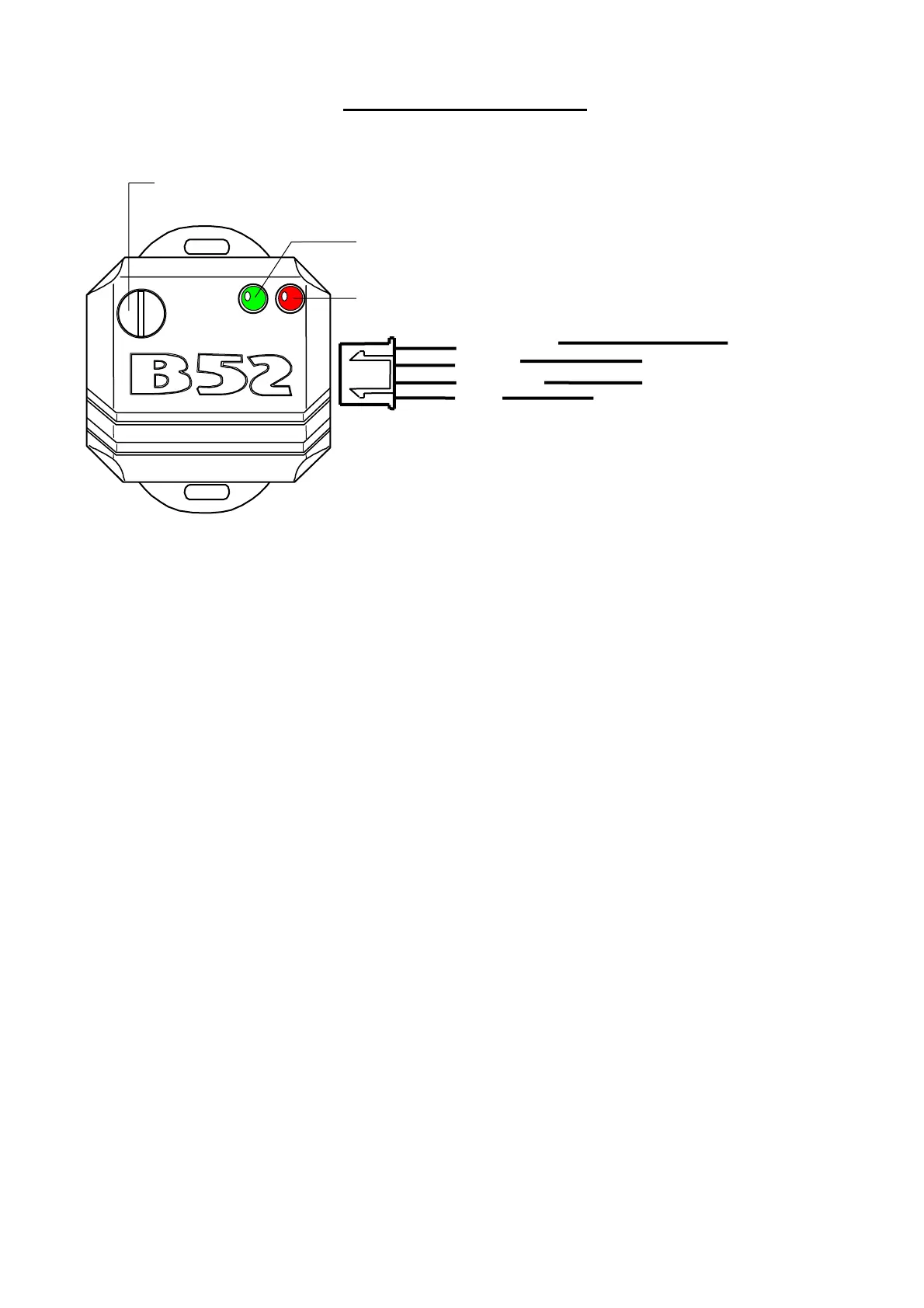

(BLACK NUT)ADJUST BOTH STAGE1 & STAGE2
GREEN (1
st
STAGE INDICATOR) /
RED (2
n
d
STAGE INDICATOR) /
RED (ORANGE) +12VDC
BLACK
(－) GROUND
BLUE (GREEN)
1
st
STAGE (－) OUTPUT
WHITE
2
nd
STAGE (－) OUTPUT
