2 Insert the cap on the end of the steel
brake cable into the upper brake lever,
as shown in Figures 16 and 17.
3. Place the brake cable into the groove
of the brake (indicated with arrows in
Fig. 18).
16.
17.
18.
19.

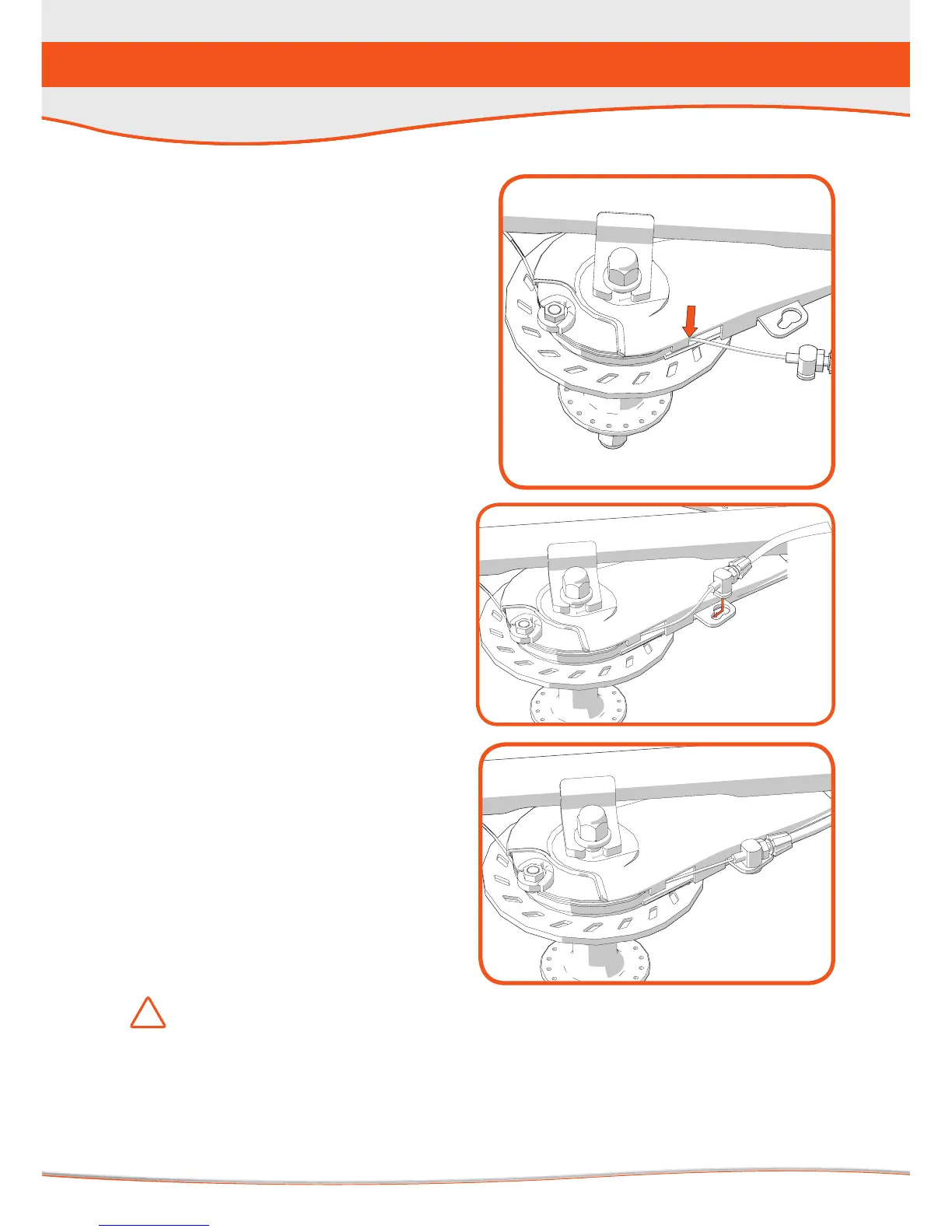

4. Next, hook the cable around the
noodle (indicated with an arrow in
Fig. 19).
5. Then li the lower lever up to
a ach the last adjustment clamp
there (see Fig. 20).
The brake cable is now installed
(see Fig. 21).
6. Repeat these steps for the right
front wheel and the right brake
cable.
Important! The brake cable should be properly adjusted by the manufacturer
on delivery. If this is not the case, adjust the adjustment clamps at the
handlebars or at the brake lever on the front wheel.
20.
21.
