11

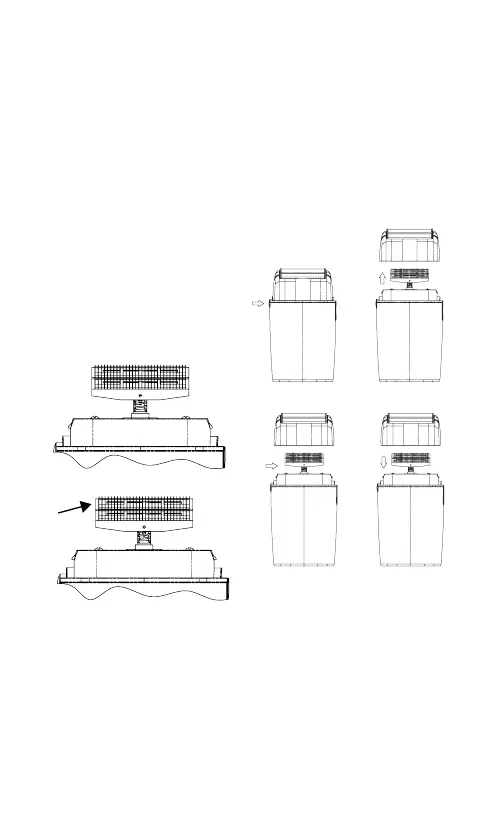

TO REPLACE CUTTERS
NOTE: Always replace the cutters
and foil head assembly at the same
time.
1. To remove cutters, place your
ngers on each side and gently
pull up and away from drive
shaft.
2. To replace cutters, remove the
new cutters from their packa-
ging. Align cutter about the
drive shaft and lightly push
down until it snaps into place.
3. Replace the foil head assembly,
turn shaver on to ensure it is
working properly.
GOOD
BAD
BENT
Daily Maintenance:
1. Press the release button on the
sides of shaver and remove the
head assembly (see Fig. 1 & 2).
2. Use cleaning brush to whisk
away any debris on and around
cutter (See Fig. 3).
3. Snap the head assembly closed
(see Fig. 4)
Fig. 1 Fig. 2
Fig. 3 Fig. 4
