CAUTION: Do not use steam or
high pressure water to clean PVC
eliminators or materials other
than steel.
Detailed Component
Maintenance Procedures
Water Level Control
Mechanical Make-up Valve Assembly

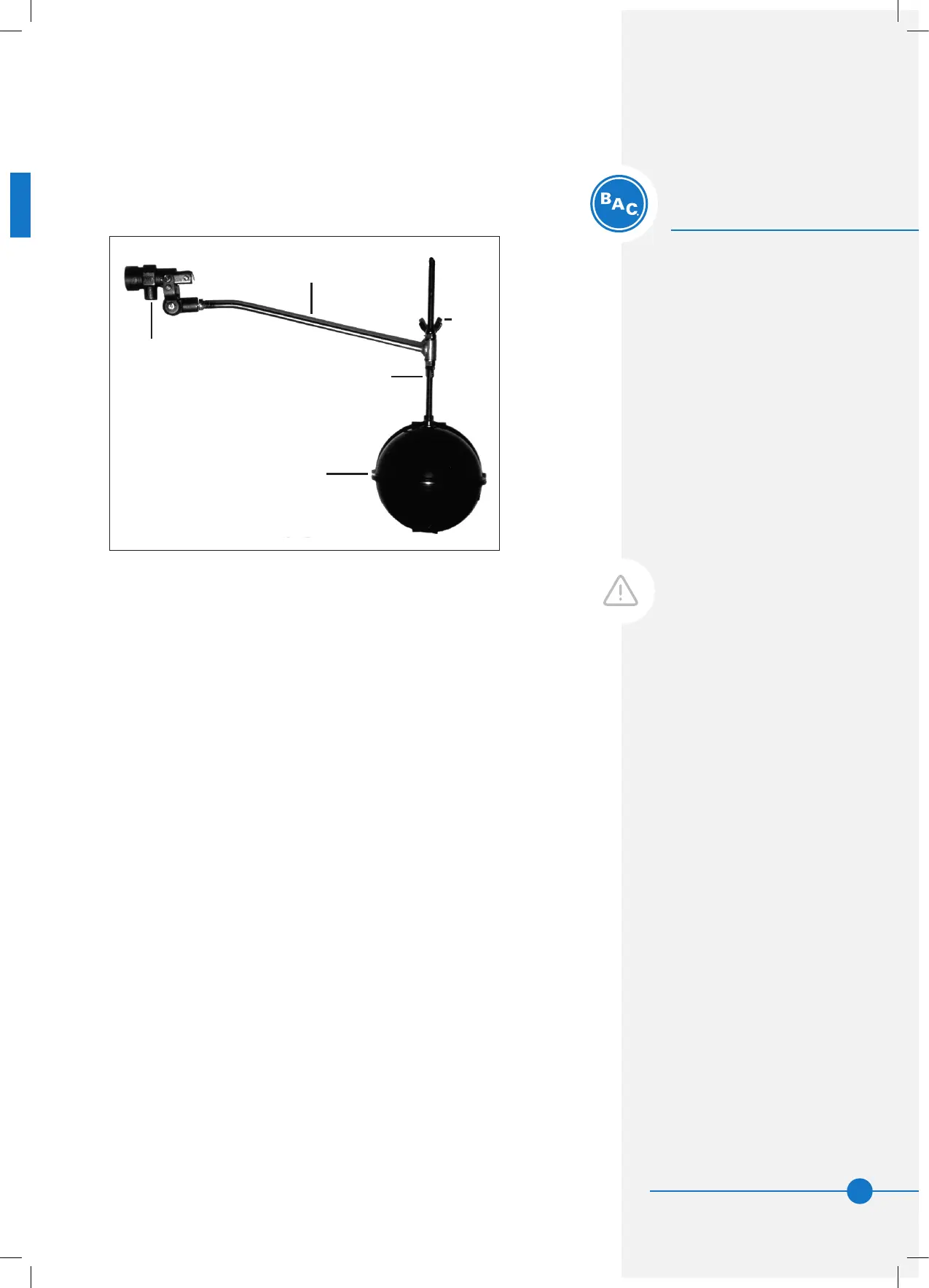

Figure 10. Water Make-Up Valve Assembly
Float Valve
Float Arm Assembly
Wing
Nuts
All Threaded Rod
Float Ball
Optional Electric Water Level Control Package
As an option, an electric water level control package is available in lieu of
the mechanical make-up assembly. The package consists of a probe type
liquid level control assembly and a slow-closing solenoid valve.
Stainless steel electrodes, factory-set at predetermined lengths, extend
from an electrode holder into the cold water basin.
• Clean the stainless steel electrodes periodically to prevent
accumulations of scale, corrosion, sludge or biological growth,
which could interfere with the electrical circuit.
• The water level is maintained at the recommended operating level
regardless of the system thermal load.
• Therefore, it is not recommended that the operating level be adjusted.
• During the start-up of units equipped with the electric water level
control package, bypass the control unit in order to ll the unit to
the overow connection.
