CO
2
Monitor Parts and Service
Instruction 3015-9000 Rev 2 21
3 Maintenance
3.1 Disassembly
When servicing the parts inside the CO
2
monitor, disassemble the monitor’s metal chassis as follows:
Items Required:
Medium Phillips head screwdriver
Procedure:
1. Unplug battery pack from monitor.

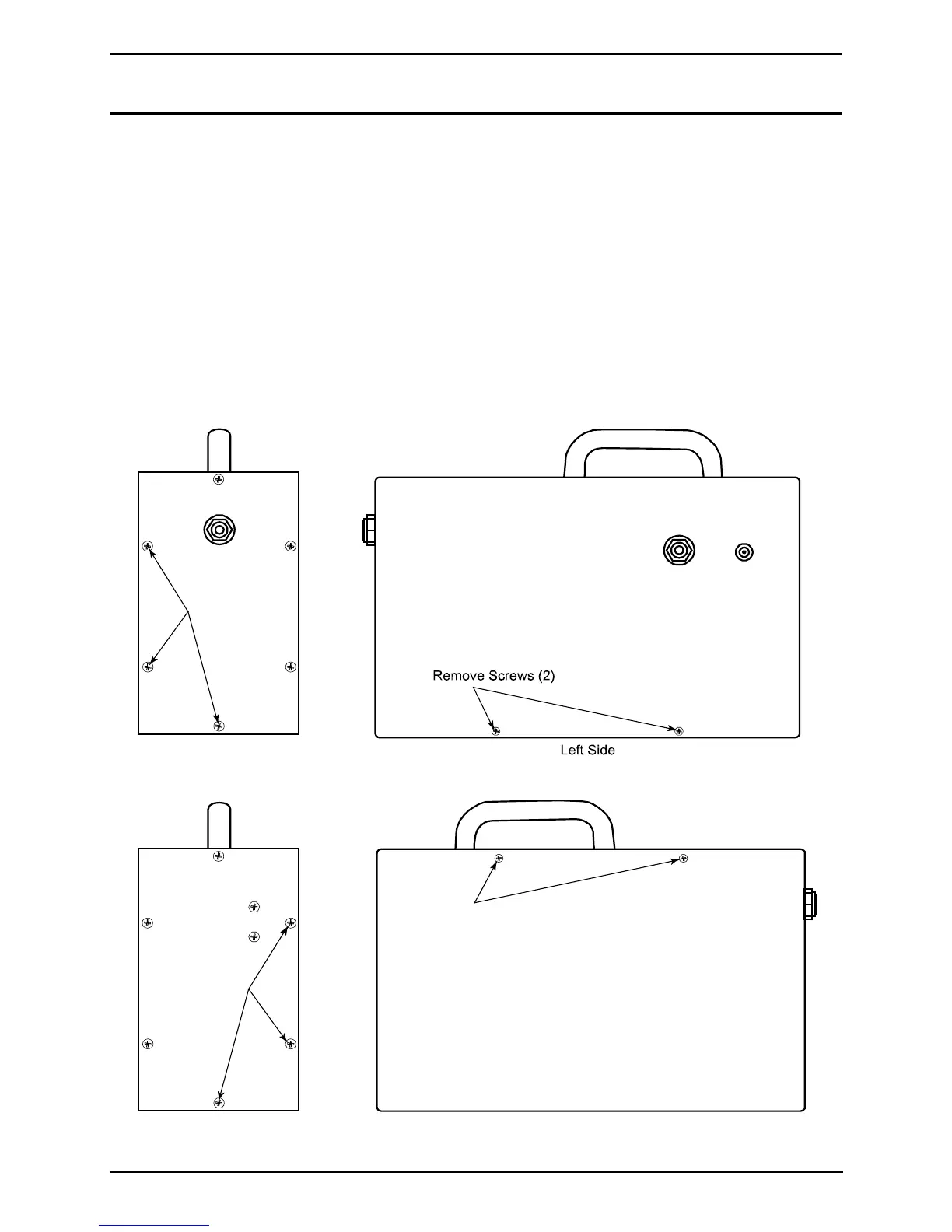

2. Remove the monitor from the soft carrying case.Remove a total of 10 screws from the locations shown in
the illustrations below.
3. Carefully separate the metal chassis.
Front
Remove
Screws (3)
Rear
Remove
Screws (3)
Right Side
Remove Screws (2)
To Next Page
