Using the Machine
1. Turn ON the switch. The indicator panel will illuminate from 1 to 10 bars indicating the
charge status of the battery. If the indicator is flashing or rippling up and down, refer to the
SELF HELP GUIDE.

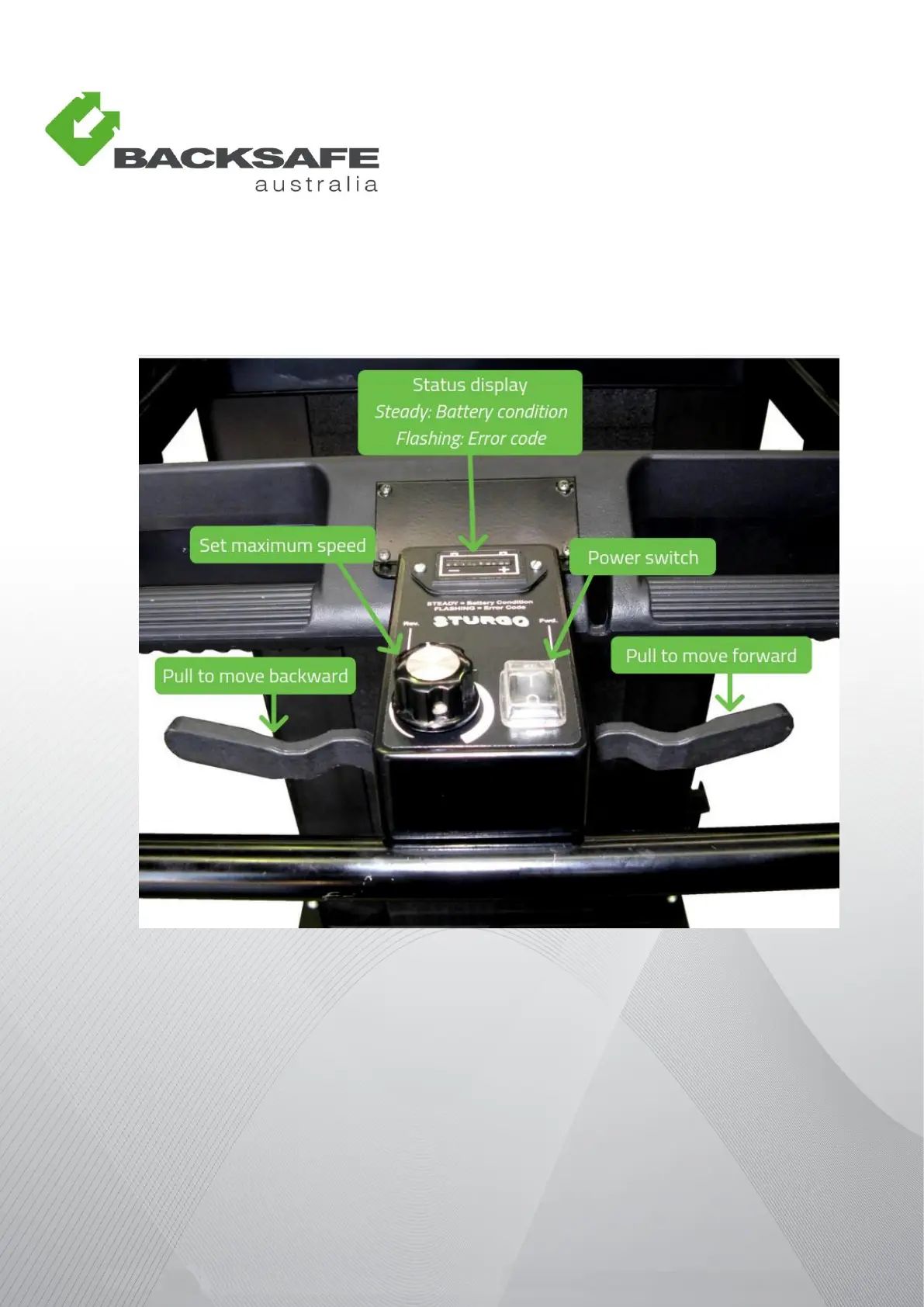

Image 1: Functions of the Hand Control Unit
2. Set the maximum speed with the control marked SPEED SET (anticlockwise for minimum
speed, clockwise for maximum speed), and then pull back on the RHS throttle lever to go
forward, and the LHS lever to go backwards. The further the lever is moved in either
direction, the faster the machine will travel, up to its pre-set maximum speed.
