5/8 in
[15 mm]
5/8 in
[15 mm]
TIP:
LAY PARTS ON THE GROUND OR SAW
HORSES FOR EASE OF ASSEMBLY.

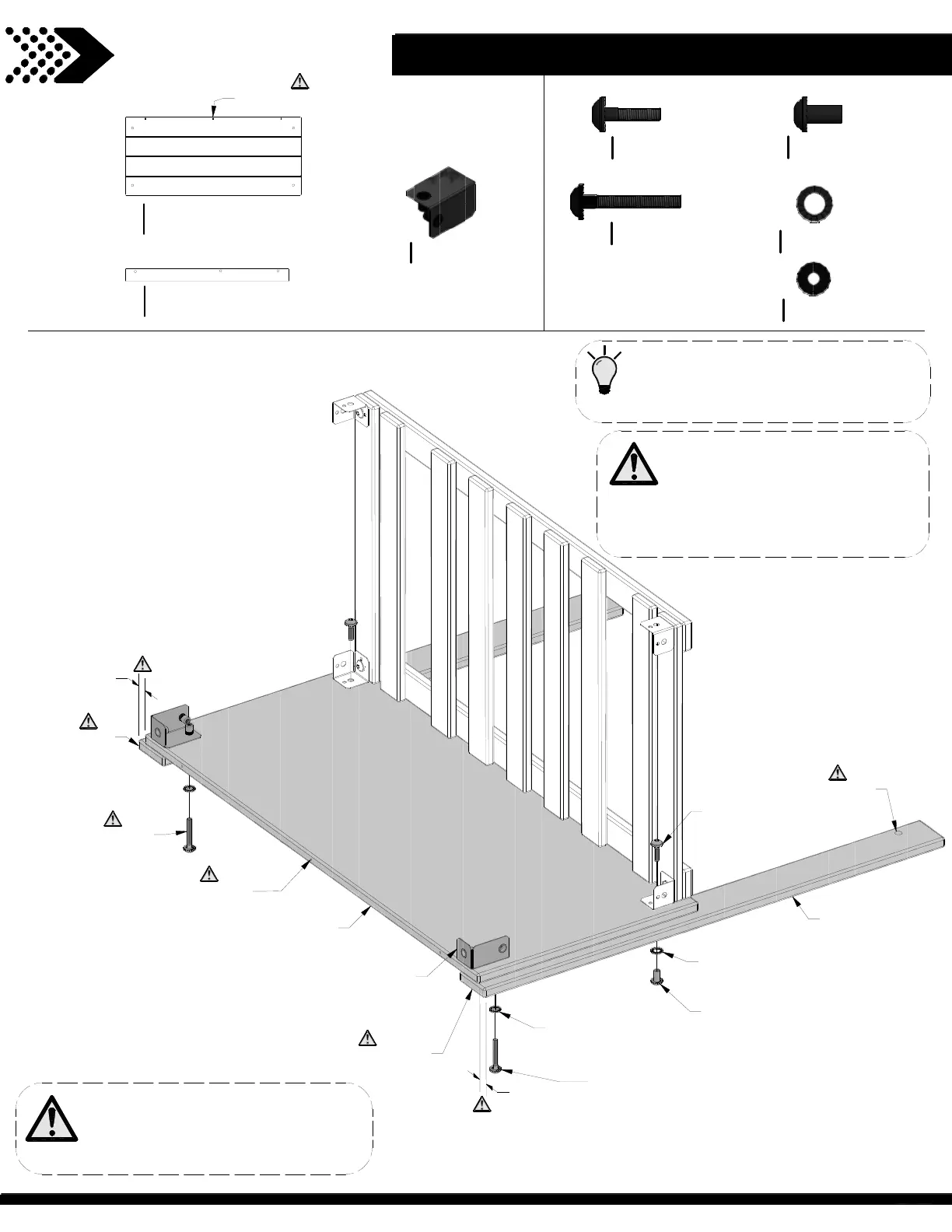

STEP
2
MN1
(x2)
UPRIGHT
THREADED BRACKET
(x2)
A4M01171
PB1
(x1)
PANEL BOARD
BOLT WH BLK
1/4x1
(x2)
H100171
NUT BARREL WH BLK
1/4x5/8
(x2)
H100404
NOTE PILOT
HOLES.
NOTE:
PARTS MUST BE ORIENTATED AS
SHOWN FOR CORRECT ASSEMBLY.
LOCATE AND USE THE PILOT
HOLES TO ASSEMBLE PB1 & MN1
BOARDS AS SHOWN.
NOTE ORIENTATION
NOTE
ORIENTATION
171
(x2)
3-SIDED-90° BRACKET - BLK
UPRIGHT - W4L14320
5/8"x2 3/8"x29 1/4" (15x60x742)
MN1
(x2)
PANEL BOARD - W4L14325
5/8"x14"x31 3/8" (15x356x796)
PB1
(x1)
026
(x2)
BOLT - 1-3/4"
DON'T FULLY TIGHTEN
405
(x2)
WASHER - 6x15
404
(x2)
NUT BARREL - 5/8"
400
(x2)
WASHER - 8x15
171
(x2)
BOLT - 1"
NOTE:
ONLY FINGER TIGHTEN BOLT 026 -
1 3/4" TO PROPERLY ASSEMBLE
FUTURE STEPS.
DON'T FULLY
TIGHTEN
BOLT WH BLK
1/4x1-3/4
(x2)
H101026
WASHER LOCK EXT BLK
8x15
(x2)
H100400
WASHER LOCK EXT BLK
6x15
(x2)
H100405
NOTE PILOT
HOLES UP
PILOT HOLES UP
15
