Backyard Discovery 1605022D - Page 17

SUNBURST HALF MOON - W4L06954
5/8"x4"x12" (16x102x306)
(2)
Y3
SUNBURST BOARD - W4L06955
5/8"x2 3/8"x11 3/4" (16x60x299)
(2)
N3
SUNBURST BOARD - W4L06956
5/8"x2 3/8"x8 1/8" (16x60x205)
(4)
N4
AWNING BOARD - W4L06957
5/8"x1 3/8"x32 1/4" (16x34x818)
(1)
O4
SWING BEAM EXTENDED - W4L06961
2"x5 1/4"x89 1/2" (50x134x2274)
(1)
SB74
SWING BEAM SUPPORT - W4L13844
2"x3 3/8"x49 5/8" (50x86x1260)
(1)
W71

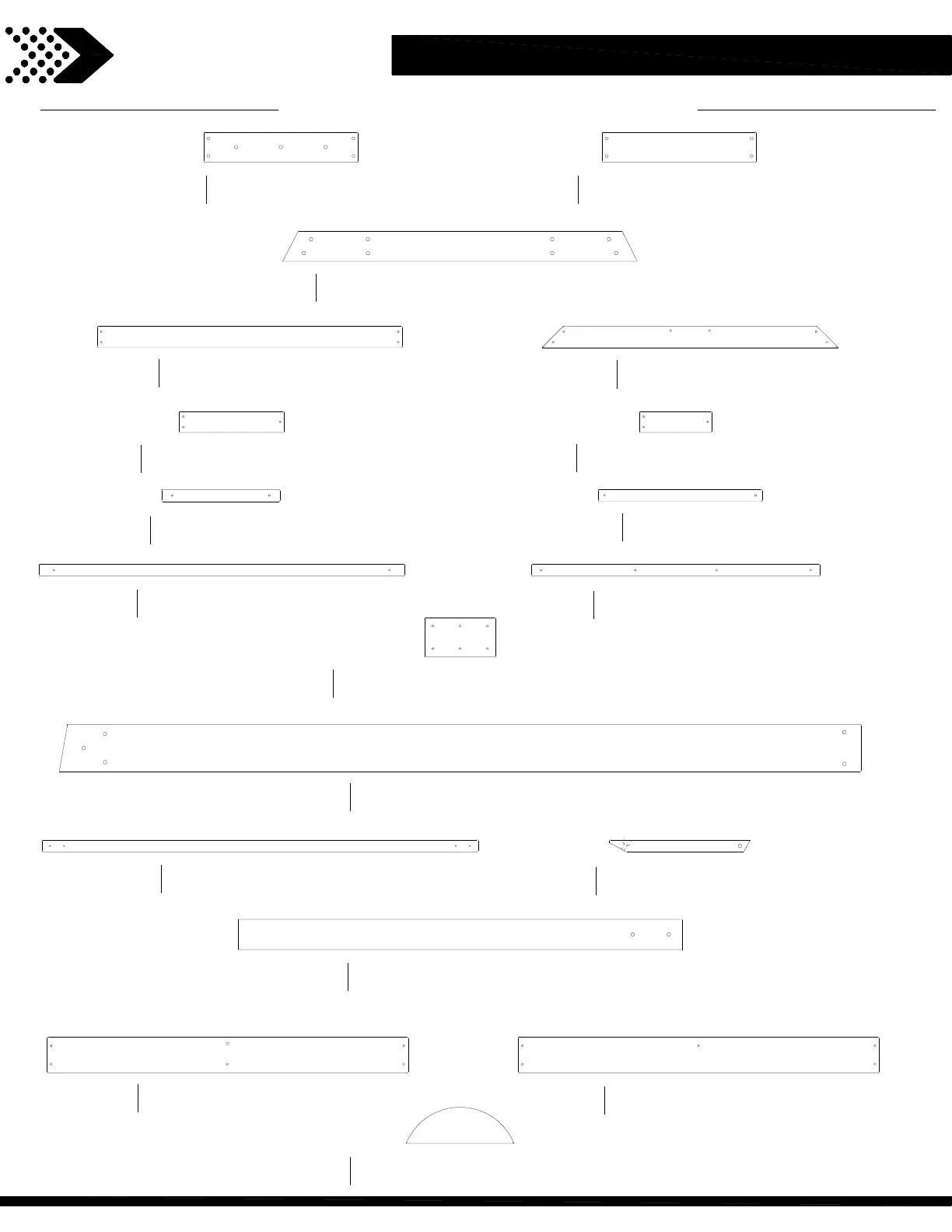

Wood Components (Not to Scale)
Owner's Manual
Parts Identification
ROOF BOARD - W4L06953
5/8"x2 3/8"x33 1/8" (16x60x840)
(2)
N2
PICKET - W4L06944
5/8"x1 3/8"x18 1/4" (16x34x465)
(23)
O2
SAFETY BOARD - W4L06948
5/8"x1 3/8"x40 7/8" (16x34x1038)
(2)
O3
FLOOR BOARD - W4L06917
5/8"x4"x40 3/8" (16x102x1024)
(1)
Y2
ROOF BOARD - W4L06951
1"x1 3/8"x48 3/4" (24x34x1237)
(1)
T1
SANDBOX SEAT SUPPORT - W4L06434
1"x4 3/8"x8" (24x112x202)
(4)
Q2
AWNING BOARD - W4L06907
5/8"x2 3/8"x34 1/8" (16x60x866)
(1)
N1
FLOOR BOARD - W4L13851
5/8"x4"x40 3/8" (16x102x1024)
(1)
Y1
PICKET - W4L06901
5/8"x1 3/8"x13 1/4" (16x34x336)
(7)
O1
SLIDE BRACE - W100544
5/8"x3 3/8"x17 1/4" (16x86x438)
(1)
M77
CENTER SLIDE BRACE - W100545
5/8"x3 3/8"x17 1/4" (16x86x438)
(2)
M78
MONKEY BAR GROUND BOARD - W4L13850
5/8"x3 3/8"x39 5/8" (16x86x1006)
(1)
M82
SAFETY BOARD - W4L13853
1"x1 3/8"x15 3/4" (24x34x400)
(2)
T2
17
