Backyard Discovery 1605022D - Page 54

AWNING BOARD - W4L06957
5/8"x1 3/8"x32 1/4" (16x34x818)
(1)
O4
AWNING
(1)
A6P00124
SCREW PFH
8x1 1/8
(4)
H100088
SCREW PWH
8x5/8
(4)
H100128
FORT ASSEMBLY

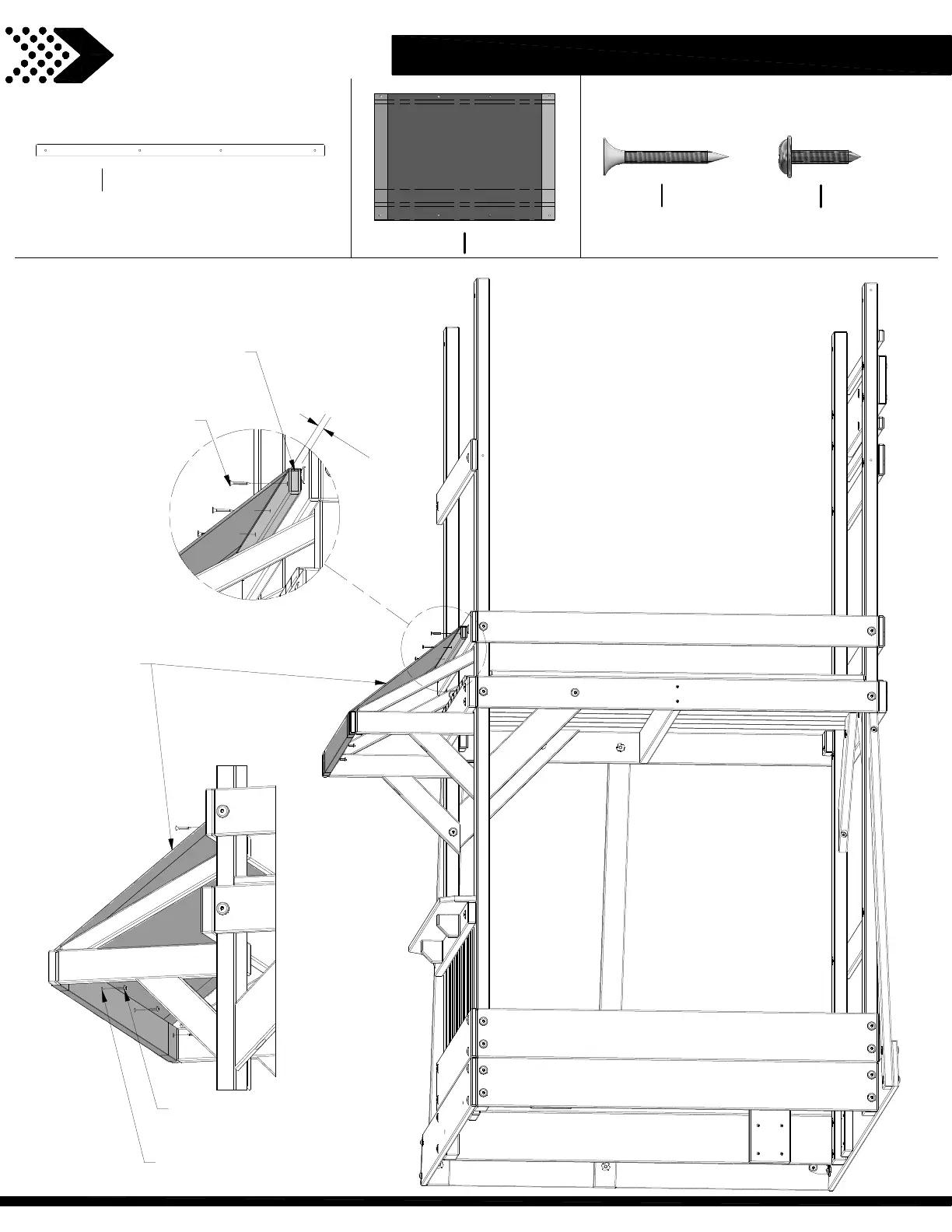

STEP 17
088 (x4)
SCREW - 1 1/8"
O4 (x1)
AWNING BOARD
128 (x4)
SCREW - 5/8
HOLD O4 BOARD DOWN 1" - 25mm FROM TOP &
CENTERED IN OPENING.
124 (x1)
AWNING
GROMMETS THIS END
1" (25mm)
