Backyard Discovery 1605022D - Page 58

SCREW PFH
8x1 1/8
(14)
H100088
PICKET - W4L06944
5/8"x1 3/8"x18 1/4" (16x34x465)
(7)
O2

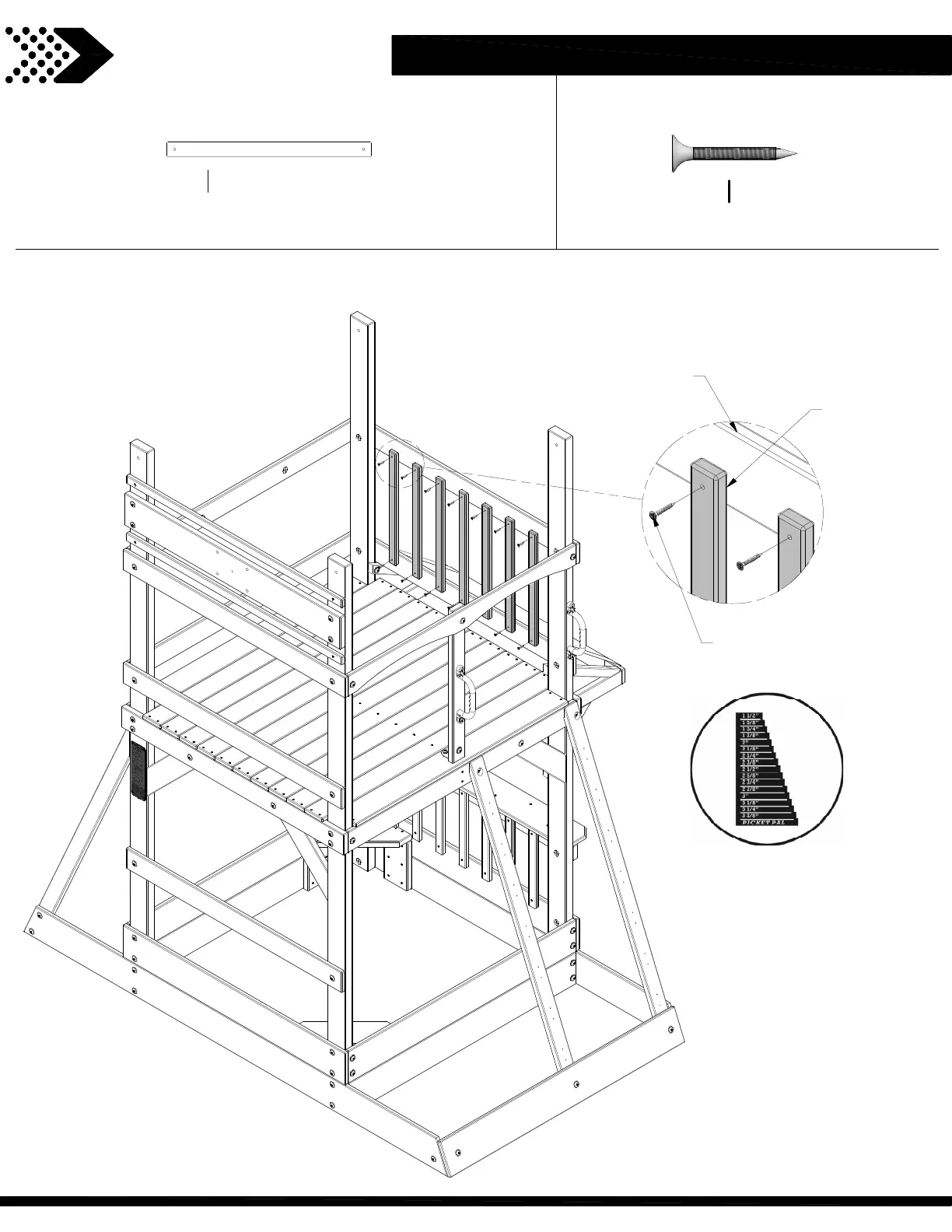

FORT ASSEMBLY
STEP 21
CENTER O2 BOARDS IN OPENING, APPROXIMATELY
1 7/8" - 46mm DOWN FROM M8 BOARD.
APPROXIMATELY 3 1/8" - 79mm SPACING BETWEEN PICKETS.
O2 (x7)
PICKET
088 (x14)
SCREW - 1 1/8"
M8
WALL RAIL
58
