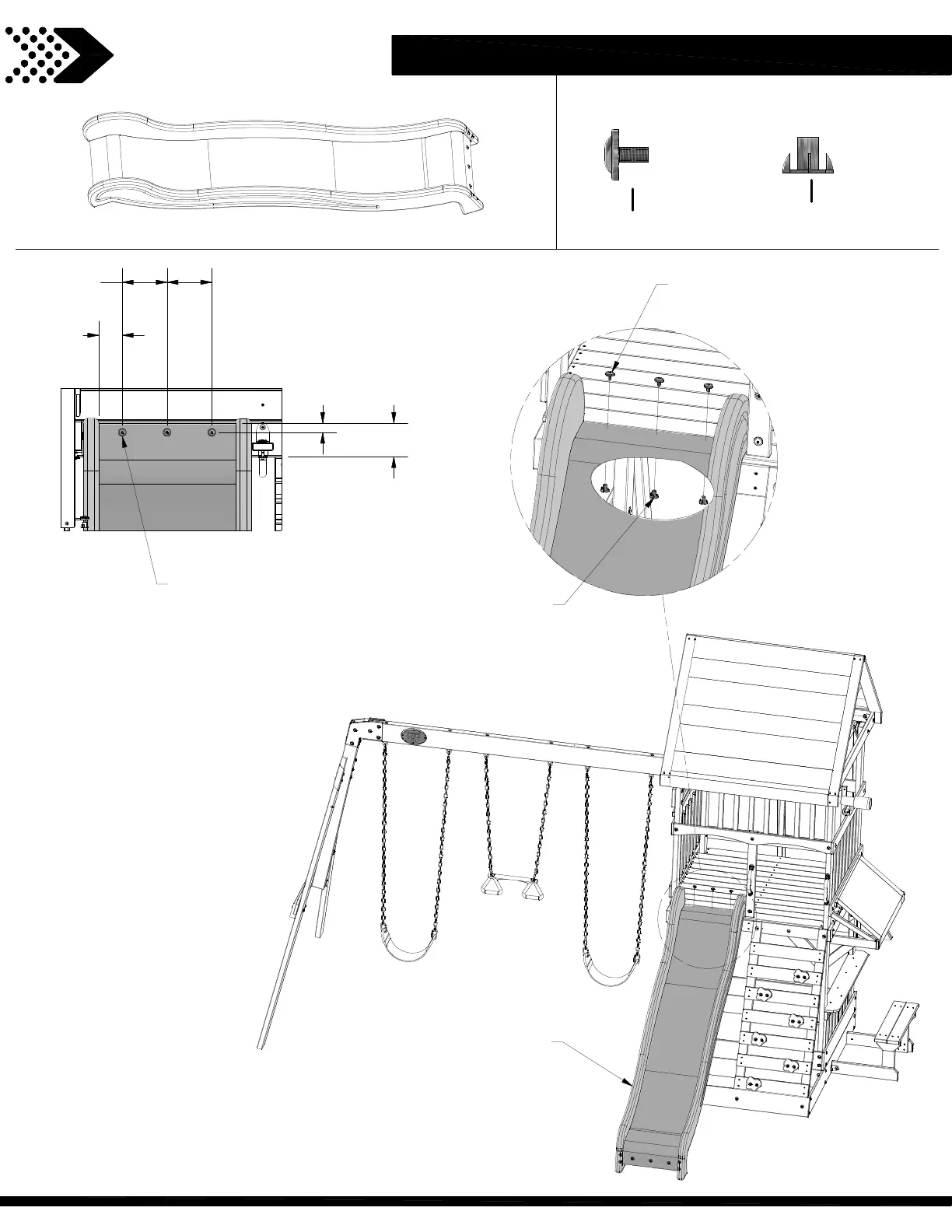

SLIDE ASSEMBLY
BOLT WH
5/16x1/2
(3)
H100115
2 5/8 in
[67 mm]
5 in
[127 mm]
5 in
[127 mm]
1 in
[25 mm]
3 3/4 in
[94 mm]
DRILL (3) 3/8" - (10mm) HOLES
THROUGH SLIDE BED AND
FLOOR BOARDS.
SLIDE ASSEMBLY
FORT ASSEMBLY
STEP 37
T-NUT
5/16
(3)
H100074
074 (x3)
T-NUT - 5/16"
115 (x3)
BOLT - 1/2"
74
