Parts Identification

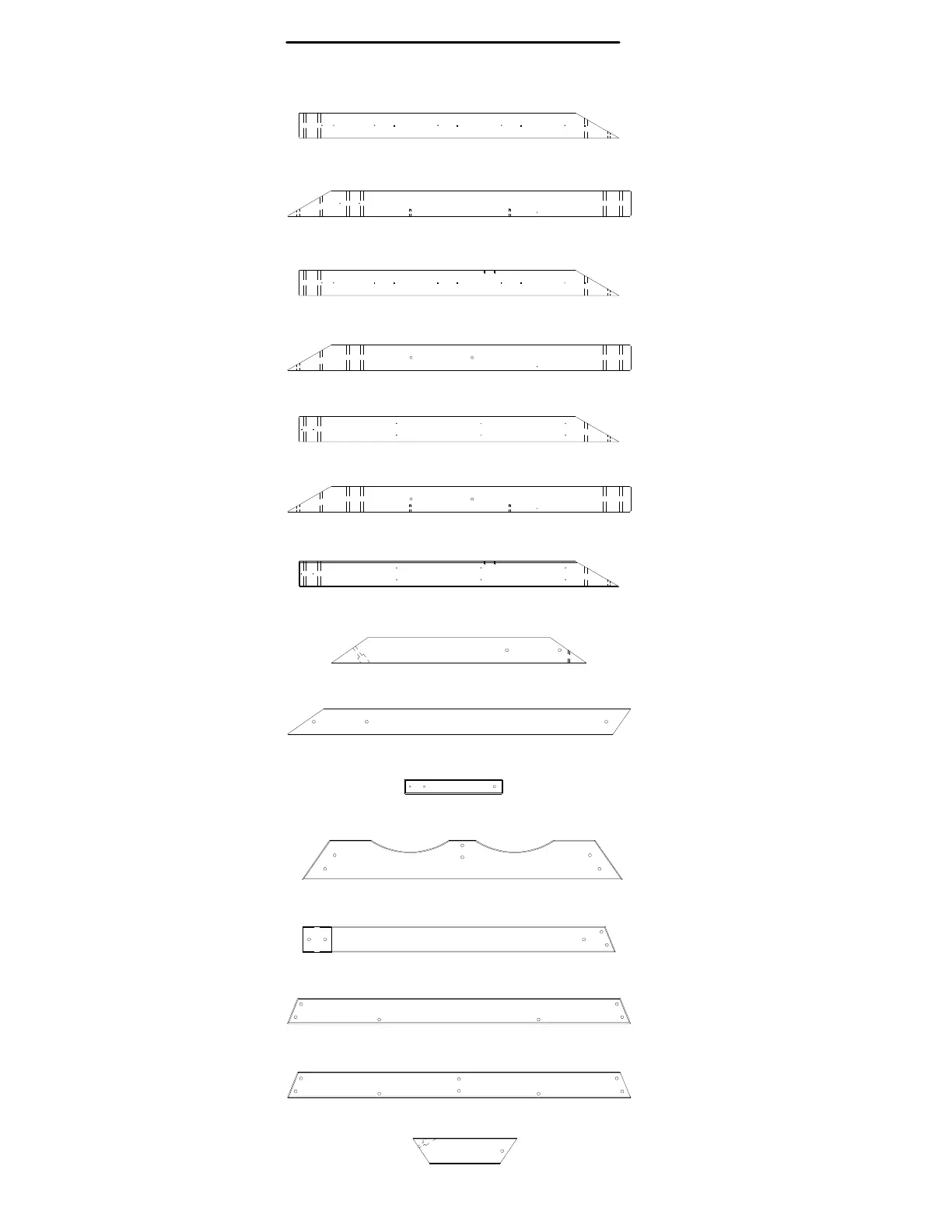

Wood Components
(NOT TO SCALE)
E2 - FRONT LOWER LEFT FORT LEG - W4L06277
1 3/8"x3 3/8"x42 7/8" (36x86x1090)
(1)
E3 - FRONT UPPER RIGHT FORT LEG - W4L06280
1 3/8"x3 3/8"x46" (36x86x1168)
(1)
E4 - FRONT LOWER RIGHT FORT LEG - W4L06381
1 3/8"x3 3/8"x42 7/8" (36x86x1090)
(1)
E5 - FORT LEG - W4L15011
1 3/8" x 3 3/8" x 46" (36 x 86 x 1168)
(1)
E6 - REAR LOWER LEFT FORT LEG - W4L06382
1 3/8"x3 3/8"x42 7/8" (36x86x1090)
(1)
E7 - FORT LEG - W4L15015
1 3/8" x 3 3/8" x 46" (36 x 86 x 1168)
(1)
E8 - REAR LOWER RIGHT FORT LEG - W4L06380
1 3/8"x3 3/8"x42 7/8" (36x86x1090)
(1)
E9 - UPPER ANGLE BRACE BOARD - W4L06301
1 3/8"x3 3/8"x34 1/8" (36x86x866)
(2)
E10 - LOWER ANGLE BRACE BOARD - W4L06303
1 3/8"x3 3/8"x46" (36x86x1168)
(2)
H1 - UNIVERSAL GROUND BOARD - W4L06276
1"x3 3/8"x42" (24x86x1066)
(4)
H2 - FLOOR RAIL - W4L12103
1"x3 3/8"x46" (24x86x1168)
(1)
H3 - FLOOR RAIL - W4L12104
1"x3 3/8"x46" (24x86x1168)
(1)
G1 - END SUPPORT - W4L07240-A
1"x5 1/4"x42 7/8" (24x134x1090)
(1)
H4 - ANGLE BRACE - W4L06561
1"x3 3/8"x14" (24x86x355)
(4)
F1 - TARP SUPPORT - W4L15014
1 3/8"x2"x13 1/4" (36x50x335)
(1)
