Backyard Discovery 1905016B - Page 15

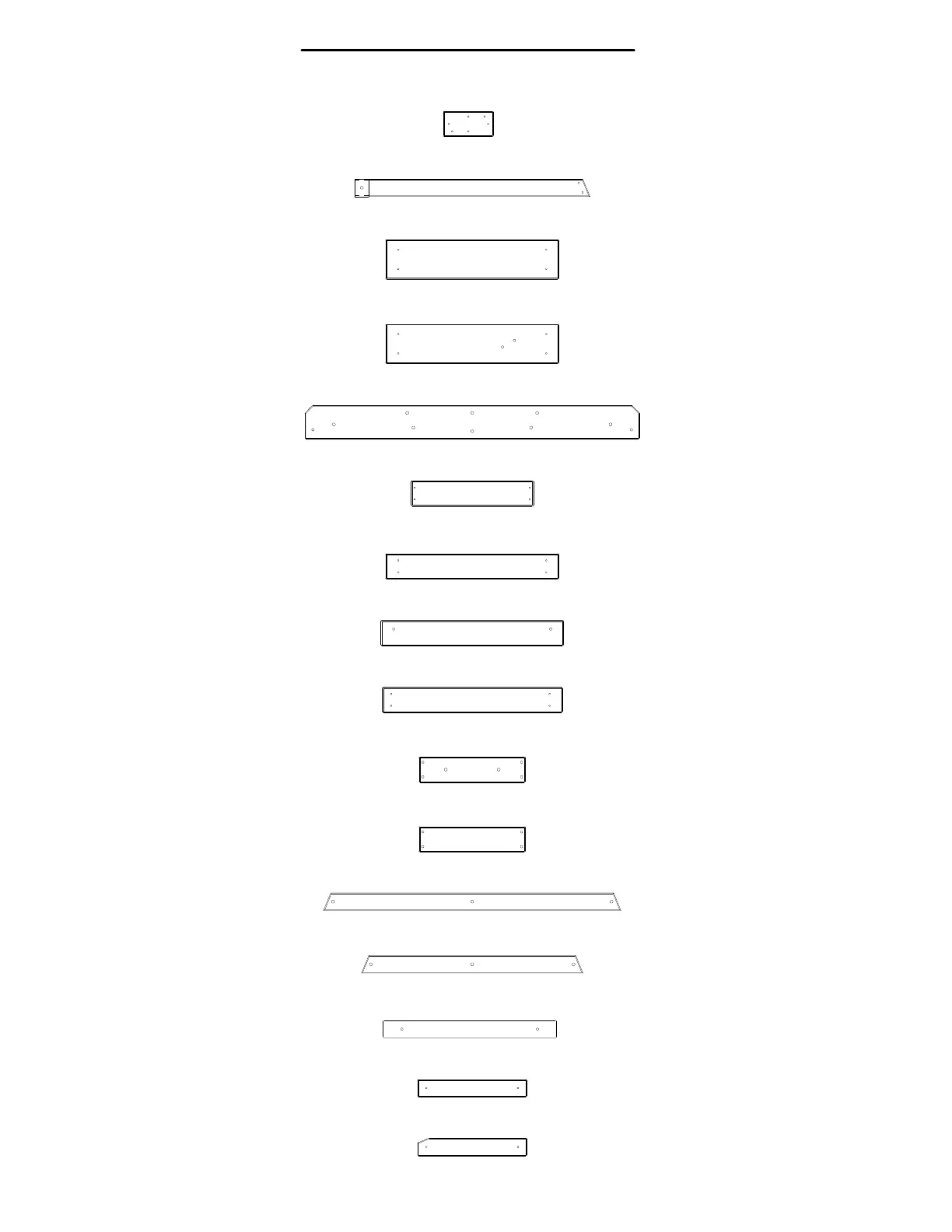

Parts Identification
Wood Components
(NOT TO SCALE)
J1 - SAFETY BOARD - W4L06295
1"x2 3/8"x31 5/8" (24x60x802)
(2)
K1 - ROCKWALL BOARD - W4L04792
5/8"x5 1/4"x23 1/4" (16x134x590)
(1)
K2 - ROCK BOARD - W4L15016
5/8" x 5 1/4" x 23 1/4" (16 x 134 x 590)
(4)
L1 - TOP RAIL - W4L15012
5/8" x 4 3/8" x 44 7/8" (16 x 112 x 1140)
(2)
M2 - FLOOR BOARD - W4L06287
5/8"x3 3/8"x16 3/8" (16x86x416)
(2)
M4 - TARP BOARD - W4L15013
5/8" x 3 3/8" x 24 1/2" (16 x 86 x 622)
(2)
M3 - GROUND BOARD - W4L04794
5/8"x3 3/8"x23 1/4" (16x86x590)
(2)
M77 - SLIDE BRACE - W4L04711
5/8"x3 3/8"x14 1/4" (16x86x362)
(1)
M78 - CENTER SLIDE BRACE - W4L04712
5/8"x3 3/8"x14 1/4" (16x86x362)
(2)
N1 - WALL RAIL - W4L06288
5/8"x2 3/8"x39 7/8" (16x60x1012)
(1)
N2 - WALL RAIL - W4L06289
5/8"x2 3/8"x29 5/8" (16x60x754)
(1)
N4 - WALL BOARD - W4L06296
5/8"x2 3/8"x14 5/8" (16x60x372)
(4)
N5 - WALL BOARD - W4L06297
5/8"x2 3/8"x14 5/8" (16x60x372)
(2)
M5 - BOARD - W4L11800
5/8"x3 3/8"x24 1/8" (16x86x612)
(1)
H5 - UPRIGHT BRACE - W4L13751
1"x3 3/8"x6 3/4" (24x86x170)
(4)
N3 - TARP SUPPORT - W4L15018
5/8"x2 3/8"x23 1/4" (16x60x590)
(1)
15
