Backyard Discovery 1905016B - Page 16

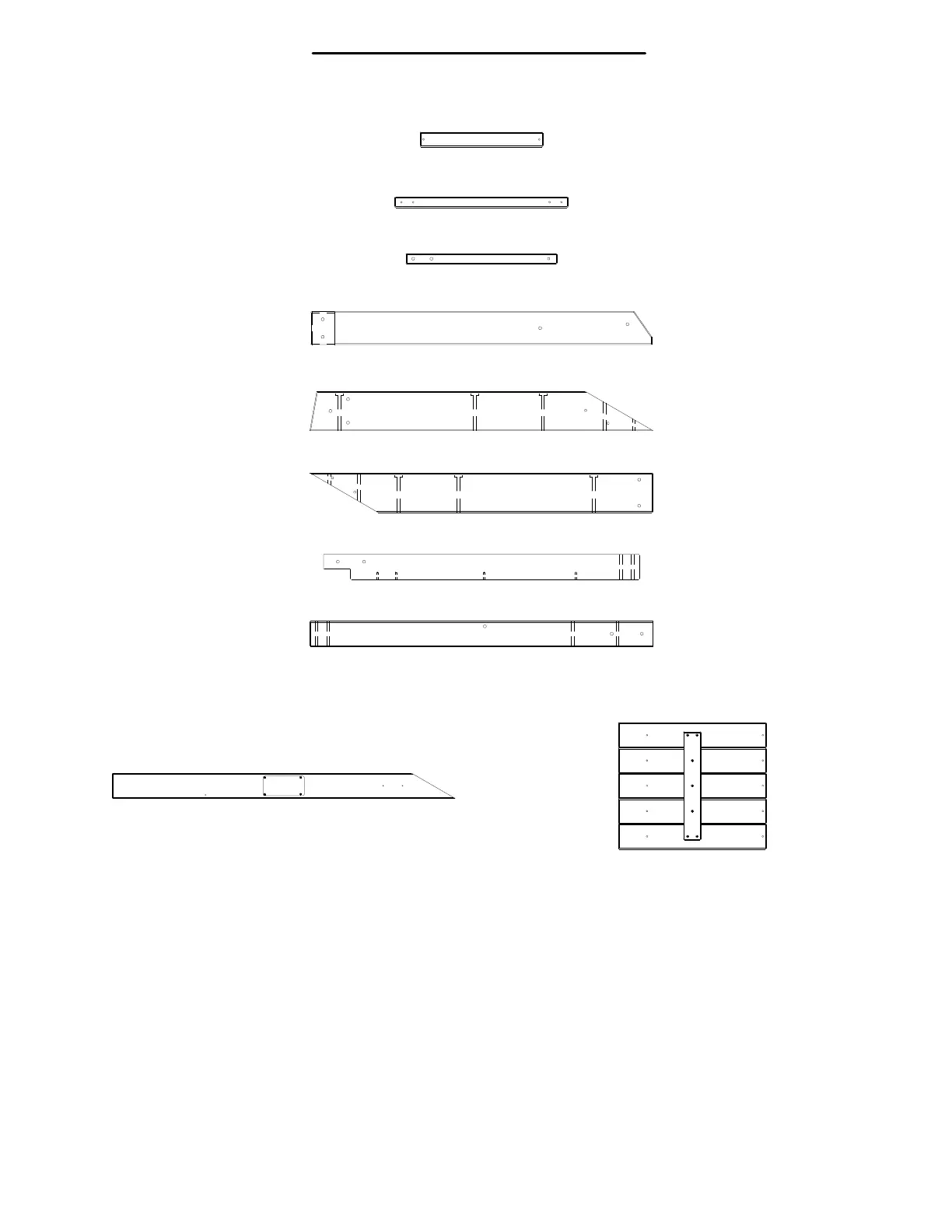

Parts Identification
Wood Components
(NOT TO SCALE)
P1 - LADDER RUNG - W4L06283
1 3/8"x1 3/8"x23 1/4" (36x36x590)
(3)
P2 - TARP SUPPORT - W4L15017
1 3/8"x1 3/8"x20 1/4" (36x36x514)
(1)
Q1 - SWING BEAM GROUND BOARD - W4L06304
1"x4 3/8"x45 5/8" (24x112x1160)
(2)
SB1 - SWING BEAM - W4L06298
5 1/4"x2"x46" (134x50x1168)
(1)
W2 - SWING BEAM SUPPORT - W4L06300
2"x3 3/8"x46" (50x86x1168)
(1)
W1 - SWINGBEAM SUPPORT - W4L15010
2"x3 3/8"x42 3/8" (50x86x1075)
(1)
(1) E1 - FRONT UPPER LEFT FORT LEG - W2A02876
1 3/8"x3 3/8"x46" (36x86x1168)
(2) FP1 - FLOOR PANEL - W2A01901
1 1/4"x19 7/8"x16 7/8" (32x504x430)
SB2 - SWING BEAM - W4L06299
5 1/4"x2"x46" (134x50x1168)
(1)
N6 - FLOOR BOARD - W4L06286
5/8"x2"x16 1/2" (16x50x418)
(1)
16
