Backyard Discovery 1905016B - Page 24

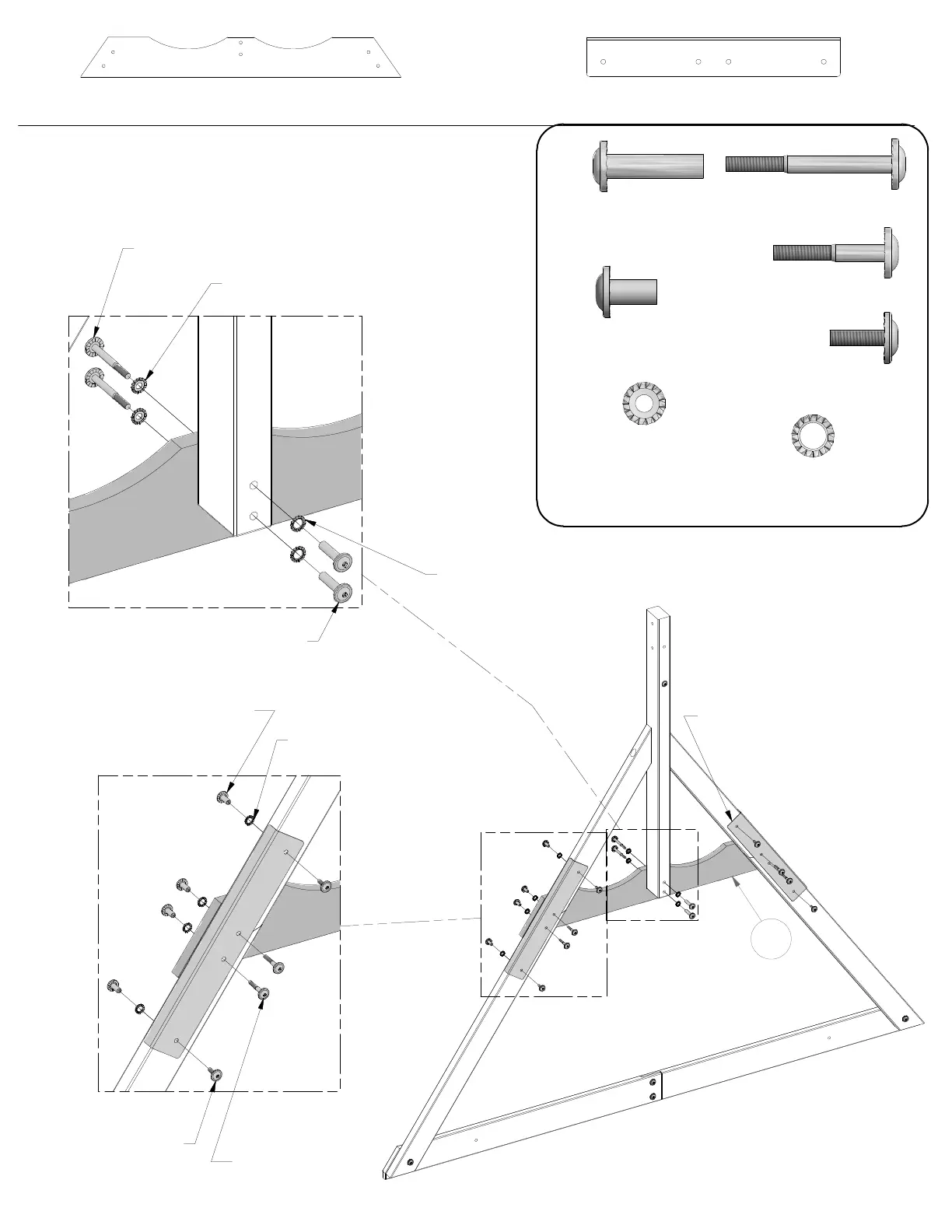

SWING BEAM ASSEMBLY
STEP 4
METAL L-BRACKET - BLUE
(2 PLCS)
G1
BOLT WH 5/16x 1
(4 PLCS)
BOLT WH 5/16x 3
(2 PLCS)
NUT BARREL WH 5/16x1 3/4
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
BOLT WH 5/16x2
(4 PLCS)
WASHER LOCK EXT 12x19
(8 PLCS)
NUT BARREL WH 5/16x7/8
(8 PLCS)
G1 - END SUPPORT - W4L06302
1"x5 1/4
"x42 7/8" (24x134x1090)
(1)
- METAL L-BRACKET - BLUE - A4M00938
(2)
BOLT WH 5/16x3
H100016
(2)
BOLT WH 5/16x2
H100012
(4)
BOLT WH 5/16x1
H100008
(4)
NUT BARREL WH
5/16x1 3/4
H100007
(2)
NUT BARREL WH
5/16x7/8
H100005
(8)
WASHER LOCK EXT
12x19
H100031
(10)
WASHER LOCK EXT
8x19
H100030
(2)
24
