Backyard Discovery 1905016B - Page 25

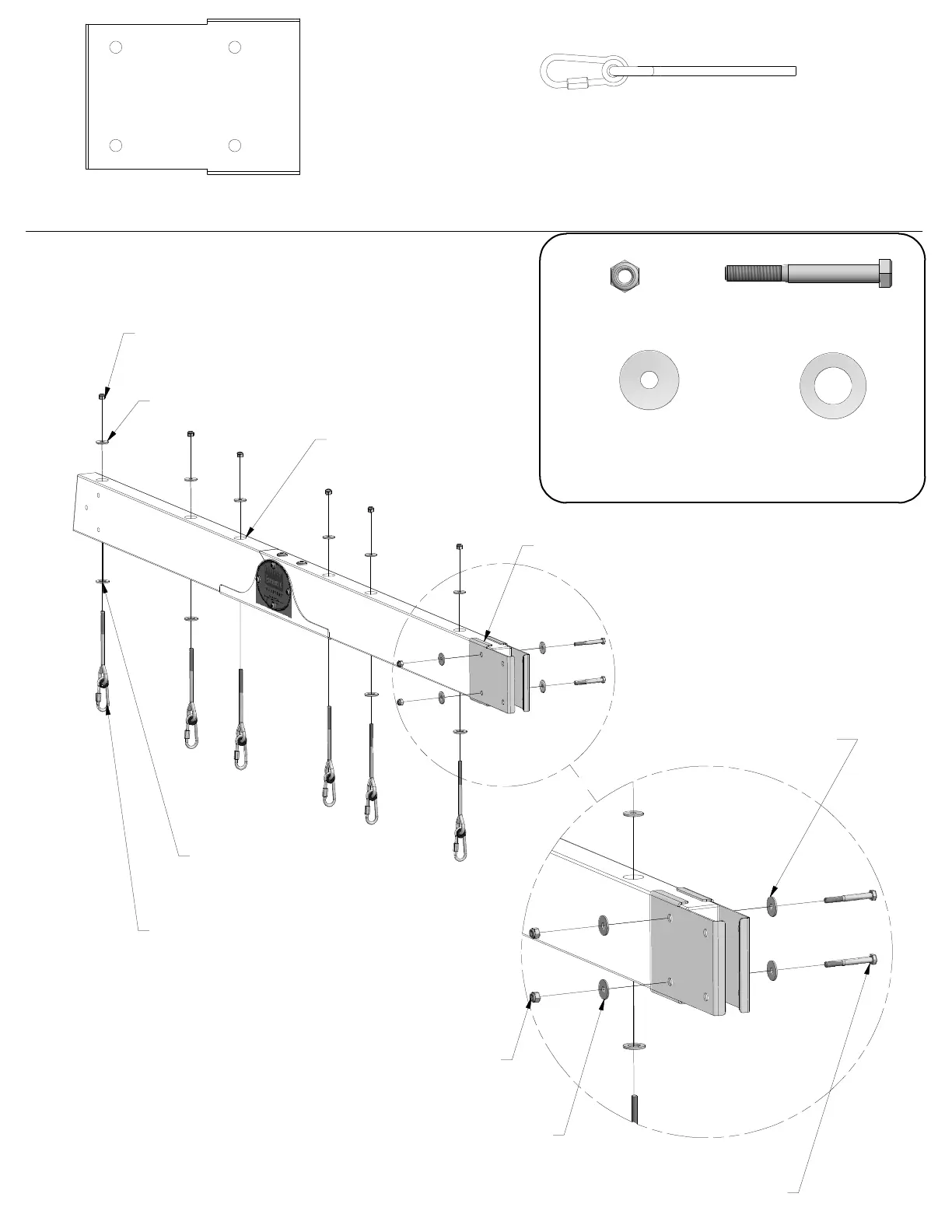

SWING BEAM ASSEMBLY
STEP 5
NUT LOCK 5/16
(6 PLCS)
SWING BEAM SINGLE CLAMP BLUE
(2 PLCS)
WASHER FLAT 8x27
(6 PLCS)
WASHER SAFETY 17x30
(4 PLCS)
9 1/2" SWING HANGER QUICK LINK
(6 PLCS)
NUT LOCK 5/16
(2 PLCS)
WASHER FLAT 8x27
(2 PLCS)
BOLT HEX 5/16x2-3/4
(2 PLCS)
- SWING BEAM SINGLE CLAMP BLUE - A4M01000
(2)
- 9 1/2" SWING HANGER QUICK LINK - H100099
(6)
BOLT HEX 5/16x2-3/4
H100047
(2
)
WASHER SAFETY
17x30
H100103
(4)
NUT LOCK 5/16
H100110
(8)
WASHER FLAT 8x27
H100105
(10)
LEAVE SINGLE CLAMPS
LOOSE AND TIGHTEN
WHEN INSTALLED ON
THE FORT.
WASHER FLAT 8x27
(2 PLCS)
NOTE:
POSITION
THE SWING BEAM WITH
THE ID BRACKET RIGHT READING.
THEN INSTALL THE SWING HANGERS
WITH THE THREADED END TO THE TOP.
TOP
LARGE HOLES UP
25
