Backyard Discovery 1905016B - Page 26

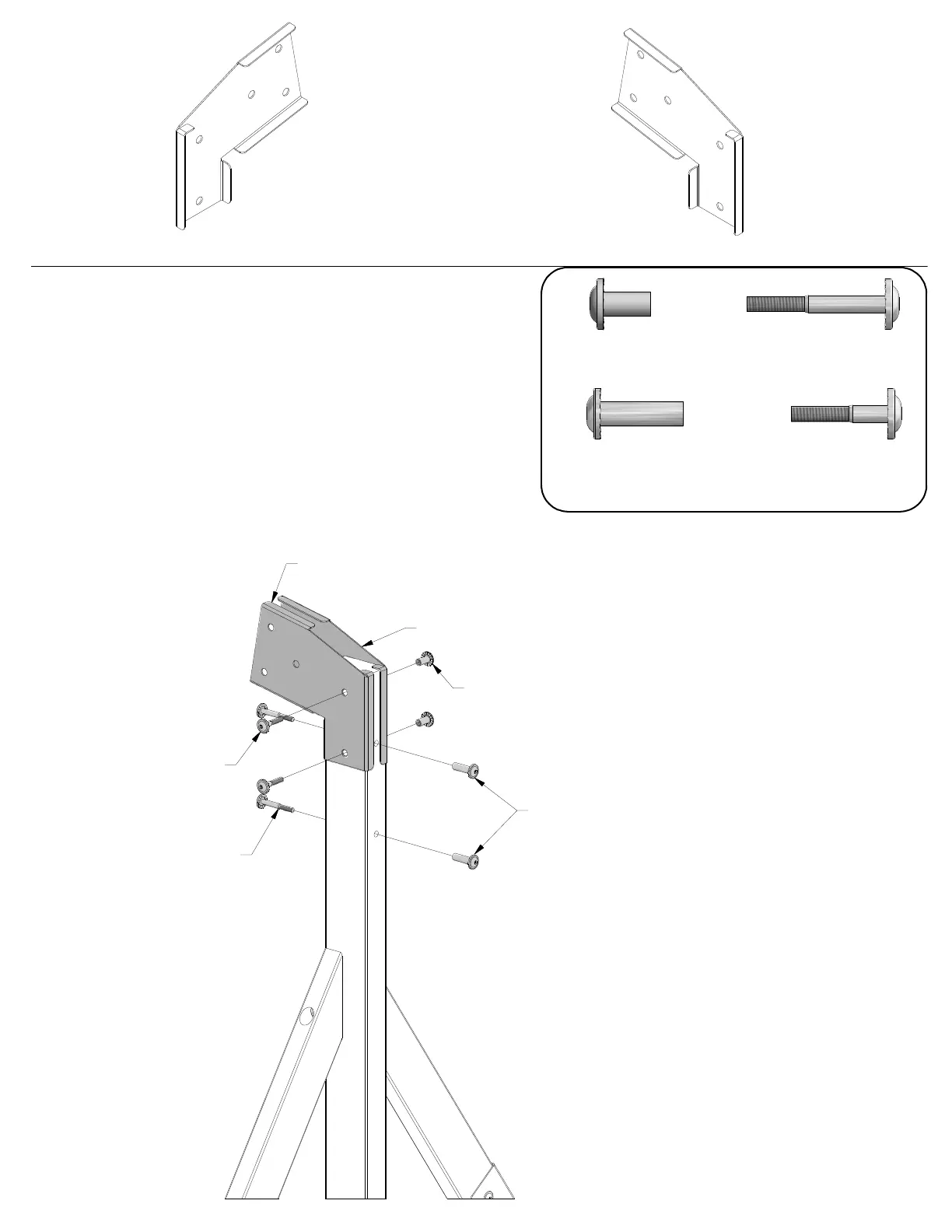

SWING BEAM ASSEMBLY
STEP 6
NUT BARREL WH 5/16x7/8
(2 PLCS)
NUT BARREL WH 5/16x1 1/2
(2 PLCS)
BOLT WH 5/16x2 1/2
(2 PLCS)
BOLT WH 5/16x1 3/4
(2 PLCS)
SWING BEAM EXT. BRACKET BLUE - LEFT
(2 PLCS)
SWING BEAM EXT BRACKET BLUE - RIGHT
(2 PLCS)
THESE (2) BOLTS ARE REQUIRED
FOR IMPROVED STRUCTURAL
STRENGTH OF 'W2' SUPPORT
AND MUST BE INSTALLED.
- SWING BEAM EXT. BRACKET BLUE - LEFT - A4M00511
(1)
- SWING BEAM EXT BRACKET BLUE - RIGHT - A4M00512
(1)
BOLT WH 5/16x2 1/2
H100014
(2)
BOLT WH 5/16x1 3/4
H100011
(2)
NUT BARREL WH
5/16x7/8
H100005
(2)
NUT BARREL WH
5/16x1 1/2
H100006
(2)
26
