Backyard Discovery 1905016B - Page 34

BOTTOM

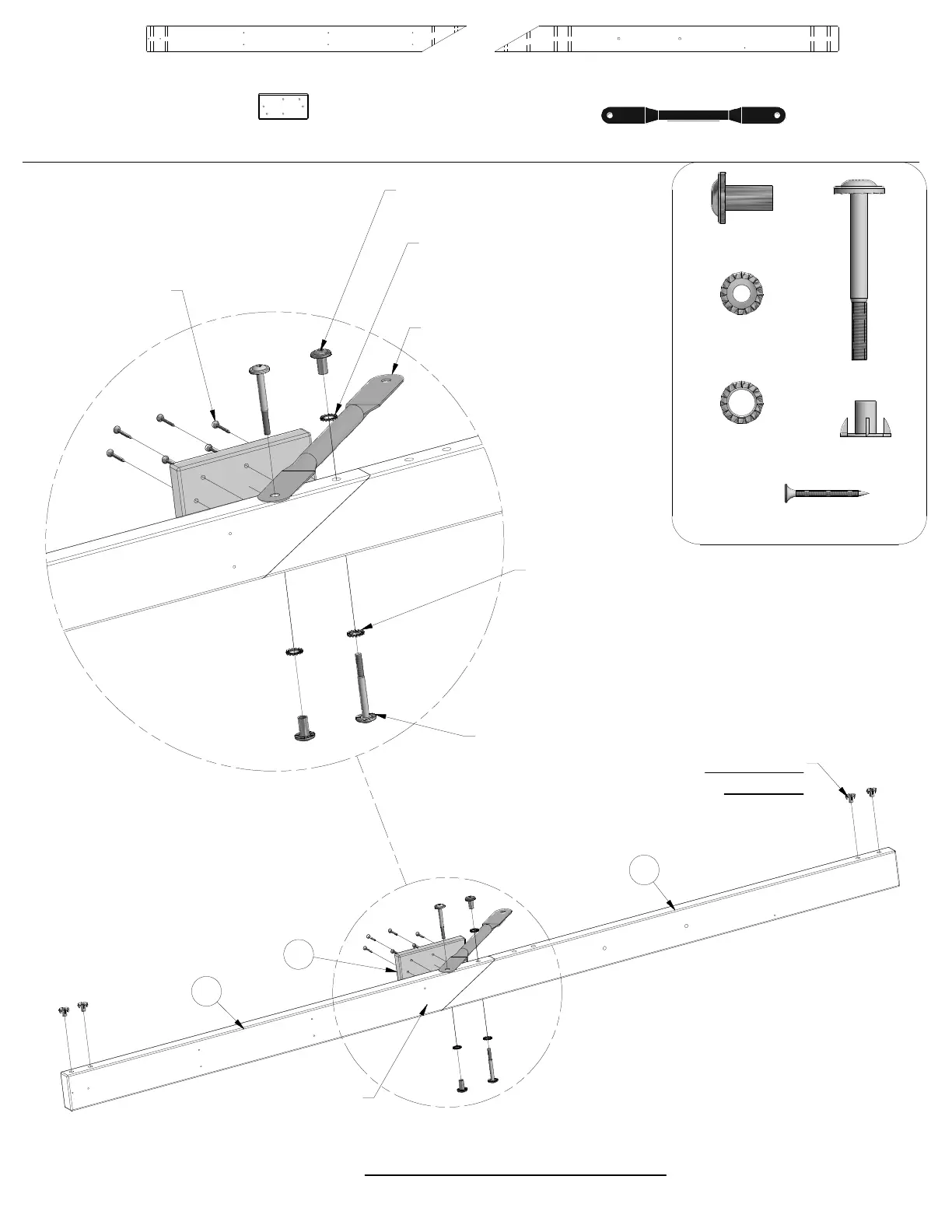

STEP 3
TOP
BOTTOM
TOP
NUT BARREL
WH 5/16x7/8
(2)
WASHER
LOCK EXT
8x19
(1)
WASHER
LOCK EXT
12x19
(2)
BOLT WH
5/16x3
(2)
T-NUT 5/16
(4)
BACK LEFT UPRIGHT ASSEMBLY
E5 - FORT LEG - W4L15011
1 3/8" x 3 3/8" x 46" (36 x 86 x 1168)
(1)
E6 - REAR LOWER LEFT FORT LEG - W4L06382
1 3/8"x3 3/8"x42 7/8" (36x86x1090)
(1)
- METAL DECK BRACE 380 C/C BLUE - A4M00999
(1)
METAL DECK BRACE 380 C/C BLUE
(1 PLC)
WASHER LOCK EXT 12x19
(2 PLC)
NUT BARREL WH 5/16x7/8
(2 PLCS)
T-NUT 5/16
(4 PLCS)
NOTE HOLE PLACEMENT
AND LOCATIONS
E5
E6
WASHER LOCK EXT 8x19
(1 PLCS)
BOLT WH 5/16x3
(2 PLCS)
SCREW PFH 8x1-1/2"
(6 PLCS)
H5 - UPRIGHT BRACE - W4L13751
1"x3 3/8"x6 3/4" (24x86x170)
(1)
SCREW PFH
8x1-1/2"
(6)
H5
34
