Backyard Discovery 1905016B - Page 35

BOTTOM
TOP

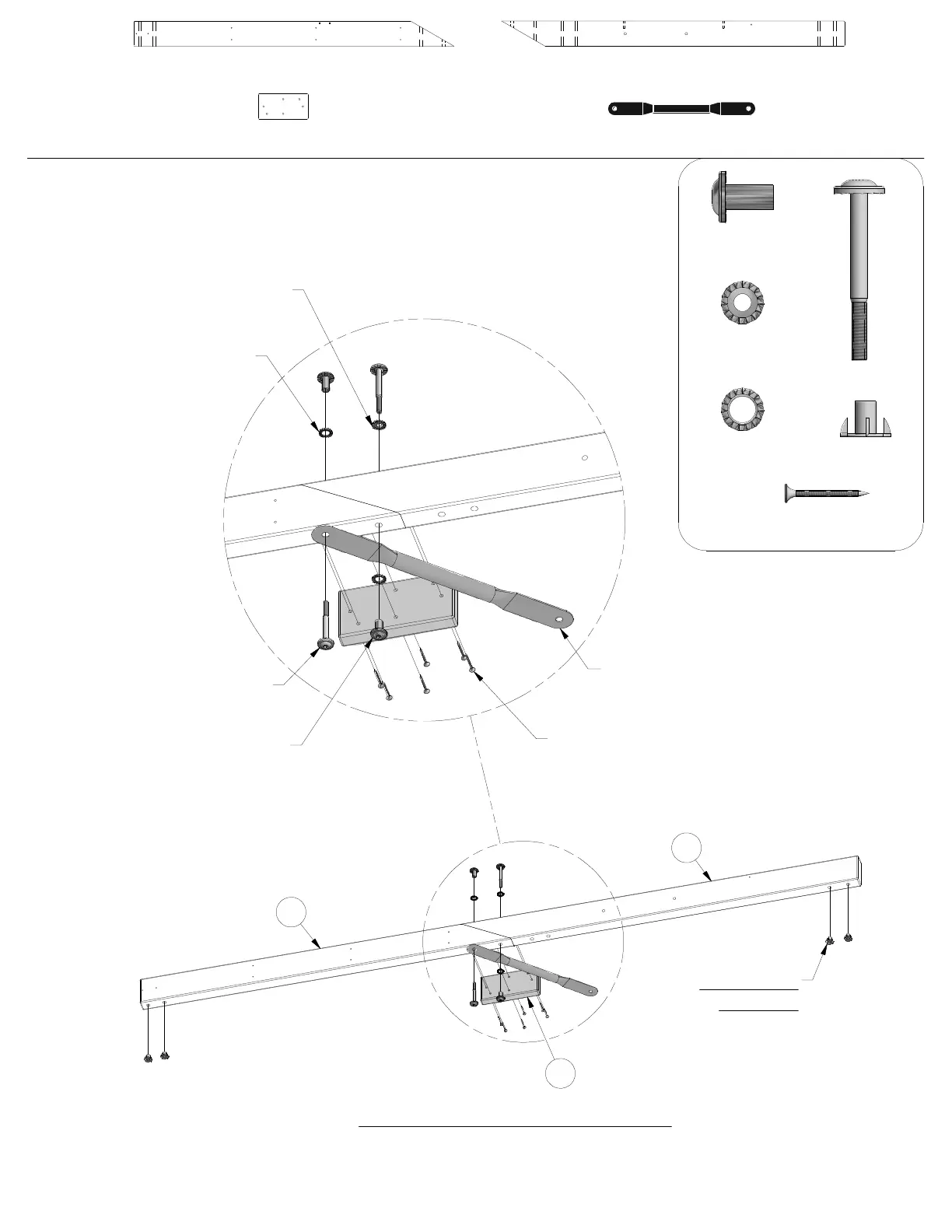

STEP 4
BOTTOM
TOP
BACK RIGHT UPRIGHT ASSEMBLY
NUT BARREL
WH 5/16x7/8
(2)
BOLT WH
5/16x3
(2)
WASHER
LOCK EXT
8x19
(1)
WASHER
LOCK EXT
12x19
(2)
T-NUT 5/16
(4)
E7 - FORT LEG - W4L15015
1 3/8" x 3 3/8" x 46" (36 x 86 x 1168)
(1)
E8 - REAR LOWER RIGHT FORT LEG - W4L06380
1 3/8"x3 3/8"x42 7/8" (36x86x1090)
(1)
- METAL DECK BRACE 380 C/C BLUE - A4M00999
(1)
T-NUT 5/16
(4 PLCS)
METAL DECK BRACE 380 C/C BLUE
(1 PLC)
E8
E7
WASHER LOCK EXT 8x19
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
NUT BARREL WH 5/16x7/8
(2 PLCS)
BOLT WH 5/16x3
(2 PLCS)
SCREW PFH 8x1-1/2"
(6 PLCS)
H5 - UPRIGHT BRACE - W4L13751
1"x3 3/8"x6 3/4" (24x86x170)
(1)
SCREW PFH
8x1-1/2"
(6)
H5
