Backyard Discovery 2105324 - Page 17

ALIGN POST FOOT & DRILL
1/8" PILOT HOLES FOR THE
ATTACHMENT HARDWARE.
FOR EASE OF ASSEMBLY WE RECOMMEND
USING SAW HORSES FOR STEPS 1 THRU 6.
ǻÝƻʲ
ŗŷǻrʲ

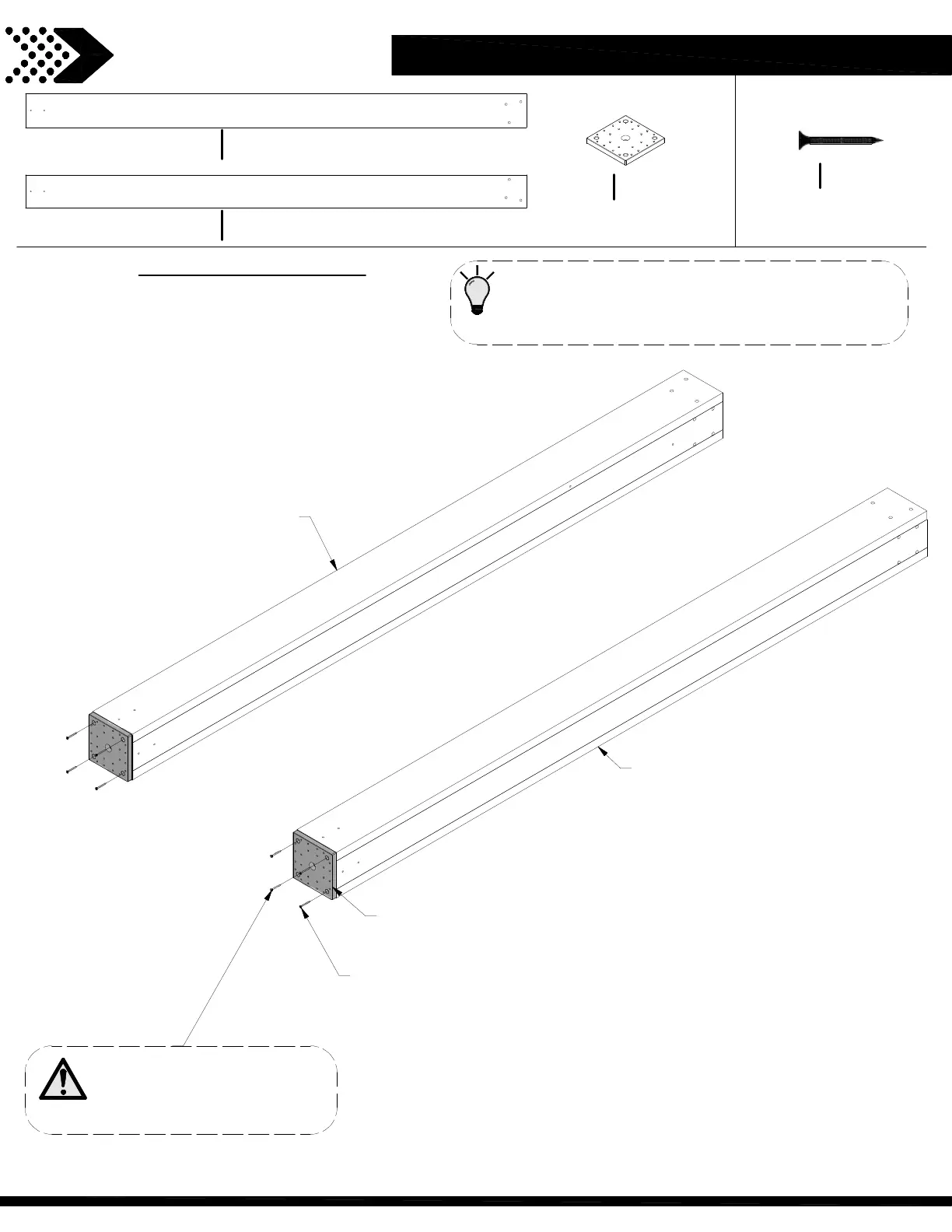

STEP 1
6x6 POST FOOT
(x4)
A6P00308
P01
(x2)
POST - W2A02873
6"x6"x89 1/2" (152x152x2274)
P02
(x2)
POST - W2A02874
6"x6"x89 1/2" (152x152x2274)
ˡ˟˟ ʹɮ˧ʺ
ǢNNJrɟ˚ˠˠˀˡ˃
ˢ˟˧ ʹɮˡʺ
˥ɮ˥ƻŷǢǻ®ŷŷǻ
ƻ˟ˠ ʹɮˠʺ
ƻŷǢǻ
ƻ˟ˡ ʹɮˠʺ
ƻŷǢǻ
COMPLETE THIS STEP TWICE
SCREW PFH BLK
8x1 1/2
(x16)
H100200
17
