Backyard Discovery 2105324 - Page 37

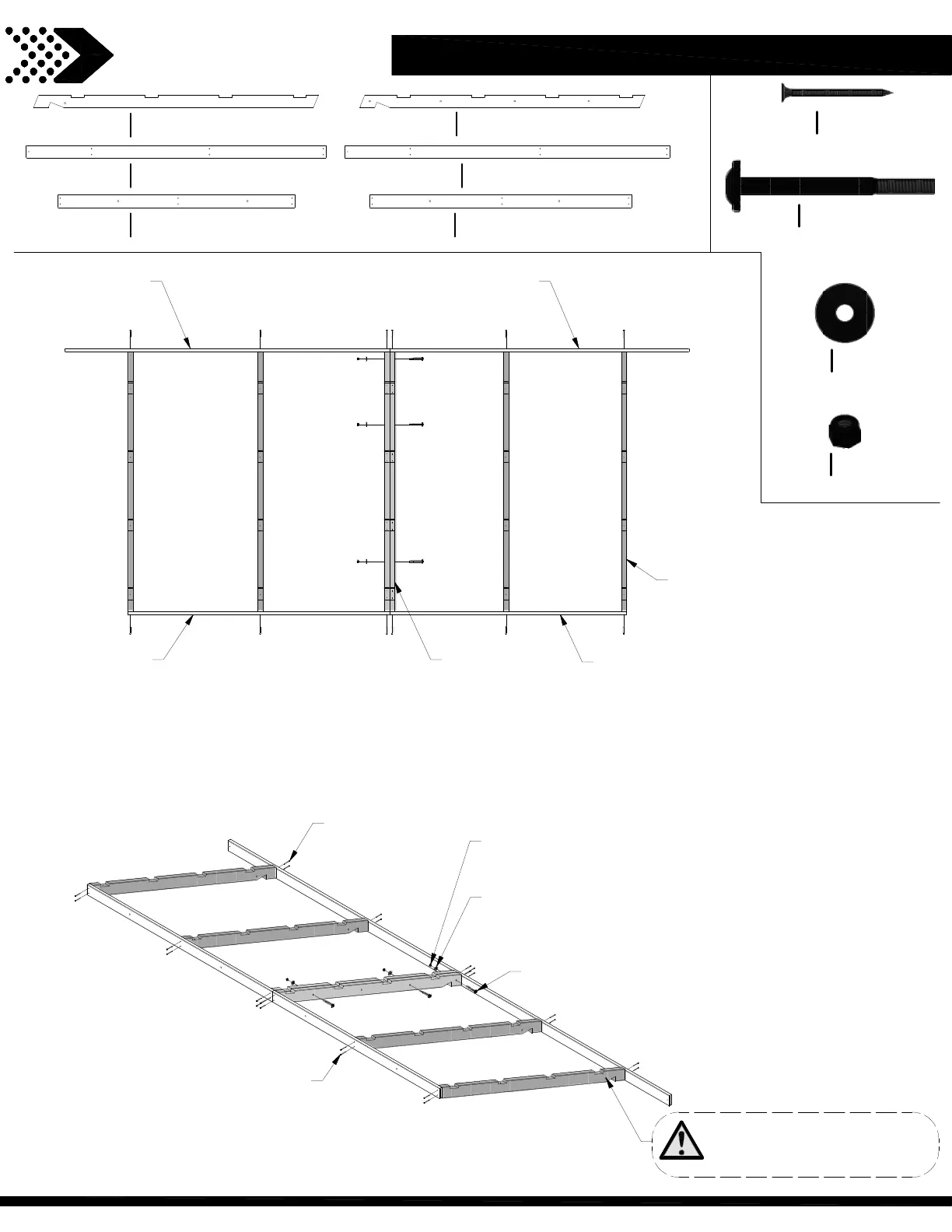

STEP 20
RAFTER - W4L14988
1 3/8"x3 3/8"x76 3/8" (36x86x1941)
E01
(x4)
FASCIA - W4L14987
1"x3 3/8"x80 3/8" (24x86x2040)
H02
(x1)
FASCIA - W4L15005
1"x3 3/8"x63 1/2" (24x86x1614)
H06
(x1)
FASCIA - W4L15006
1"x3 3/8"x70 1/8" (24x86x1783)
H07
(x1)
FASCIA - W4L14993
1"x3 3/8"x87" (24x86x2209)
H03
(x1)
RAFTER - W4L15004
1 3/8"x3 3/8"x76 3/8" (36x86x1941)
E05
(x2)
SCREW PFH BLK
8x2
(x24)
H100391
Ë˟ˢ ʹɮˠʺ
®ǢNÝ
Ë˟ˡ ʹɮˠʺ
®ǢNÝ
Ë˟˦ ʹɮˠʺ
®ǢNÝ
Ë˟˥ ʹɮˠʺ
®ǢNÝ
r˟ˠ ʹɮˣʺ
NJ®ǻrNJ
r˟ˤ ʹɮˡʺ
NJ®ǻrNJ
ˢ˨ˠ ʹɮˠˡʺ
ǢNNJrɟ˚ˡ˃
ˢ˨ˠ ʹɮˠˡʺ
ǢNNJrɟ˚ˡ˃
NOTE LOCATION OF HOLES
AND NOTCHES.
BOLT WH BLK
5/16x3-1/2
(x3)
H100503
WASHER FLAT
BLK
8x27
(x3)
H100478
NUT LOCK BLK
5/16
(x3)
H100479
ˤ˟ˢ ʹɮˢʺ
Dŷĵǻ˚ˢˠˀˡ˃
ˣ˦˧ ʹɮˢʺ
ɟǢËrNJ˚˧ɮˡ˦
ˣ˦˨ ʹɮˢʺ
ŗȕǻ˚ˤˀˠ˥˃
37
