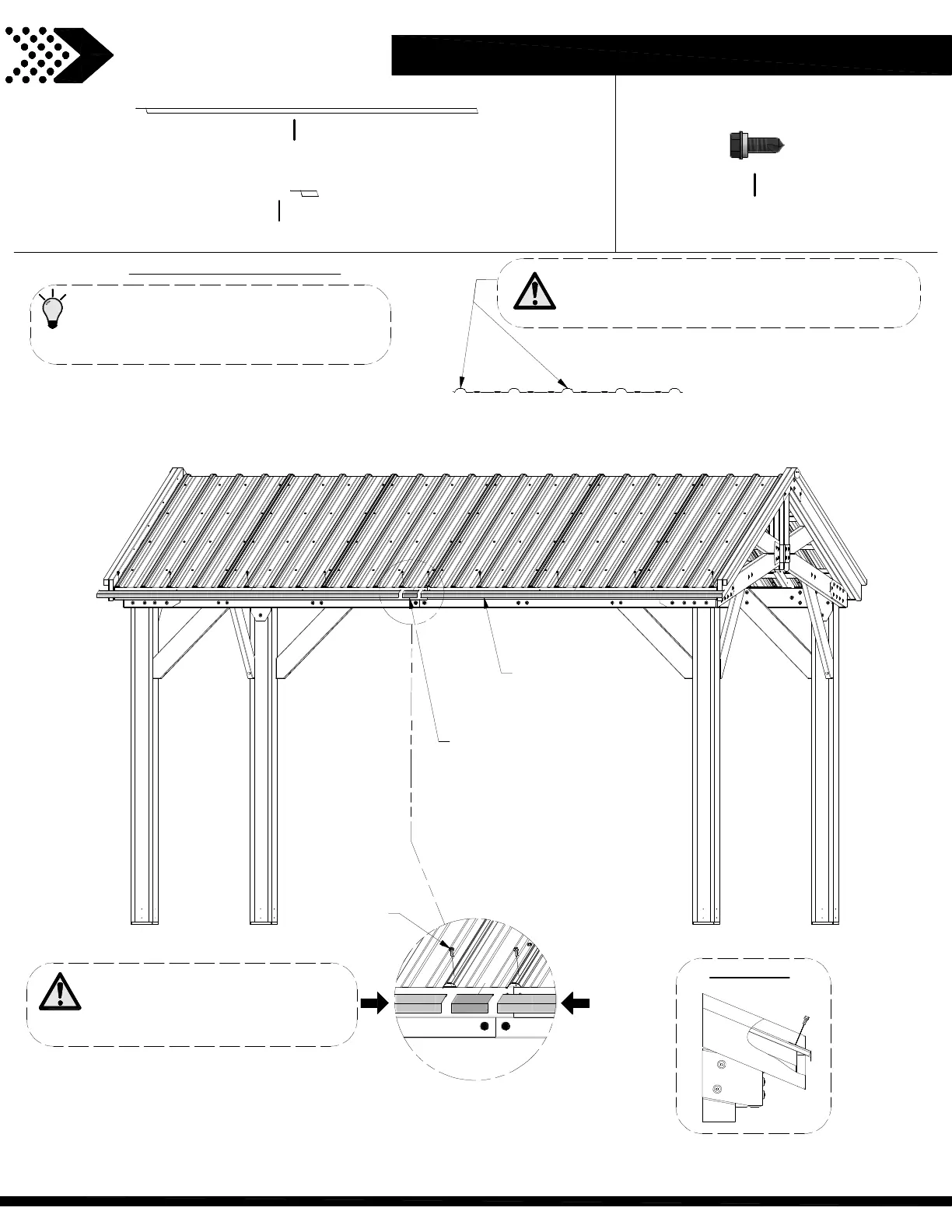

STEP 28
ROOF EDGE TRIM
(x4)
A4M01254
ROOF EDGE TRIM SPLICE
(x2)
A4M00983
SCREW
TAPPING
1/4x3/4
(x20)
H100759
DUE TO MULTIPLE LAYERS OF METAL ON THE
EDGE TRIM, IT IS RECOMMENDED THAT A 1/8"
DRILL BIT IS USED TO CREATE STARTER HOLES.
SCREWS GO THROUGH EDGE TRIM INTO THE TOP
OF THE RIBS IN THE APPROXIMATE LOCATIONS SHOWN.
SLIDE EDGE TRIM INTO SPLICE.
ENSURE THAT BOTH ENDS ARE FLUSH
WITH EDGE OF ROOF PANELS.
˦ˤ˨
ʹɮˠ˟ʺ
ǢNNJrɟ˚ˢˀˣ˃
ŗŷǻrʲ
COMPLETE ON BOTH SIDES
ˡˤˣ
ʹɮˡʺ
NJŷŷ®r^µrǻNJÝō
˨˧ˢ
ʹɮˠʺ
NJŷŷ®r^µrǻNJÝōǢƻĵÝNr
SIDE VIEW
45
