PANEL BRACKET
(1)
A4M01193
PANEL BRACKET
A4M
(
1
)
01191

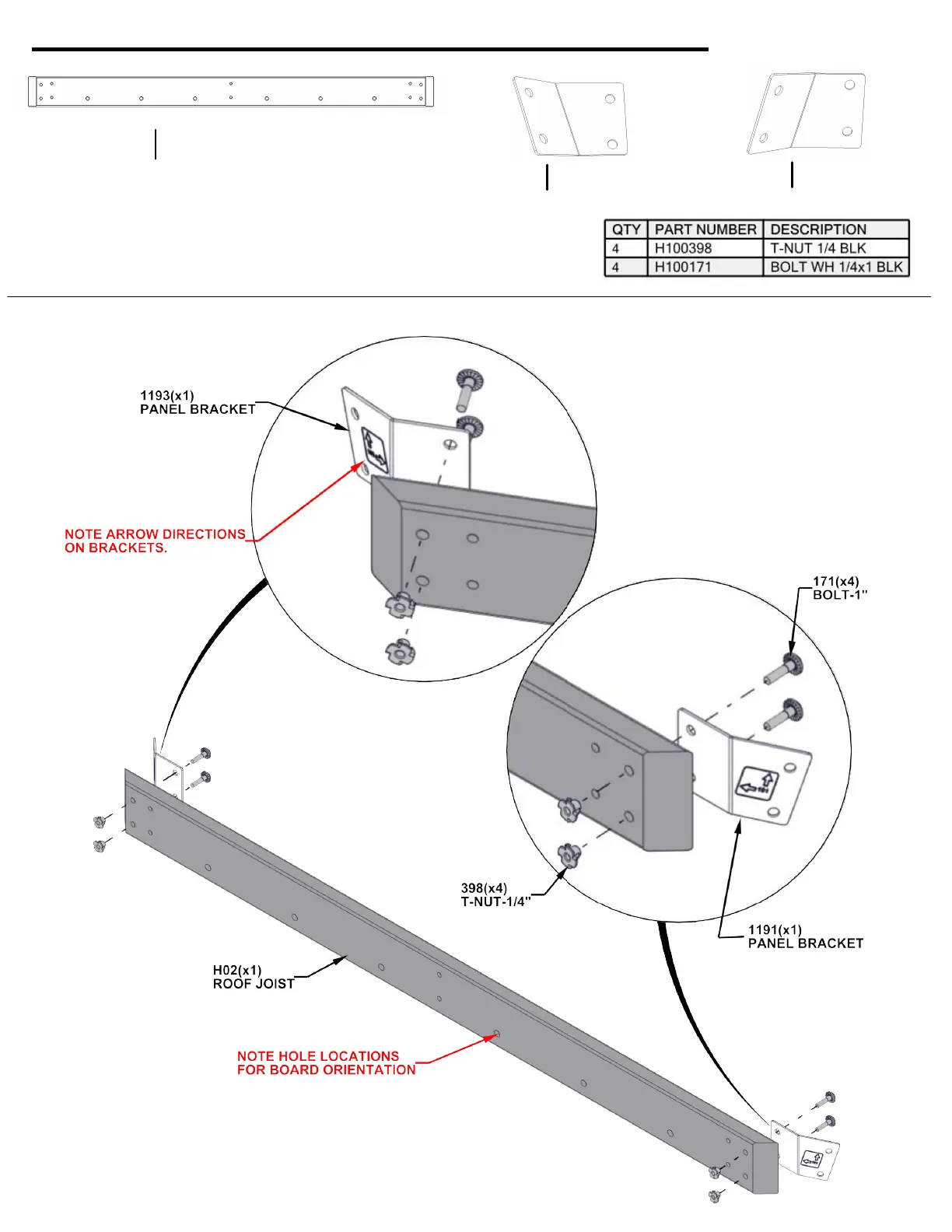

STEP 14 - 14FT ROOF PANEL ASSEMBLY
ROOF JOIST- W4L16283
1"x3 3/8"x46 3/4" (24x86x1188)
H02
(1)
INSERT T-NUTS FIRST
HAND TIGHTEN ONLY
33
