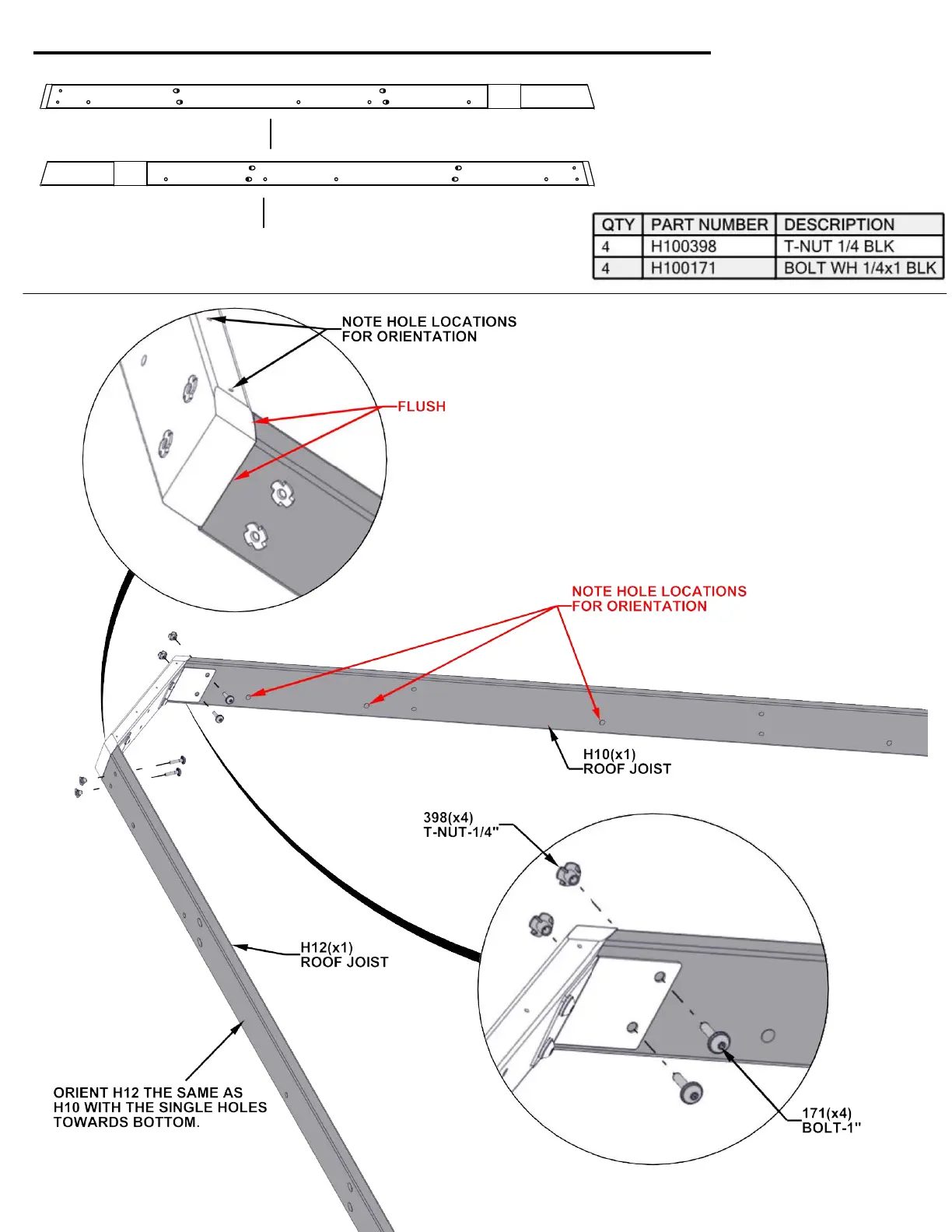

STEP 23 - 10FT ROOF PANEL ASSEMBLY
ROOF JOIST-W4L16309
1"
x3 3/8"x76 7/8" (24x86x1952)
H10
(
1
)
ROOF JOIST-W4L16308
1"X3 3/8"X76 3/4" (24x86x195
2)
H12
(
1
)
45
