Qty
PART NUMBER DESCRIPTION
38
H1
00391 SCREW PFH 8 X 2 BLK
TIPS:
• ALIGN PURLIN PILOT HOLES WITH RAFTER PILOT HOLES
• ATTACH SCREWS FROM THE CENTER AND
WORK
OUTWARD
• H12 AND H10 BOARDS DO NOT HAVE PILOT HOLES FOR
OUTSIDE EDGE SCREWS.
• USING
THE
PURLINS AS A GUIDE AND A 1/8" DRILL BIT, DRILL
PILOT HOLES INTO H12/H10 BOARDS.
H13 (x1)
PURLIN
391
(x38)
SCREW-2"
H14 (x1)
PURLIN
H10
IF PURLINS OVERHANG
MORE
THAN
5/8",
CUT
DOWN
TO
5/8"

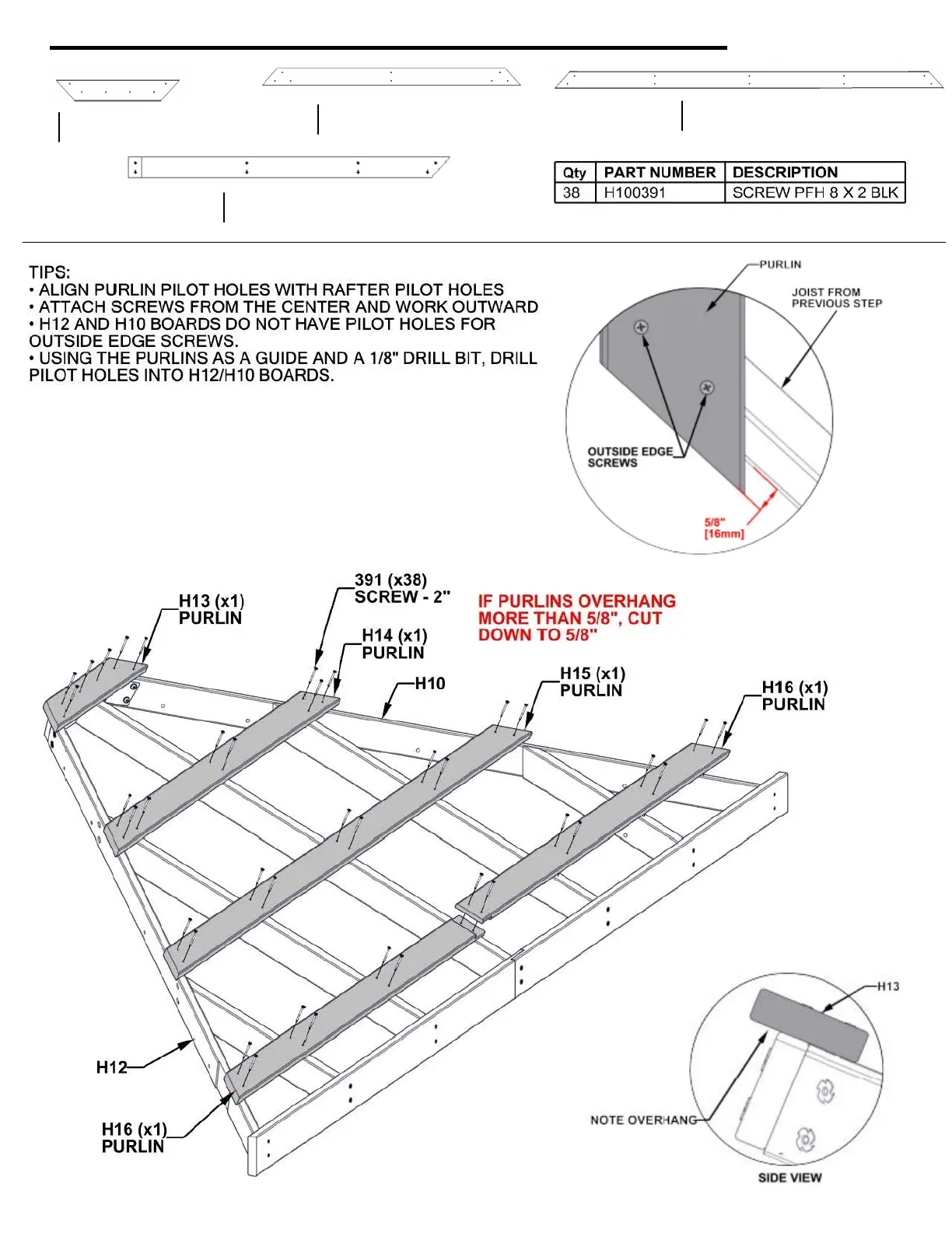

STEP 26 - 10FT ROOF PANEL ASSEMBLY
ROOF JOIST - W4L16303
1"x3 3/8"x20 1/4" (24x86x514)
H13
(1)
PURLIN - W4L16304
1"x3 3/8"x50 1/16" (24x86x1272)
H14
(1)
PURLIN - W4L16305
1"x3 3/8"x79 7/8" (24x86x2030)
H15
(1)
PURLIN - W4L16922
1"x3 3/8"x56" (24x86x1423)
H16
(2)
To Next Page
