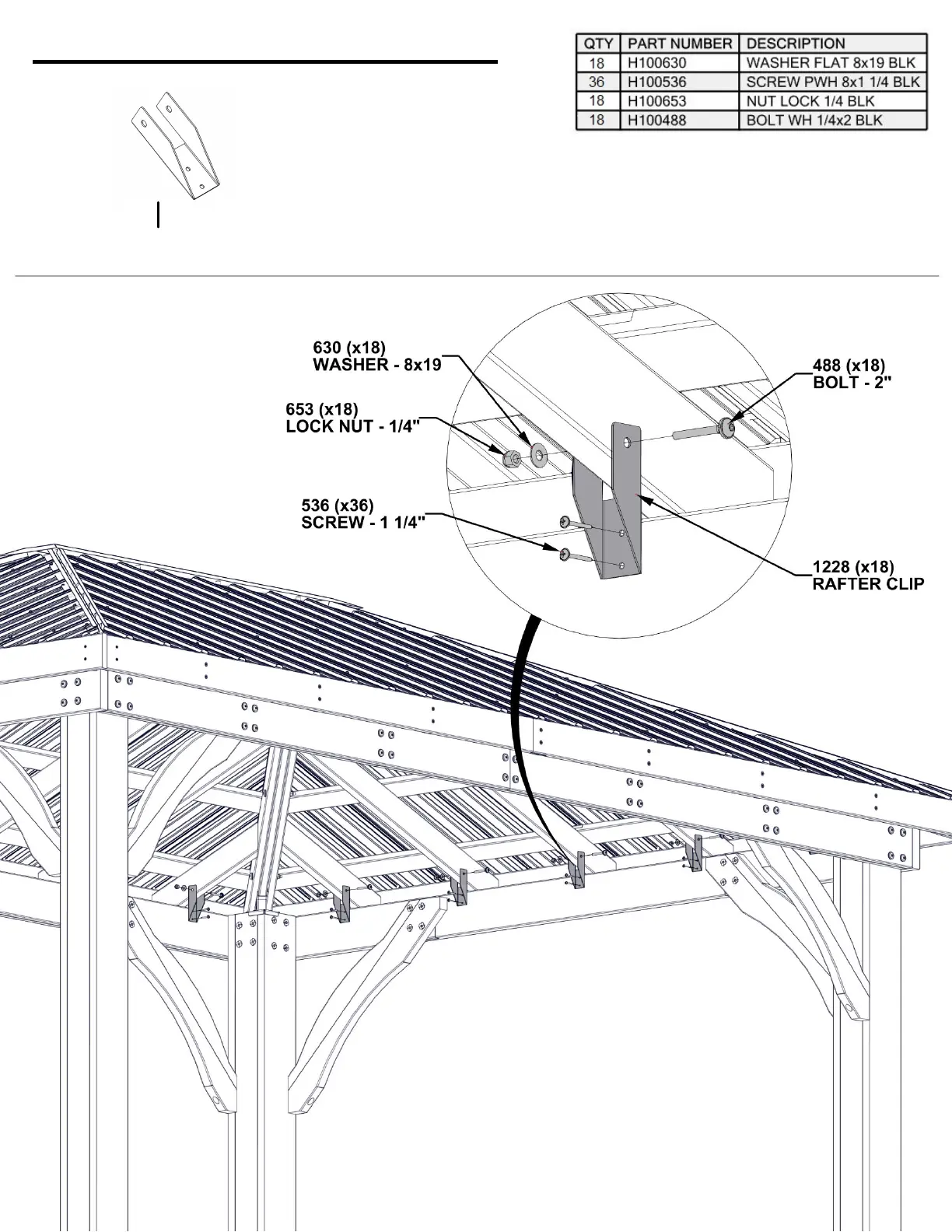

STEP 36 - ROOF ASSEMBLY
RAFTER CLIP
(18)
A4M01228
TIPS:
• ATTACH RAFTER CLIPS FIRST WITH 2"
BOLTS.
• USING THE BRACKET AS A TEMPLATE
AND A 1/8" DRILL BIT, DRILL PILOT
HOLES FOR THE H100536 SCREWS.
• DRILL PILOT HOLES APPROXIMATELY
1/2" DEEP.
63
