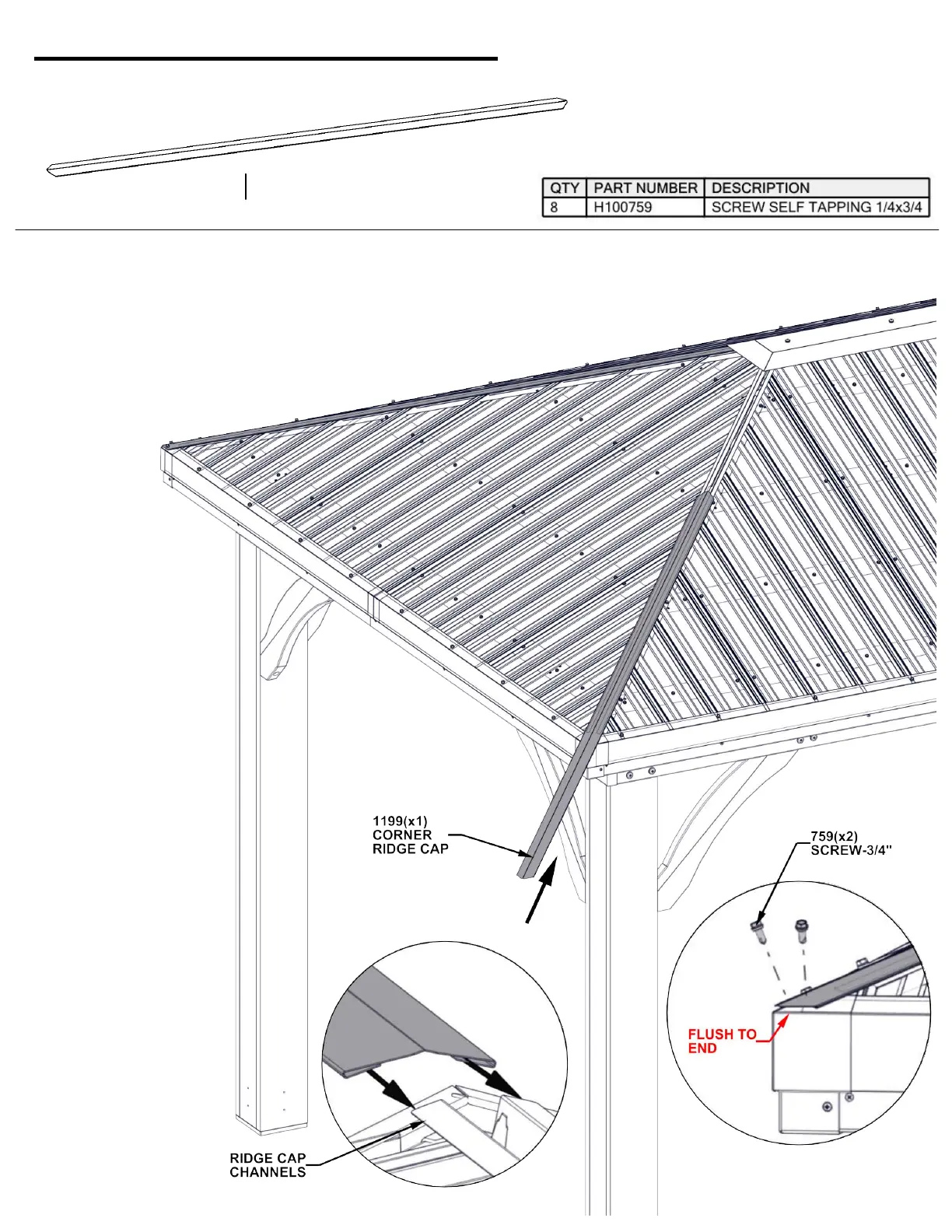

STEP 40 - ROOF ASSEMBLY
CORNER RIDGE CAP
(4)
A4M01199
TIPS:
• SLIDE CORNER RIDGE CAP ONTO ROOF RIDGE CAP CHANNEL AS SHOWN.
• DO NOT PUSH ALL THE WAY TO THE TOP. FLUSH WITH CORNER OF GAZEBO AS SHOWN.
• REPEAT ON ALL CORNERS.
67
