Backyard Discovery 37113 - Page 28

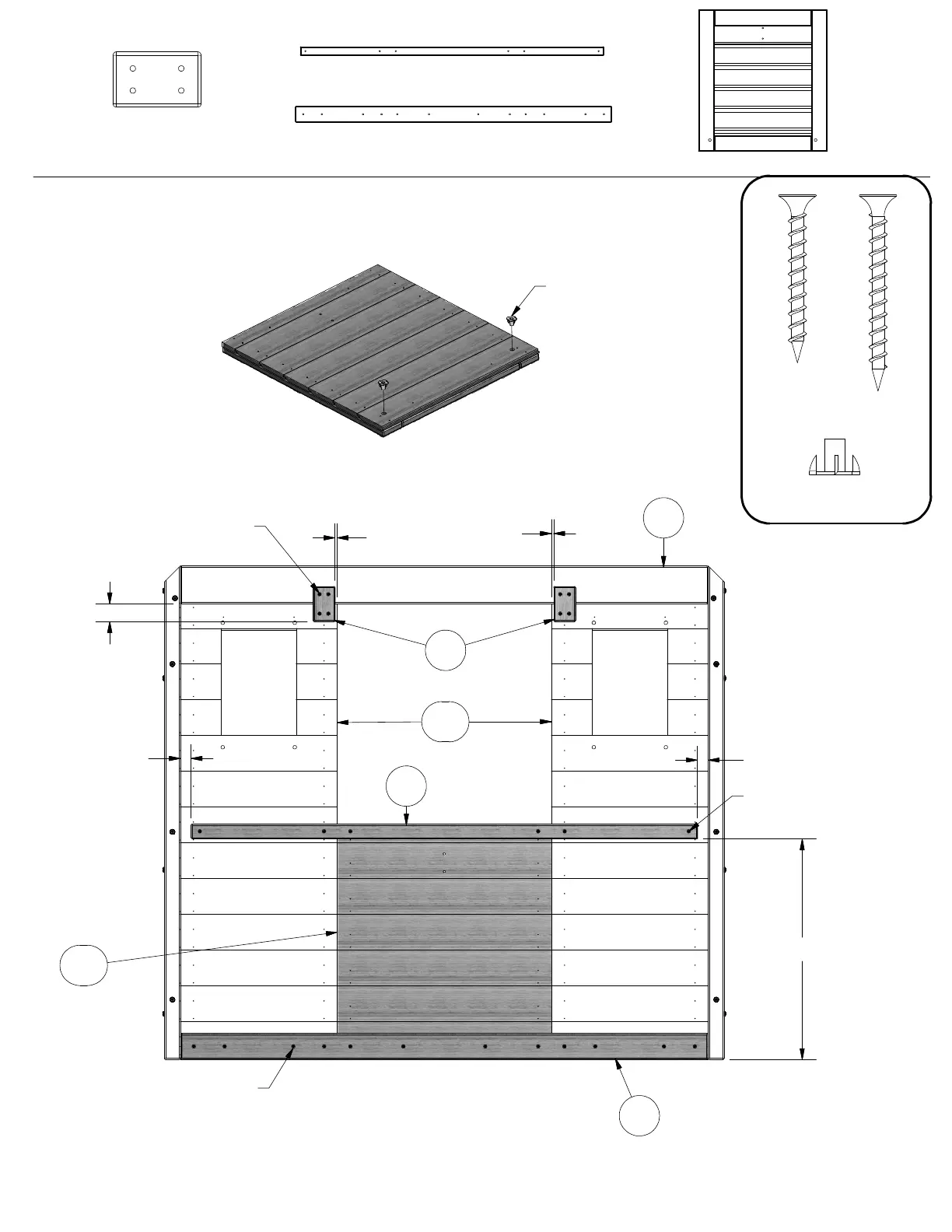

STEP 10
SCREW PFH
8x1-1/2
(20)
LEFT SIDE CENTER ASSEMBLY
3/16"
3/16"
15/16"
15/16"
19 11/16"
SCREW PFH 8x1-1/2
(12 PLCS)
SCREW PFH 8x1-3/4
(6 PLCS)
SCREW PFH 8x1-1/2
(8 PLCS)
N4
T4
WP3
N1
WP4
H1
SCREW PFH
8x1-3/4
(6)
N4 - TIE STRAP - W102424
5/8"x2"x3 1/8" (16x50x80)
(2)
N1 - WALL CLEAT - W103334
5/8"x2 3/8"x47 1/8" (16x60x1197)
(1)
T4 - TIE STRAP - W103339
1"x1 3/8"x45 1/4" (24x34x1149)
(1)
(1) WP3 - MIDDLE SIDE PANEL - W103333
T-NUT 5/16
(2 PLCS)
T-NUT 5/16
(2)
TOP
1 9/16"
