Backyard Discovery 37113 - Page 30

STEP 12

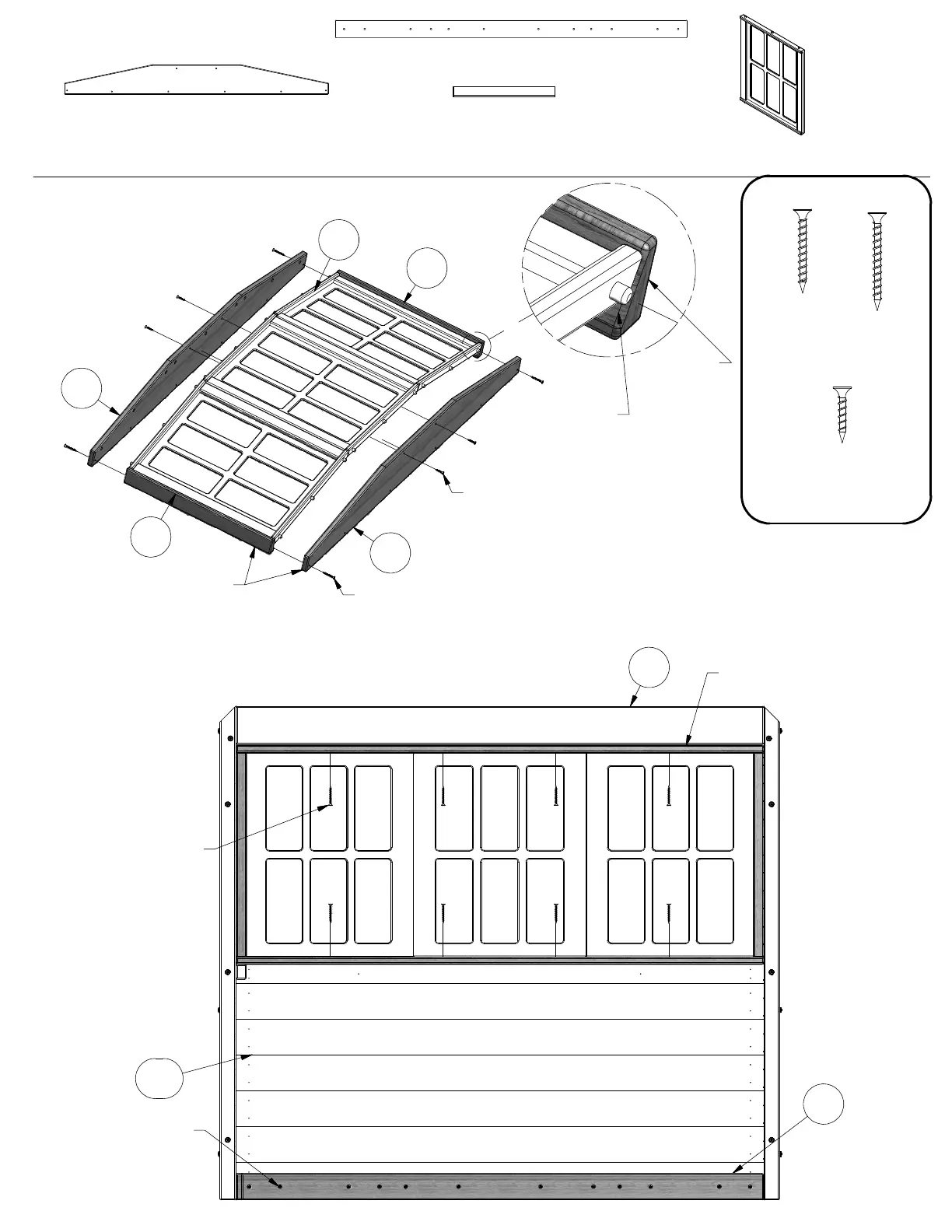

BAY WINDOW ASSEMBLY
SCREW PFH
8x1-3/4
(8)
SCREW PFH
8x1-1/2
(16)
SCREW PFH 8x1-1/2
(4 PLCS)
K3
K3
J1
J1
WH
WP8
H1
BAY WINDOW ASSEMBLY
SCREW PFH 8x1-3/4
(8 PLCS)
K3 - BAY WINDOW HEADER - W103288
5/8"x5 1/4"x47 1/8" (16x134x1198)
(2)
J1 - BAY WINDOW SIDE - W103289
1"x1 7/8"x18 1/4" (24x48x464)
(2)
WH - BAY WINDOW PANEL - A100373
(3)
SCREW PFH 8x1-1/2
(12 PLCS)
N1
N1 - WALL CLEAT - W103334
5/8"x2 3/8"x47 1/8" (16x60x1197)
(1)
SCREW PFH
8x1
(4)
SCREW PFH 8x1
(4 PLCS)
BEVELED EDGE
INSIDE
OUTSIDE
SURFACE
STRAIGHT
OUTSIDE SURFACES
TO BE FLUSH
