Backyard Discovery 6411 - Frame Assembly - Phase I; Phase I: Initial Frame Construction

Frame Assembly
Phase 1
Phase Notes
• Assemble with hardware as shown.
Hardware needed:
• (8) E - NUT BARREL WH 5/16x1-3/4 - H100007
• (8) AD - WASHER LOCK EXT 12x19 - H100031
• (4) AC - WASHER LOCK EXT 8x19 - H100030
• (4) M - BOLT WH 5/16x2-1/2 - H100014
• (4) R - BOLT WH 5/16x3-1/2 - H100018
Parts needed:
• (2) B1 - POST - W101671
• (1) H1 - BEAM SUPPORT - W101716
• (1) H4 - GROUND BOARD - W101672
• (2) H14 - FLOOR BOARD SUPPORT - W101702

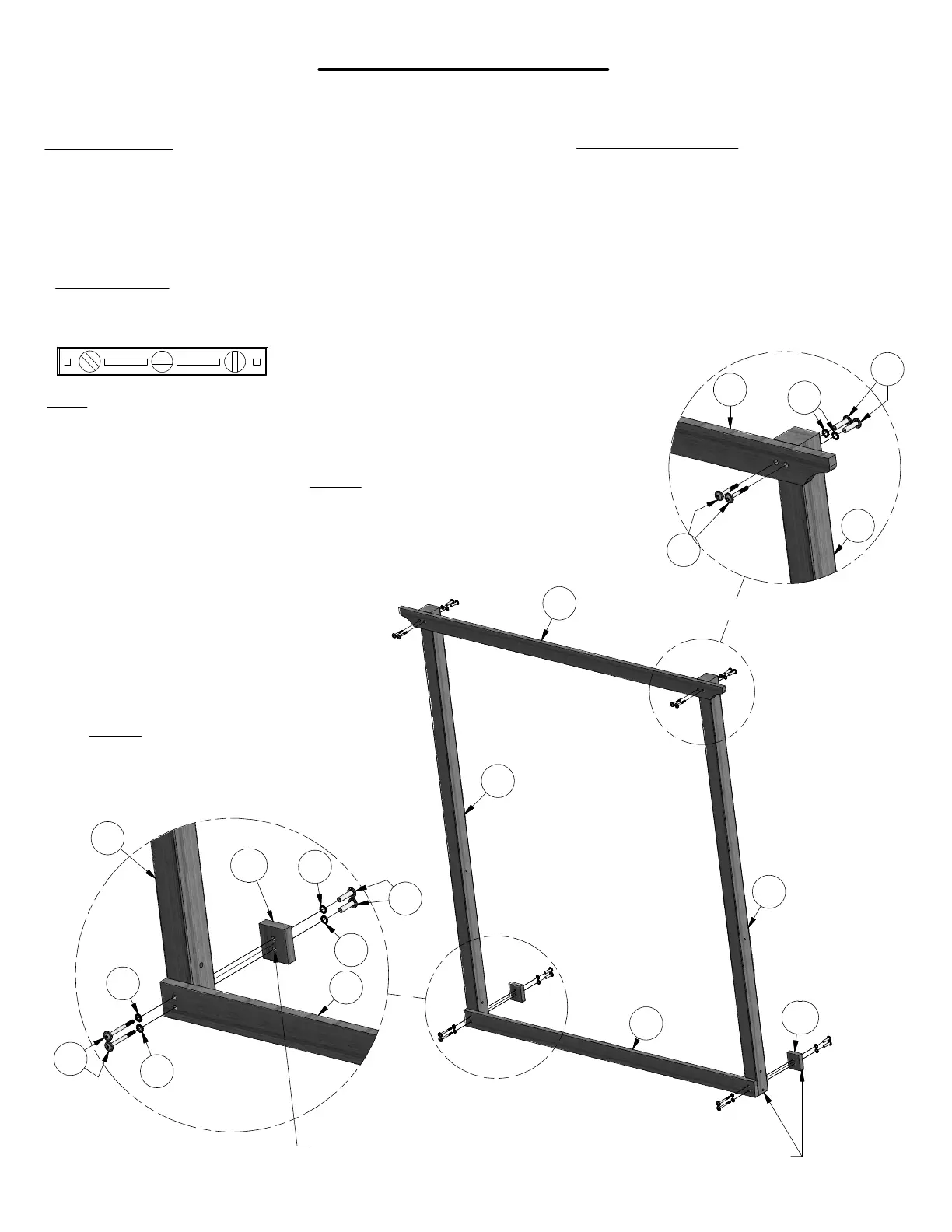

Step 1:
Attach 'H1' Beam Support to
'B1' Post using hardware 'E' Nut Barrel,
'AD' Washers and 'M' Bolt, as shown.
H14
B1
H4
R
AC
AC
AD
E
AD
H4
B1
H14
B1
H1
H1
B1
Step 2:
Attach 'H4' Ground Board and
'H14' Floor Ground Support to 'B1' Post
using hardware 'E' Nut Barrel, 'AD' &
'AC' Washers and 'R' Bolt, as shown.
Note: It is vital that the structure
be level before and after each
phase of assembly.
These two outside surfaces should
flush when installing any 'H14' Floor
Board Support.
AD
E
M
Enlarge holes located in
'H14' floor board support
using a 7/16" drill bit for
ease of assembly.
