Backyard Discovery 9198012 - Page 20

Phase 2

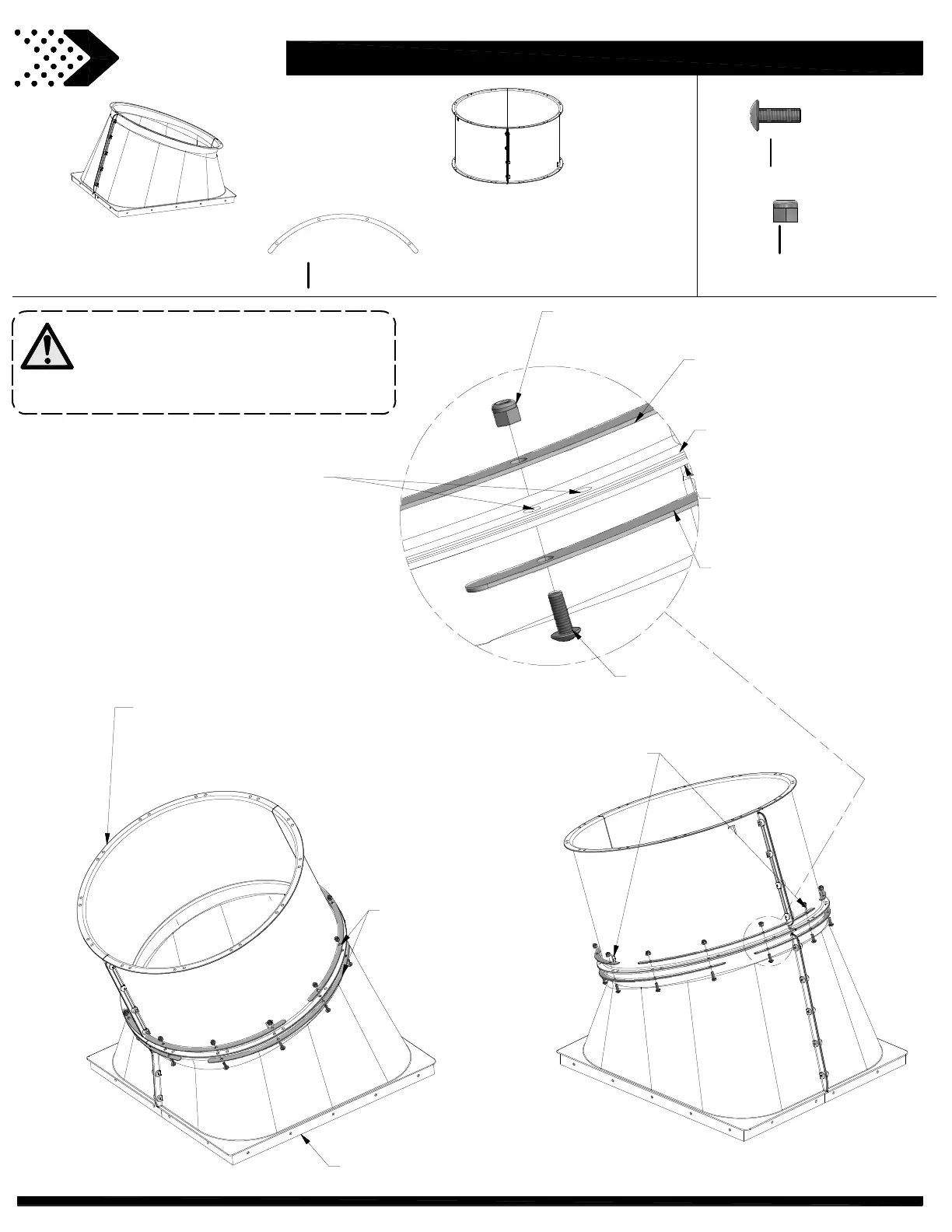

STEP 1
996 (x2)
TUBE SLIDE BRACKET
ENTRANCE SUB-ASSEMBLY
B
O
T
T
O
M
BOLT PTH WZ
1/4x3/4
(x12)
H100769
NUT LOCK WZ
1/4
(x12)
H100148
TUBE SLIDE BRACKET
(x6)
A4M00996
(1)-ENTRANCE SUB-ASSEMBLY
(1)-STRA
IGHT TUBE SUB-ASSEMBLY
T
O
P
STRAIGHT TUBE SUB-ASSEMBLY
148 (x12)
NUT - 1/4"
769 (x12)
BOLT - 3/4"
996 (x3)
TUBE SLIDE BRACKET
996 (x3)
TUBE SLIDE BRACKET
STRAIGHT TUBE FLANGE
ENTRANCE TUBE FLANGE
NOTE:
THIS SECTION ASSEMBLY USES
BRACKET CONFIGURATION 'A'
SHOWN IN REFERENCE PAGE.
NOTE THE "R" AND THE "L" MARKINGS
TO AID THE POSITIONING THE
METAL BRACKETS
NOTE HOLE ORIENTATION
20
