Backyard Discovery 9198012 - Page 23

Phase 2
STEP 4
TUBE SLIDE BRACKET
(x6)
A4M00996
BOLT PTH WZ
1/4x3/4
(x12)
H100769
NUT LOCK WZ
1/4
(x12)
H100148

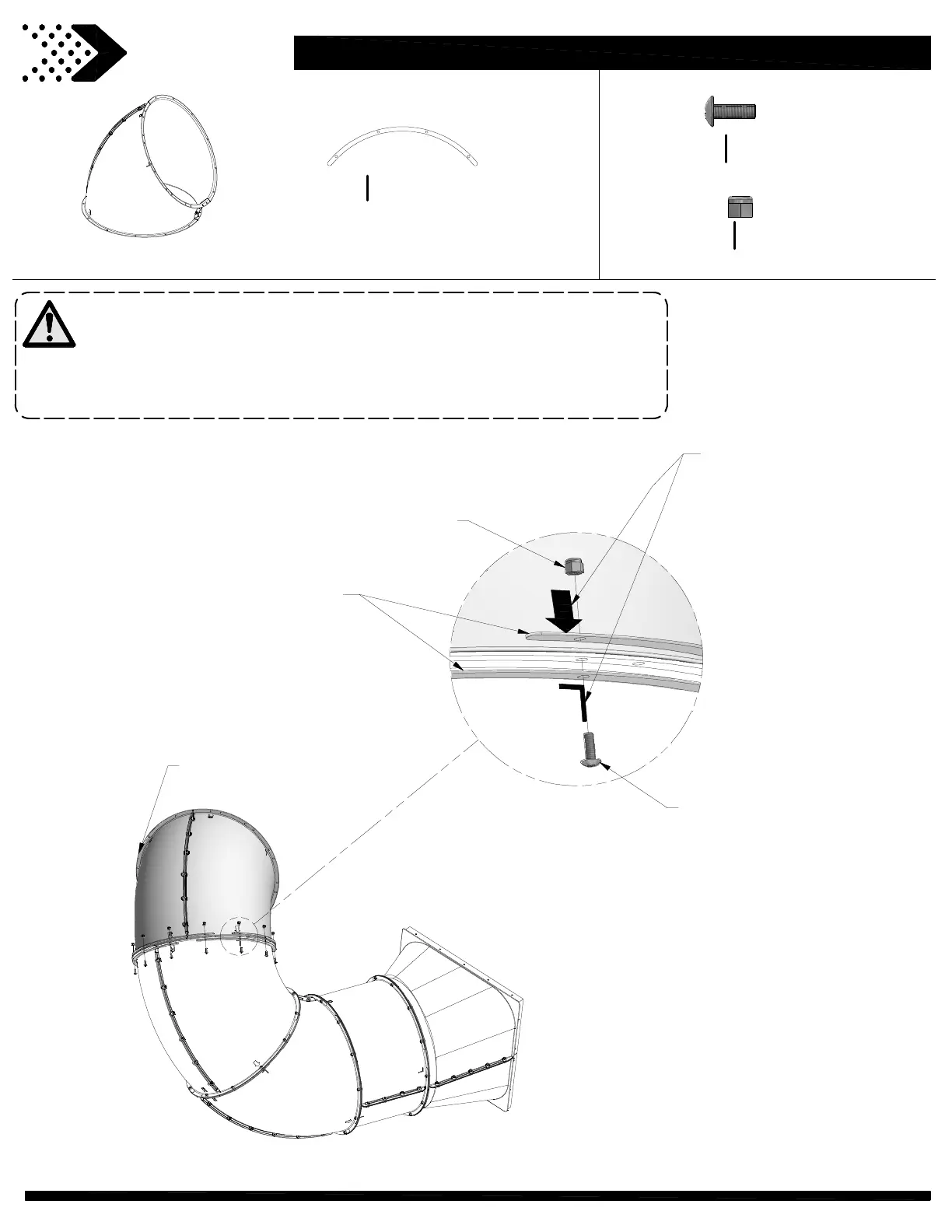

• ALIGN THE 'L' AND THE 'ARROW' TO ACHIEVE THE
PROPER
POSITION WHEN ASSEMBLING THE SLIDE.
• NOTE THIS SECTION ASSEMBLY USES CONFIGURATION
'B' SHOWN IN THE REFERENCE PAGE.
(1)-ELBOW TUBE SUB-ASSEMBLY
NOTE:NOTE:
ELBOW TUBE SUB-ASSEMBLY
NOTE THE "L" AND "ARROW"
MARKINGS TO AID IN
POSITIONING THE METAL
BRACKETS.
996 (x6)
TUBE SLIDE BRACKET
769 (x12)
BOLT - 3/4"
148 (x12)
NUT - 1/4"
23
