Backyard Discovery 9198012 - Page 24

Phase 2

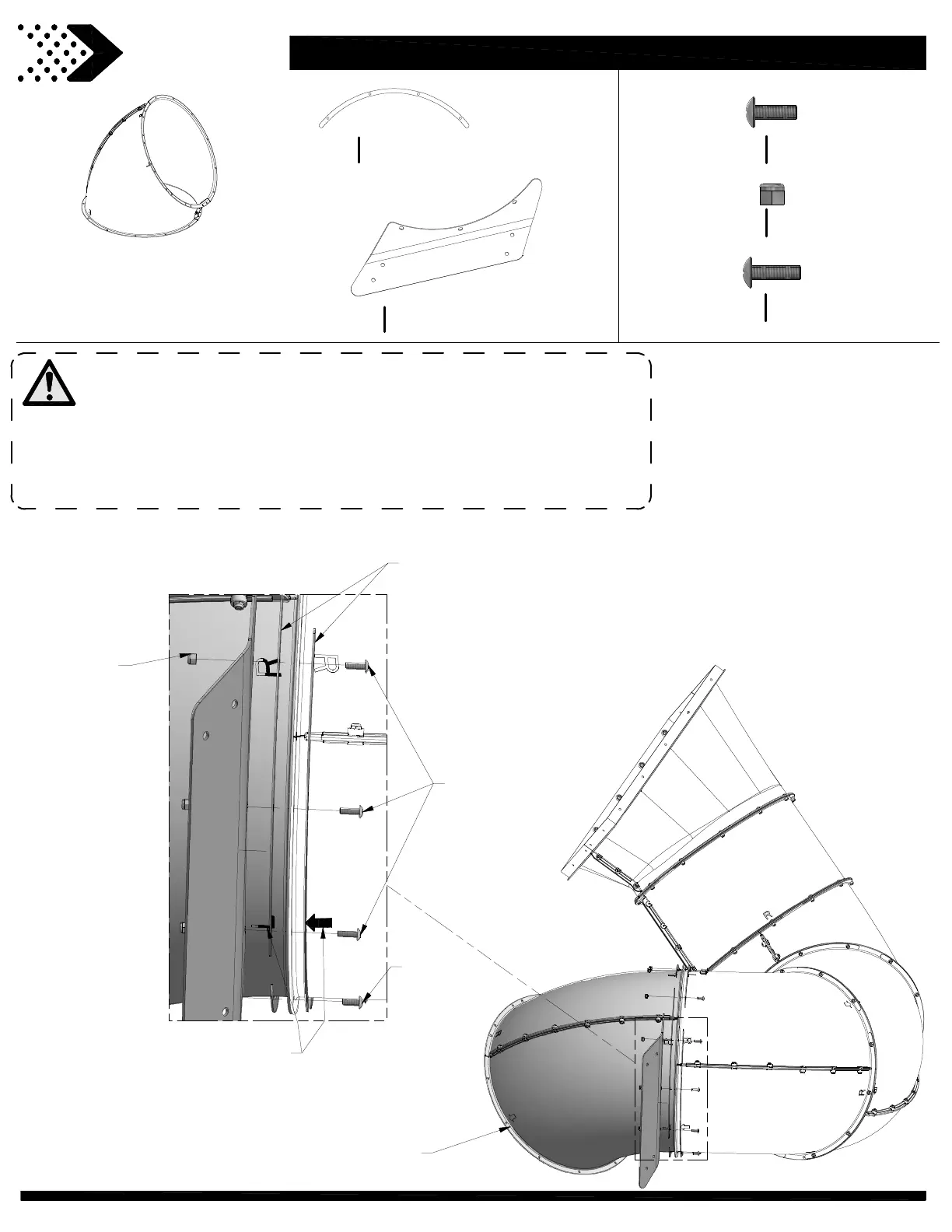

STEP 5
TUBE SLIDE BRACKET
(x6)
A4M00996
BOLT PTH WZ
1/4x3/4
(x9)
H100769
NUT LOCK WZ
1/4
(x12)
H100148
(1)-ELBOW TUBE SUB-ASSEMBLY
BOLT PTH WZ
1/4x7/8
(x3)
H100795
996 (x6)
TUBE SLIDE BRACKET
NOTE THE "L" AND "ARROW"
MARKINGS TO AID IN
POSITIONING THE METAL
BRACKETS.
ELBOW TUBE SUB-ASSEMBLY
769 (x9)
BOLT - 3/4"
795 (x3)
BOLT - 7/8"
148 (x12)
NUT - 1/4"
• ALIGN THE 'L' AND THE 'ARROW' TO ACHIEVE THE
PROPER
POSITION WHEN ASSEMBLING THE SLIDE.
• NOTE THIS SECTION ASSEMBLY USES CONFIGURATION
'B' SHOWN IN THE REFERENCE PAGE.
• NOTE THE (3) BOLTS USED TO ASSEMBLE THE SLIDE
BRACKET ARE 7/8", NOT 3/4".
NOTE:
TUBE SLIDE BRACKET - LH
(x1)
A4M01002
24
