Phase 3

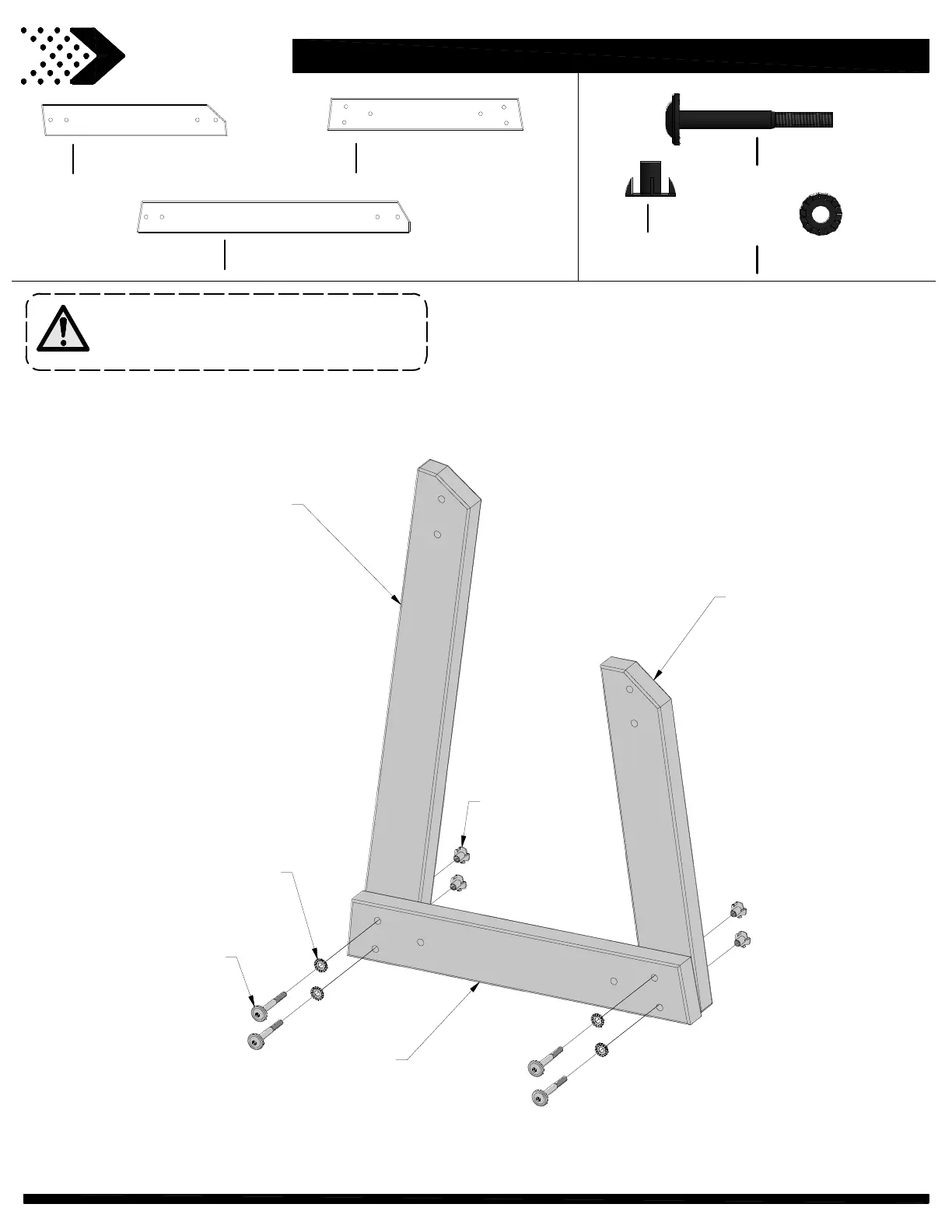

STEP 1
UPRIGHT - W4L12583
1 3/8"x3 3/8"x19 7/8" (36x86x505)
E85
(x1)
GROUND BOARD - W4L12585
1 3/8"x3 3/8"x21" (36x86x533)
E87
(x1)
UPRIGHT - W4L12584
1 3/8"x3 3/8"x29 1/4" (36x86x743)
E86
(x1)
T-NUT BLK
5/16
(x4)
H100379
BOLT WH BLK
5/16x2-3/4
(x4)
H100195
WASHER LOCK EXT BLK
8x19
(x4)
H100198
NOTE:
HAMMER T-NUTS INTO PROVIDED
HOLES AS SHOWN
E87 (x1)
GROUND BOARD
379 (x4)
T-NUT - 5/16"
E86 (x1)
UPRIGHT
E85 (x1)
UPRIGHT
195 (x4)
BOLT - 2-3/4
198 (x4)
WASHER - 8x19
