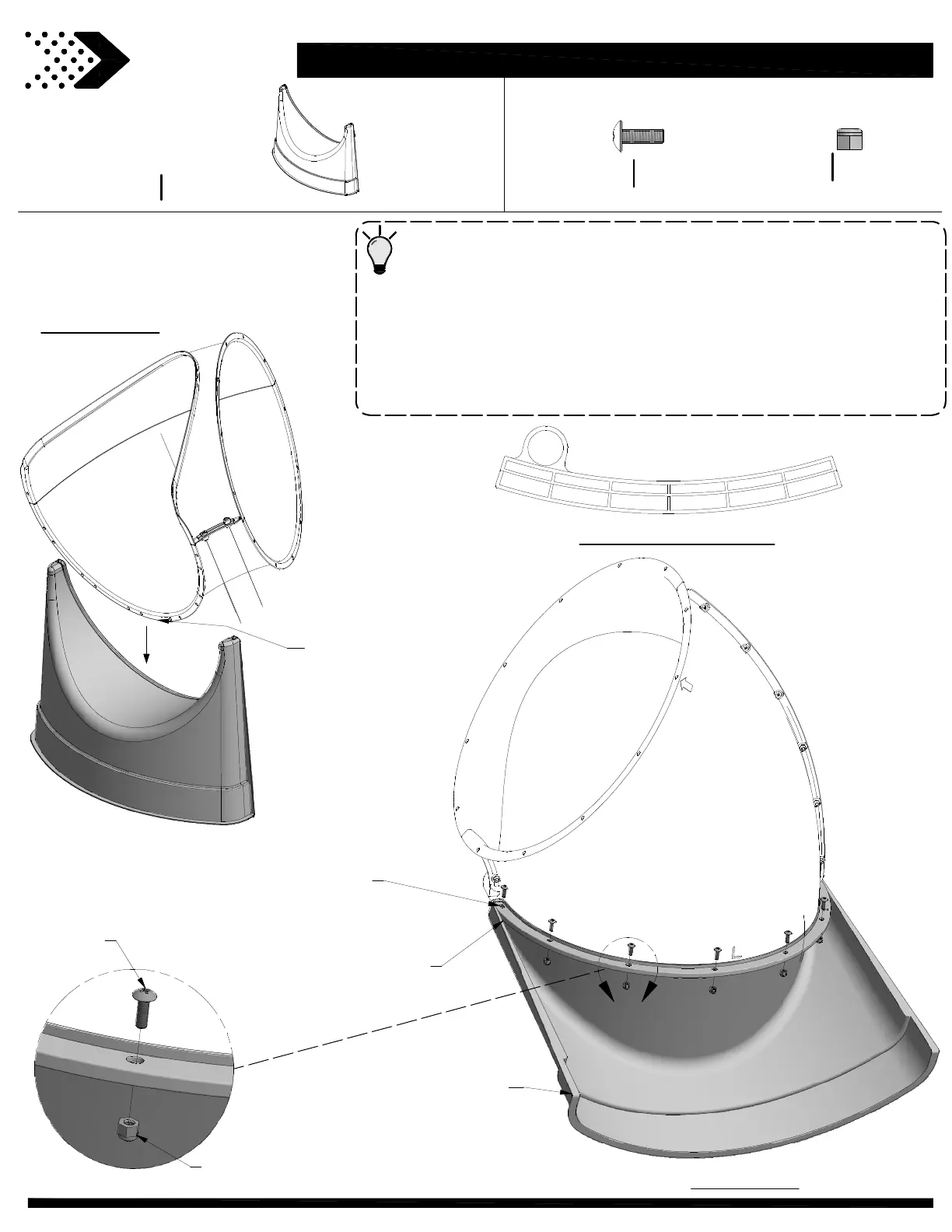

STEP 4
Phase 1
BACK VIEW
SLIDE INTO GROOVE
ON EXIT SUPPORT.
TIP:
•
RECOMMENDED BOLT ASSEMBLY ORDER,
CLOCKWISE FROM TOP RIGHT.
•
MAKE SURE THE 'ARROW' ON THE EXIT SUPPORT IS
ALIGNED WITH THE 'R' ON THE SLIDE ELBOW.
•
USE A SCREW DRIVER TO ALIGN HOLES.
•
WHEN REMOVING SPACER, BEGIN ALIGNMENT OF
TUBE SLIDE OPENING FOR EASIER ASSEMBLY.
EXIT SUPPORT
(x1)
A6P00302-6R
BOLT PTH WZ
1/4x3/4
(x7)
H100769
NUT LOCK WZ
1/4
(x5)
H100148
FRONT VIEW
TUBE SLIDE SPACER
START ALIGNMENT
OF HOLES FROM
THE TOP LEFT.
FACTORY INSTALLED
NUT.
(BOTH CORNERS)
148
(x5)
NUT - 1/4"
769
(x7)
BOLT - 3/4"
302-6R
(x1)
EXIT SUPPORT
To Next Page
