Backyard Discovery 9198074 - Step 2: Elbow Tube Brackets

Phase 2

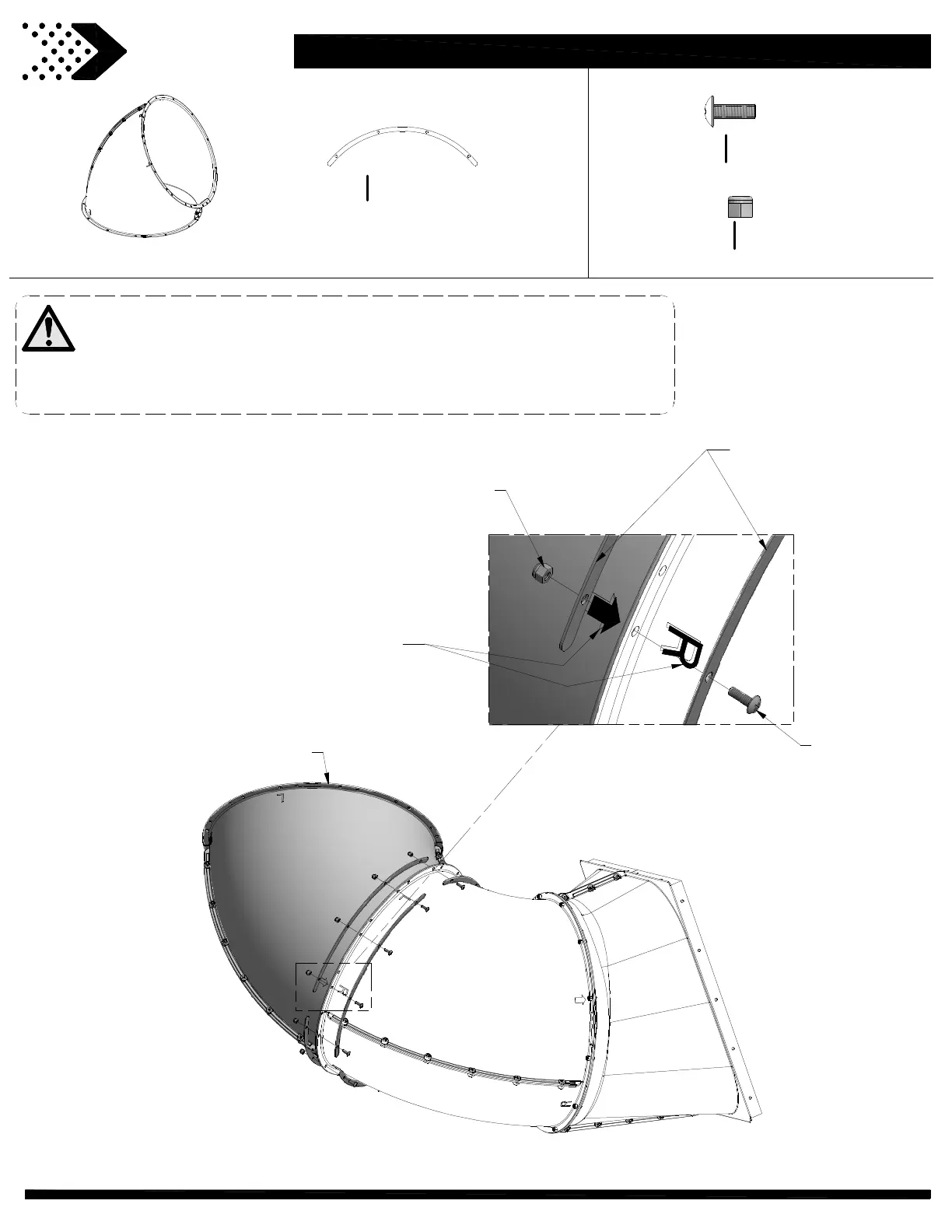

STEP 2
TUBE SLIDE BRACKET
(x6)
A4M00996
BOLT PTH WZ
1/4x3/4
(x12)
H100769
NUT LOCK WZ
1/4
(x12)
H100148
• ALIGN THE 'R' AND THE 'ARROW' TO ACHIEVE THE
PROPER POSITION WHEN ASSEMBLING THE SLIDE.
• NOTE THIS SECTION ASSEMBLY USES CONFIGURATION
'B' SHOWN IN THE REFERENCE PAGE.
NOTE:
148 (x12)
NUT - 1/4"
ELBOW TUBE SUB-ASSEMBLY
(1)-ELBOW TUBE SUB-ASSEMBLY
996 (x6)
TUBE SLIDE BRACKET
NOTE THE "R" AND "ARROW"
MARKINGS TO AID IN
POSITIONING THE METAL
BRACKETS.
769 (x12)
BOLT - 3/4"
