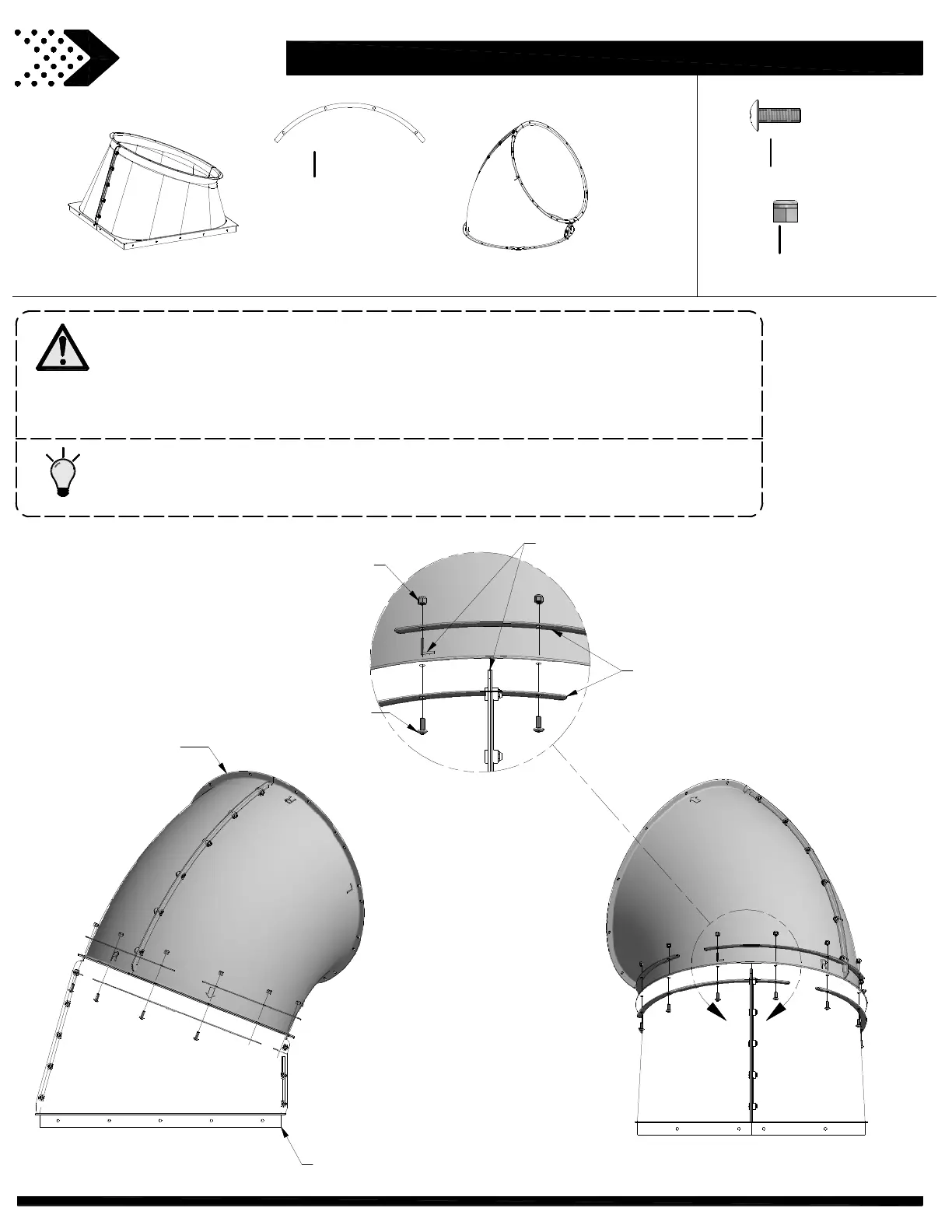

Phase 2
STEP 1
LEFT SIDE VIEW
BOLT PTH WZ
1/4x3/4
(x12)
H100769
NUT LOCK WZ
1/4
(x12)
H100148
TUBE SLIDE BRACKET
(x6)
A4M00996
(1)-ENTRANCE SUB-ASSEMBLY
(1)-STRAIGHT TUBE SUB-ASSEMBLY
TOP VIEW
NOTE:
ENTRANCE SUB-ASSEMBLY
"L" TO LEFT OF SEAM
996
(x6)
TUBE SLIDE BRACKET
ELBOW TUBE
SUB-ASSEMBLY
148
(x12)
NUT - 1/4"
769
(x12)
BOLT - 3/4"
•
USE A SCREW DRIVER TO ALIGN HOLES.
TIP:
• ALIGN THE 'L' ONE HOLE TO THE LEFT OF SEAM TO ACHIEVE THE
PROPER POSITION WHEN ASSEMBLING THE SLIDE.
•
NOTE THIS SECTION ASSEMBLY USES CONFIGURATION 'A' SHOWN
IN THE REFERENCE PAGE.
