Backyard Discovery ATLANTIS - Page 22

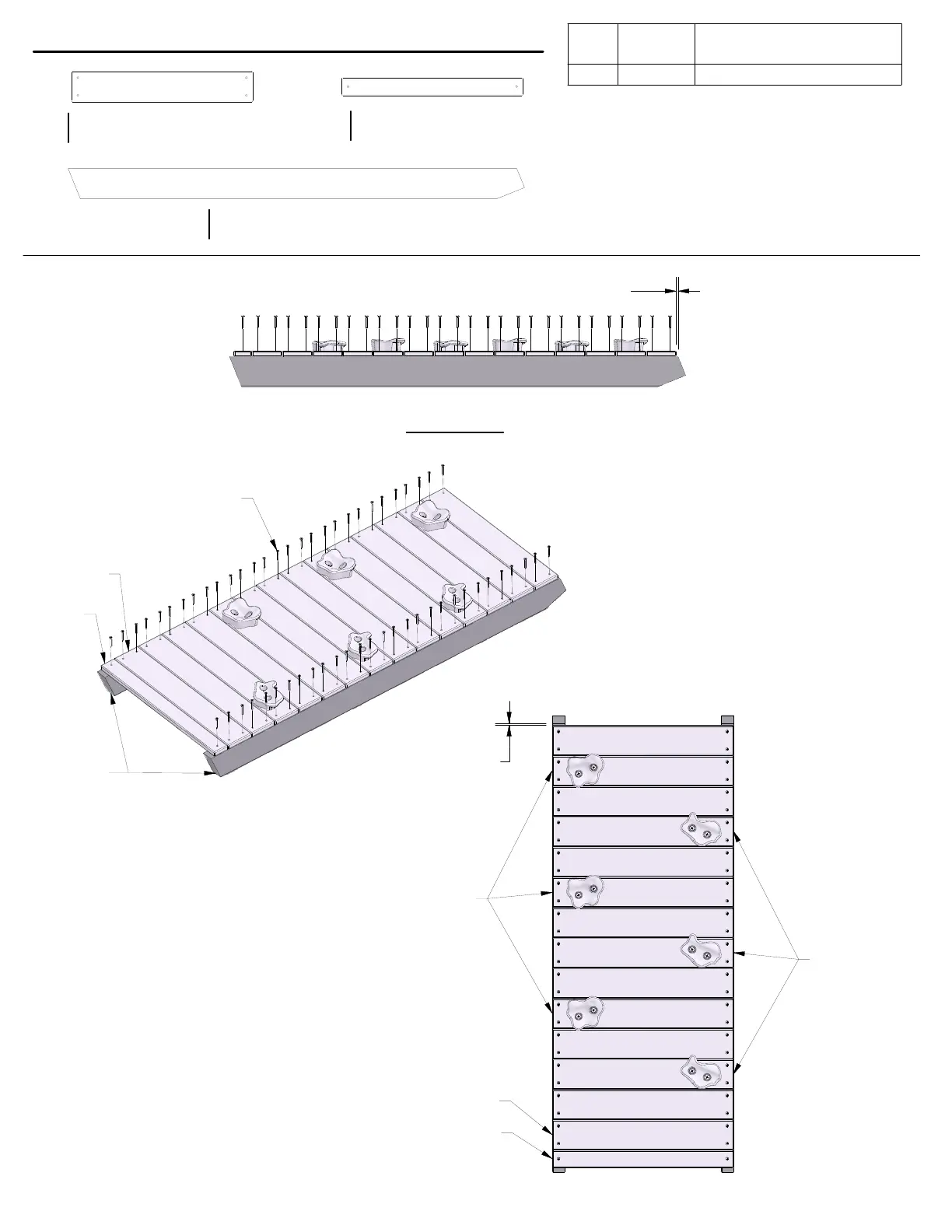

STEP 2 - ROCK WALL ASSEMBLY
QTY
PART
NUMBER
DESCRIPTION
58 H100086
SCREW PFH 8x1-1/2"
086 (x58)
SCREW - 1 1/2"
M26 (x8)
E30 (x2)
1/4 in [5 mm]
SIDE VIEW
TOP
(3) LEFT ROCK
ASSEMBLY
(3) LEFT ROCK
ASSEMBLY
TOP
RECOMMENDED BOARD
PLACEMENT PATTERN
1/4 in [5 mm]
M26 (x8)
ROCK WALL BOARD - W4L16272
5/8"x3 3/8"x20 1/4" (16x86x514)
M26
(x8)
ROCKWALL RAIL - W4L16273
1 3/8"x3 3/8"x51" (36x86x1294)
E30
(x2)
ROCK WALL BOARD - W4L16820
5/8"x2"x20 1/4" (16x50x514)
N10
(x1)
N10 (x1)
N10 (x1)
22
